in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
110x2x2.3cmWeight:
0.14kgCountry of Origin: :
USADescription:

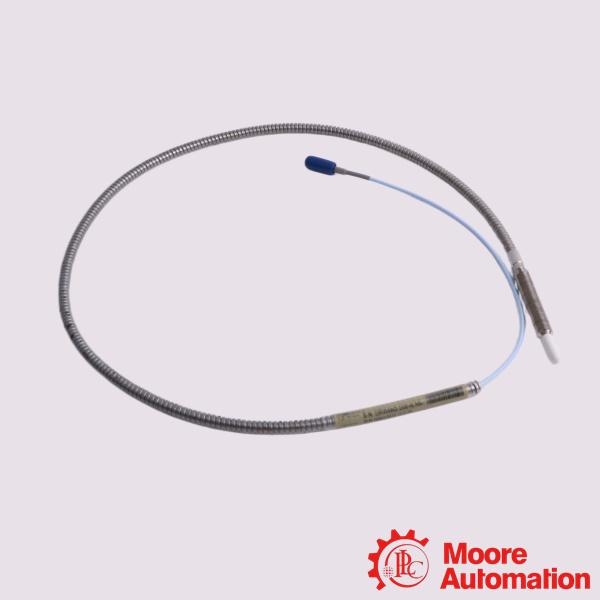

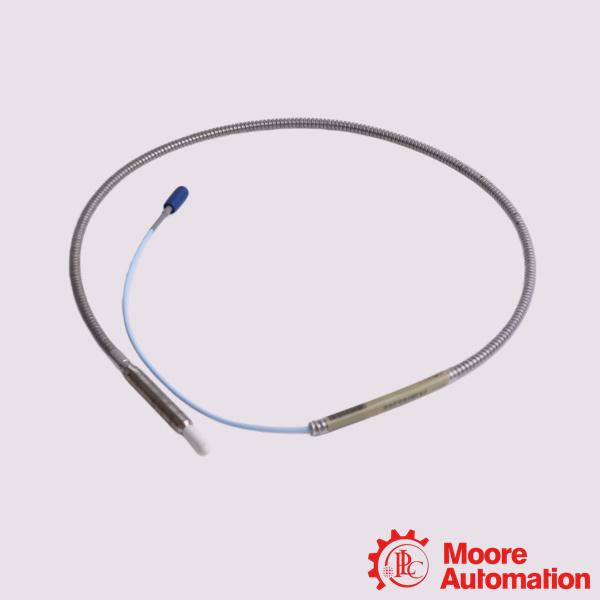

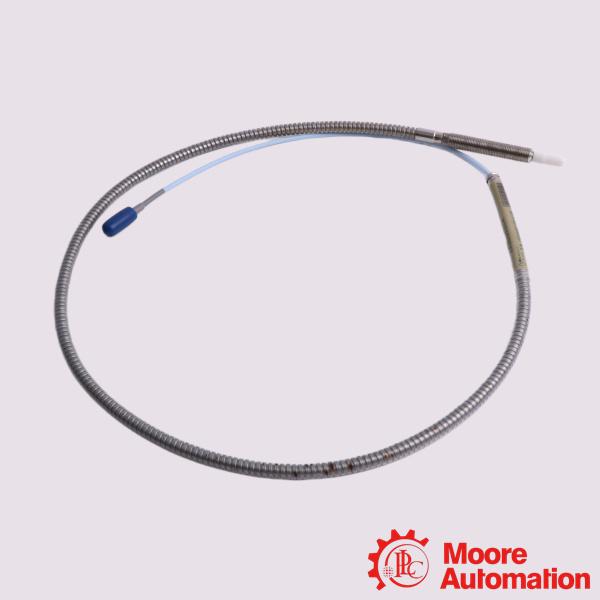

Bently Nevada 330910-00-14-05-01-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330910-00-14-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330910-00-14-05-01-CN is an eddy-current proximity probe from the 3300 XL NSv series to target industrial machinery monitoring applications with confined spatial geometries or small measurement targets. Because of its specialized narrow side-view (NSv) characteristics, its target industrial applications focus heavily on precision monitoring in tight spaces where standard 5 mm or 8 mm probes will not fit.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
Application:
Centrifugal Air Compressors: Extensively deployed to monitor fluid-filmed bearings where tight internal counterbores limit standard sensor placement.
Refrigeration Compressors: Used in industrial chilling and freezing plants for real-time critical component monitoring.
Process Gas Compressors: Ideal for high-stakes oil, gas, and chemical processing environments that demand continuous machinery protection.
Small-Diameter Turbo-Machinery: Specifically optimized to measure radial vibration on small shafts under 51 mm (2 inches) or axial position on flat targets under 15 mm (0.6 inches).
Frequently Asked Questions (FAQ)
Q:How do I perform a basic continuity/health check on the probe cable?
A:You can check the probe's electrical status using a standard digital multimeter. “set the multimeter to resistance mode. and check for continuity. between the cable jacket.
Q:What is the linear range of this probe?
A:The linear measurement range begins at approximately 0.25 mm (10 mils) away from the target surface. If you mount the probe on shaft diameters smaller than 13 mm (0.5 inches), you should expect variations in the scale factor and adjust the gap setup to mitigate errors.
Q:Is this probe backward-compatible with older systems?
A:Yes. “the 3300 NSv probe is mechanically and electrically interchangeable with 3300 RAM probes.” as noted by Nexera PLC. It can also replace 3000-series or 7000-series 190 transducer systems.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330910-00-14-05-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
140 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
