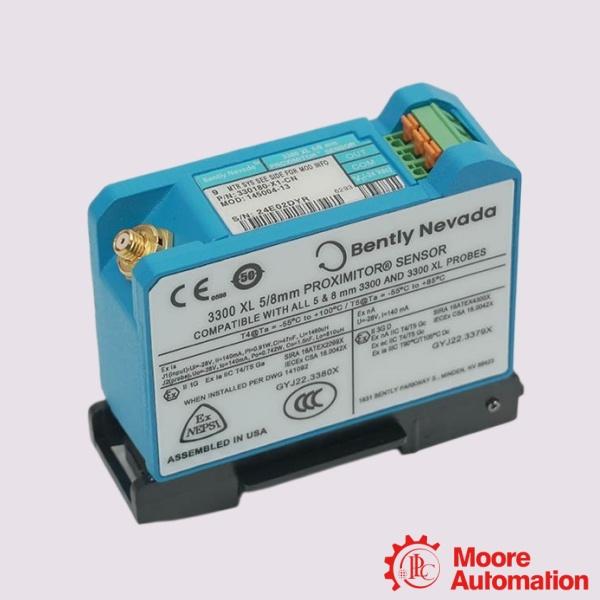

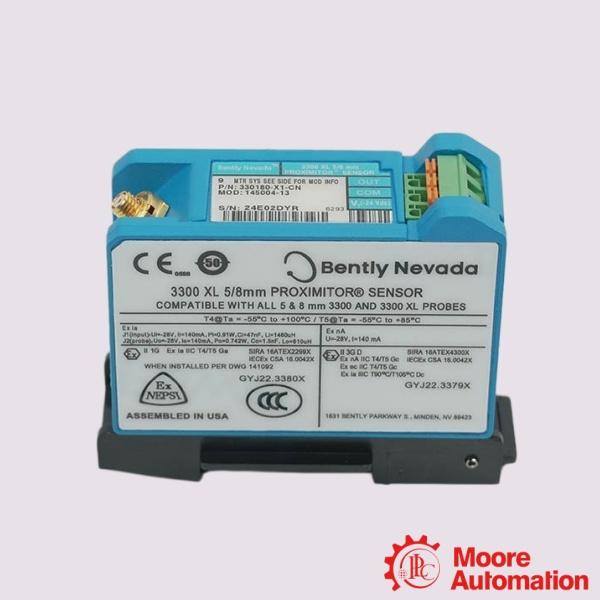

Bently Nevada 330180-X1-05 MOD:145004-94 3300 XL 8 mm Proximitor Sensor

Description

The Bently Nevada 330180-X1-05 MOD:145004-94 3300 XL Proximitor Sensor provides signal conditioning for the 3300 XL 8 mm Proximity Transducer System. The sensor works with a compatible 3300 XL proximity probe and extension cable to convert eddy current measurement signals into proportional voltage outputs, allowing monitoring systems to measure shaft vibration, shaft position, and displacement changes on rotating machinery. The 330180-X1-05 configuration features a DIN rail mounting design and is part of the 3300 XL Proximitor Sensor family developed for continuous machinery monitoring applications. It receives the electrical signal generated by the proximity probe according to the distance between the probe tip and the conductive shaft surface, then processes the signal into a usable output for vibration monitoring and machinery protection systems. The MOD:145004-94 configuration provides a specific calibration modification for the Proximitor Sensor, allowing the transducer system to maintain measurement accuracy when used with the corresponding target material requirements. Proper calibration between the probe, extension cable, Proximitor Sensor, and shaft material ensures reliable measurement performance in rotating equipment applications.

Parameter

Model: 330180-X1-05 MOD:145004-94 3300 XL 8 mm Proximitor Sensor
Total Length and Mounting Option: 5.0 meters (16.4 feet) system length, DIN mount
Agency Approval Option: CSA, ATEX, IECEx  Approvals
Mounting Style: 35 mm DIN Rail Mount
Supply Input Voltage: -24 Vdc (Nominal operational range: -17.5 Vdc to -26 Vdc)
Frequency Response Spectrum: 0 Hz to 10 kHz (0 to 600,000 cpm)

Frequently asked questions

Q:What is the main function of the Bently Nevada 330180-X1-05 MOD:145004-94?
A:The 330180-X1-05 MOD:145004-94 processes signals from 3300 XL 8 mm proximity probes and converts eddy current measurement signals into proportional voltage outputs for shaft vibration and position monitoring.

Q:What measurements can be performed with the 330180-X1-05 MOD:145004-94?
A:When installed as part of a complete 3300 XL proximity system, the sensor supports measurements such as radial vibration, shaft position, axial displacement, Keyphasor reference signals, and other rotor movement monitoring applications.

Q:What does MOD:145004-94 represent?
A:MOD:145004-94 identifies a specific modification configuration of the 3300 XL Proximitor Sensor. The modification provides a specific calibration setup to match the required target material characteristics for accurate proximity measurement.

Application areas

• Pumps and Rotating Equipment–Used on large rotating machines requiring non-contact shaft measurement, including pumps and other critical equipment with sleeve bearings.
• Oil and Gas Processing Equipment–Applied in machinery monitoring systems for compressors, turbines, and pumps used in oil and gas facilities where continuous condition monitoring is required.
• Petrochemical and Process Industries–Used for monitoring rotating machinery operating in continuous production environments, providing vibration and position signals for equipment protection and maintenance activities.
• Power Generation Systems–Integrated into generator and turbine monitoring applications to provide reliable shaft displacement information for machinery protection systems.
