in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
23x23x4cmWeight:
0.5kgCountry of Origin: :
USADescription:

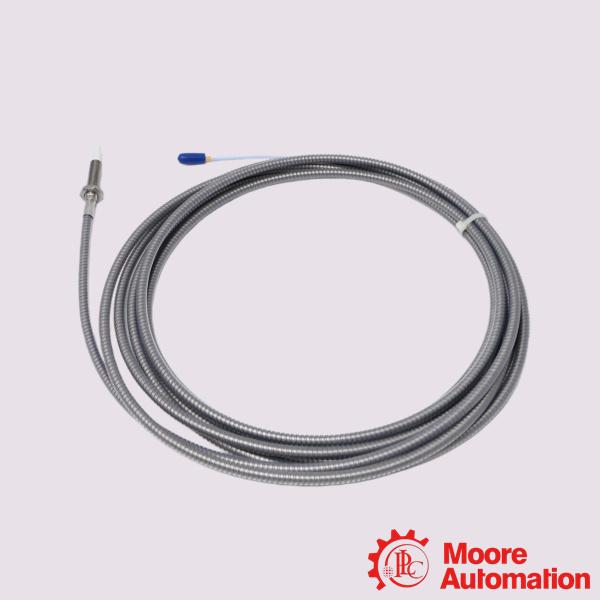

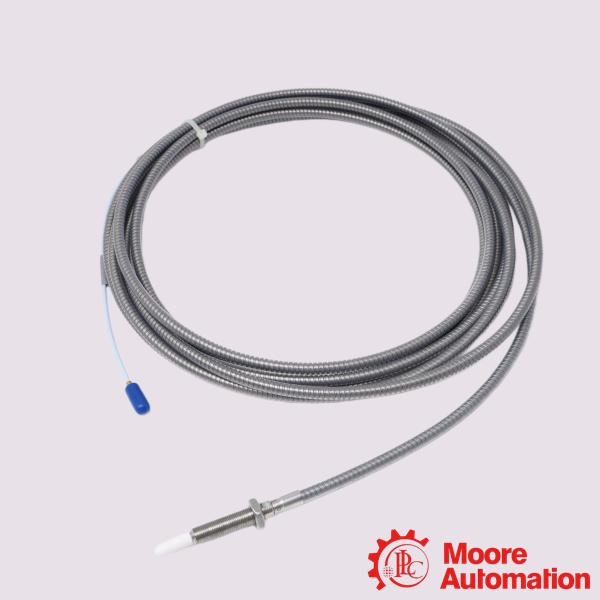

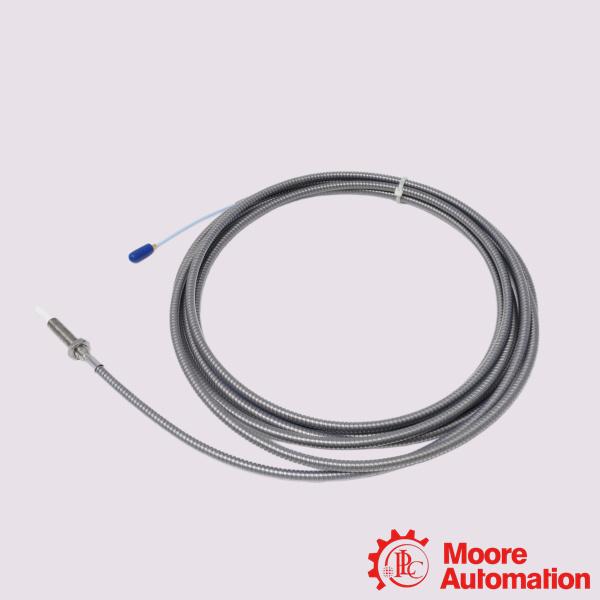

Bently Nevada 330910-00-08-05-01-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330910-00-08-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330910-00-08-05-01-CN is a 3300 XL NSv Proximity Probe for machinery with tight installation clearances, small target profiles, or side-view restrictions. Below is the part number breakdown and frequently asked questions for this specific configuration.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
Application:
Centrifugal Air Compressors: Frequently used for measuring radial vibration and axial position in cramped internal housing.
Refrigeration & Process Gas Compressors: Ideal for monitoring high-speed compressor shafts where spacing is heavily limited.
Small Shaft Machinery: Tailored for monitoring rotating machinery with shaft diameters smaller than 51 mm (2 inches).
Small Target Environments: Specifically deployed for tracking axial position on tight target faces smaller than 15 mm (0.6 inches).
Frequently Asked Questions (FAQ)
Q:Is this probe backwards compatible?
A:The 3300 NSv series is mechanically and electrically interchangeable with legacy 3300 RAM probe systems. If you are replacing a 3300 RAM probe, you can often reuse the existing extension cables and monitoring racks. Upgrading older 3000-series or 7000-series systems requires completely swapping out the probe, extension cable, and the Proximitor sensor.
Q:Can I use this probe on small shafts?
A:Yes, it is ideal for small targets. However, if the shaft diameter is under 13 mm (0.5 inches), expect changes in the scale factor. You may need to minimize error by tightening the target gap.
Q:What is the linear range and scale factor?
A:The probe system has an average scale factor of 7.87 V/mm (200 mV/mil), operating over a linear range of 0.25 mm to 1.75 mm (10 to 70 mils). Because it optimizes for tight side-views and small targets, its linear range is shorter than standard 5 mm or 8 mm proximity systems.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330910-00-08-05-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
80 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
