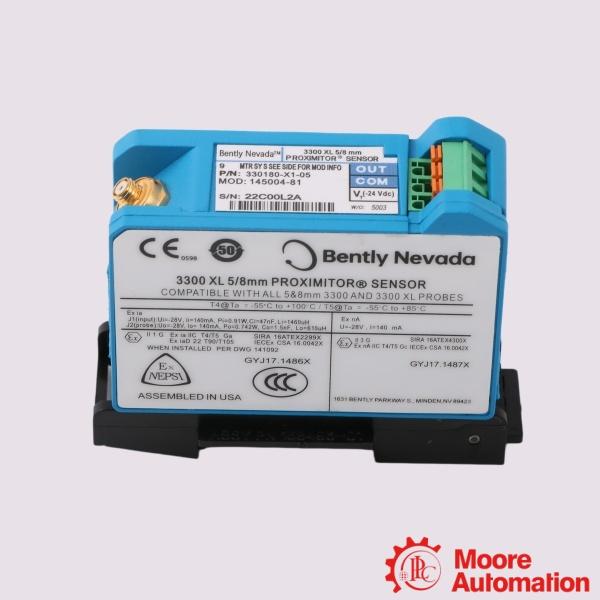

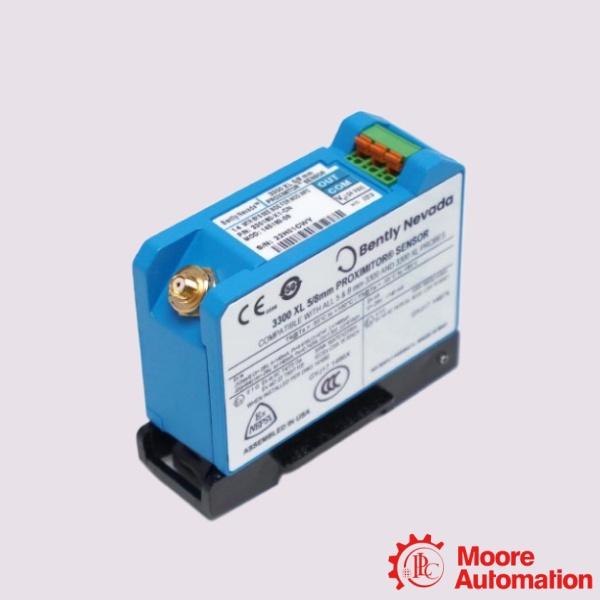

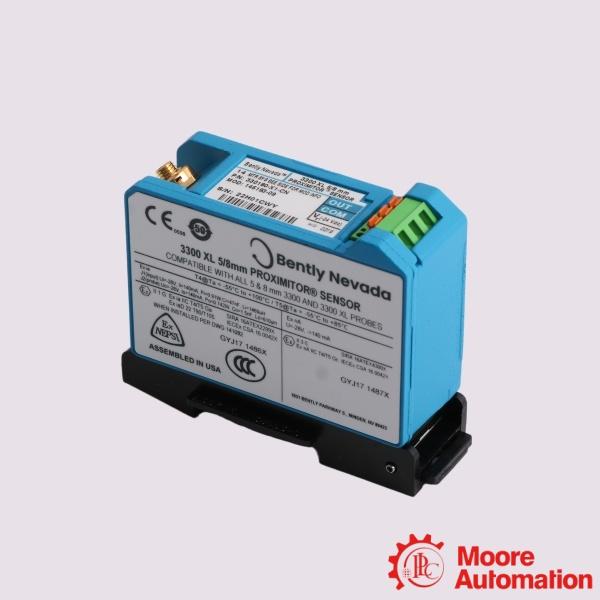

Bently Nevada 330180-X2-05 MOD:163358-02 3300 XL Proximitor Sensor

Frequently asked questions
Q:What is the main function of the 330180-X2-05 Proximitor Sensor?
A:The main function of the sensor is to process proximity probe signals and provide accurate measurement outputs for shaft vibration, shaft position, and other dynamic or static displacement monitoring requirements in rotating equipment.

Q:What measurements can be performed using the 330180-X2-05?
A:The sensor supports measurements including radial vibration, axial position, Keyphasor reference signals, and speed-related monitoring when installed as part of a complete 3300 XL proximity measurement system.

Q:What is the Bently Nevada 330180-X2-05 MOD:163358-02?
A:The Bently Nevada 330180-X2-05 MOD:163358-02 is a 3300 XL Proximitor Sensor used in the 3300 XL 8 mm Proximity Transducer System. It receives signals from a compatible proximity probe and extension cable, then converts the eddy current measurement signal into a proportional voltage output for machinery monitoring applications.

Description

The Bently Nevada 330180-X2-05 MOD:163358-02 3300 XL Proximitor Sensor is a signal conditioning module designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System. It works together with a compatible proximity probe and extension cable to provide accurate non-contact measurement of shaft vibration, shaft position, and rotational speed parameters in critical rotating machinery applications. The sensor converts the impedance changes generated by the eddy current probe into a proportional voltage output, allowing monitoring systems to accurately evaluate dynamic vibration signals and static position measurements. The 330180-X2-05 configuration belongs to the 3300 XL Proximitor Sensor family and provides reliable signal processing performance for machinery protection and condition monitoring systems. The design provides stable operation with excellent repeatability and long-term measurement reliability for demanding industrial environments. With its multiple agency approval option (-05), the 330180-X2-05 is suitable for installation requirements where certified equipment is required.

Parameter

Model: 330180-X2-05 MOD:163358-02 3300 XL Proximitor Sensor
Total Length and Mounting Option: 5.0 meters (16.4 feet) system length, no mounting hardware
Agency Approval Option: 05-CSA, ATEX, IECEx  Approvals
Input Voltage: -24 Vdc (Range: -17.5 Vdc to -26 Vdc)
Humidity Resistance: 100% Relative Humidity
Frequency Response: 0 Hz to 10 kHz (0 to 600,000 cpm)

Application areas

• Steam Turbines – Used for monitoring shaft vibration, axial position, and rotor movement in turbine systems. The proximity measurement signal helps detect changes in operating conditions and supports machinery protection functions.
• Gas Turbines and Power Generation Equipment – Applied in power generation machinery where continuous monitoring of rotating components is required. The sensor provides reliable vibration and position feedback for condition monitoring systems.
• Compressors – Used on large centrifugal and process compressors to monitor shaft displacement and vibration levels, helping maintain stable operation of critical rotating equipment.
