Brand/ Manufacturer:
Bently NevadaDimensions:
1.7x1.5x115cmWeight:
0.15kgCountry of Origin: :
USADescription:

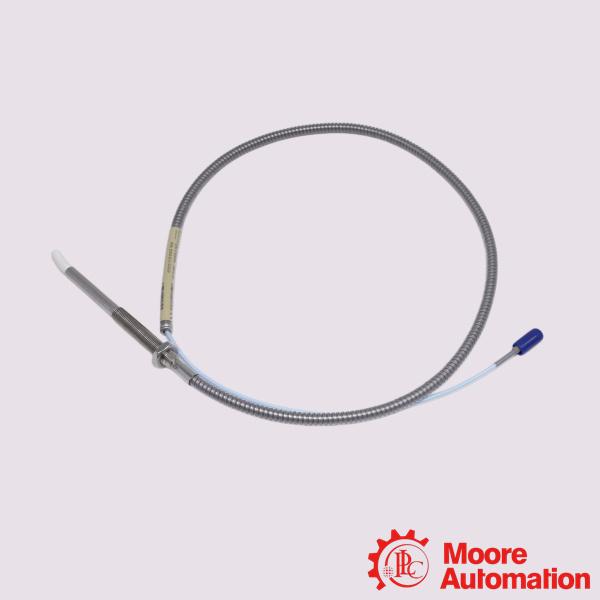

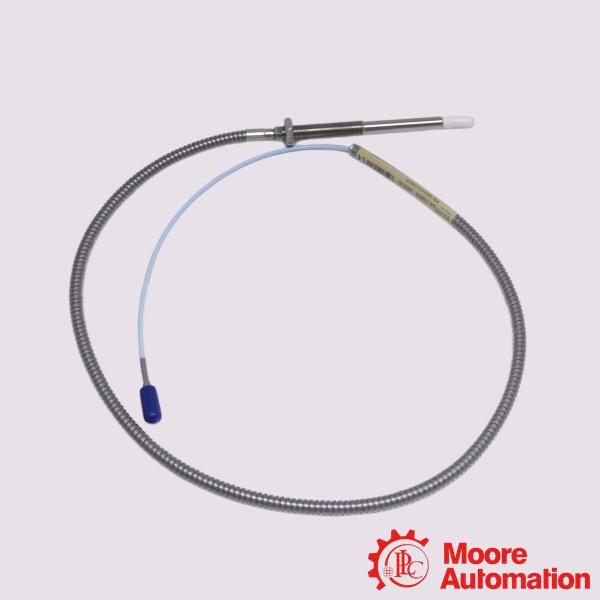

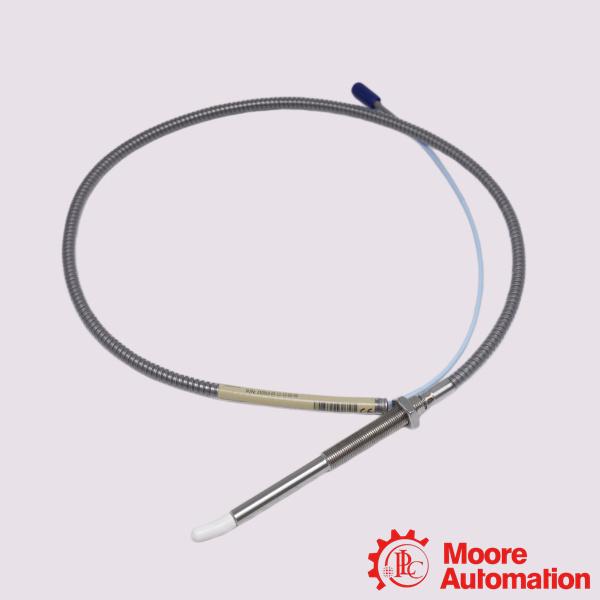

Bently Nevada 330910-00-05-05-01-00 3300 NSv Proximity Probes
| Mfr. Part Number: |
330910-00-05-05-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330910-00-05-05-01-00 is a metric, armored 3300 NSv Proximity Probe for vibration and position monitoring in confined industrial machinery. Part of the 3300 XL NSv Transducer System, it features an M10 x 1 threaded case, a 0.5-meter total length, and specialized cross-talk immunity.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
Application:
Centrifugal Air & Process Gas Compressors: Extensively used to monitor shaft dynamics in compact compressor designs with constrained interior cavities.
Refrigeration Compressors: Integrated into fluid-filmed industrial refrigeration units for continuous asset health tracking.
Restricted Target Spaces: Specifically deployed where physical features like deep counterbores, side-view walls, or rear-view clearances prevent standard sensors from obtaining precise measurements without cross-talk or signal interference.
Radial Vibration: Tracking the high-speed dynamic orbital path of small machine shafts supported by fluid-film bearings.
Frequently Asked Questions (FAQ)
Q:What is the linear range of this probe?
A:The probe has a total linear range of 1.5 mm (60 mils). It safely measures targets from a distance of 0.25 mm to 1.75 mm away from the probe tip
Q:Can I use this probe with a standard 3300 XL 8 mm Proximitor?
A:No. The NSv probe requires an NSv-specific Proximitor Sensor to work correctly. Because the sensing coil physics are different, mixing components will cause massive calibration errors.
Q:What is the target calibration material?
A:The system comes standard-calibrated to AISI 4140 steel. Using it on other shaft metals changes the scale factor output.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330910-00-05-05-01-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
40 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
