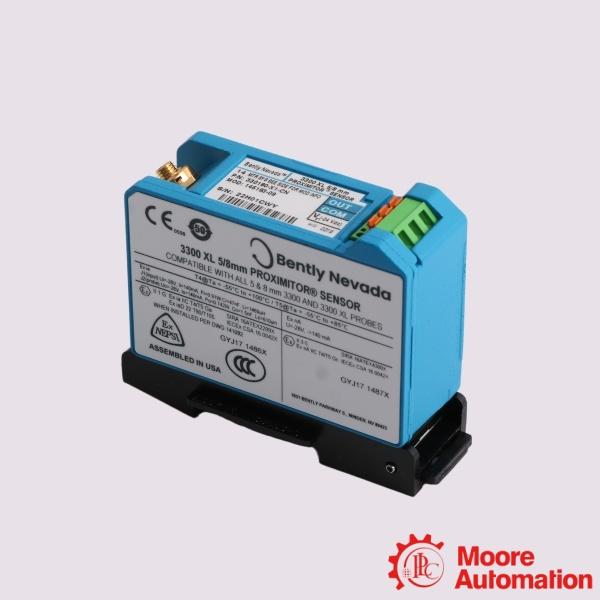

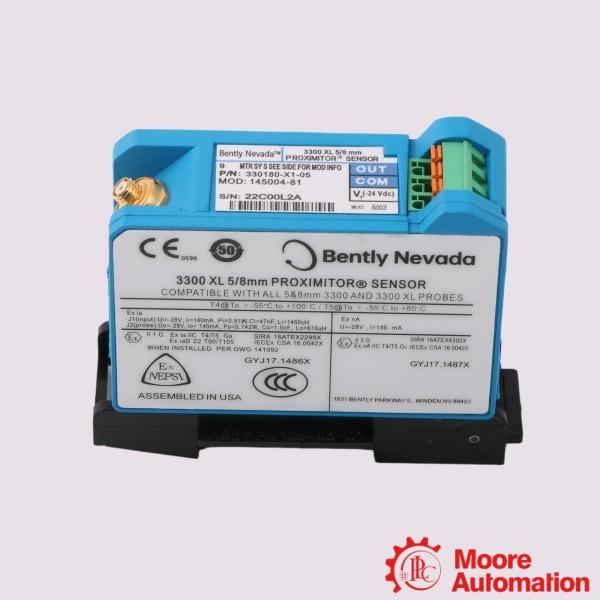

Bently Nevada 330180-X1-05 MOD: 145004-17 3300 XL Proximitor Sensor

Frequently asked questions
Q:What is the primary function of the 330180-X1-05 MOD:145004-17?
A:It conditions the signal from a compatible 3300 XL proximity probe and converts it into a calibrated voltage output for shaft vibration and shaft position measurements in rotating machinery. The sensor is intended to operate as part of a complete 3300 XL proximity transducer system.

Q:Can this sensor be used by itself?
A:No. The Proximitor Sensor is designed to operate with the specified 3300 XL proximity probe and matching extension cable. All three components together make up the complete proximity transducer system.

Q:What does the X1 option mean?

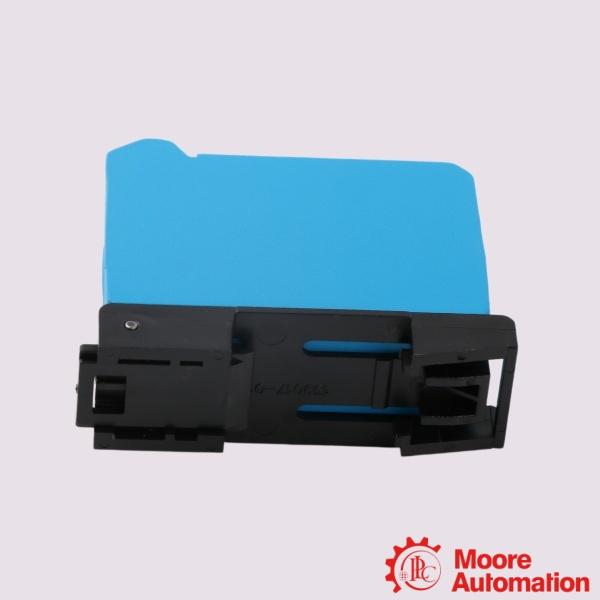

A:The X1 option provides DIN-rail mounting hardware while retaining compatibility with traditional panel mounting. This gives users greater flexibility when installing or replacing Proximitor Sensors in industrial control cabinets.

Description

The Bently Nevada 330180-X1-05 MOD:145004-17 is an advanced 3300 XL 5mm/8mm 9-meter recalibrated Proximitor sensor with Modification 145004-17 for applications involving BS970 080M40 steel shafts. The modification includes dedicated changes to the printed wiring assembly (PWA), allowing the sensor to compensate for the magnetic permeability and metallurgical properties of the specified shaft material. As a result, measurement accuracy is maintained while reducing the linearity deviations that can occur when a standard sensor is used on this type of target material. This model is intended for use as part of a 9-meter 3300 XL proximity transducer system, consisting of the proximity probe, extension cable, and the matching Proximitor sensor. Factory calibration is performed for the specified shaft material so that the complete system produces the expected output characteristics without additional material compensation during installation. This approach simplifies commissioning and establishes a reliable baseline for machinery condition monitoring in turbines and other critical rotating equipment. The X1 option supplies DIN-rail mounting hardware, making installation convenient in industrial control cabinets where mounting space may be limited. The sensor retains an electrical zero of –3.0 Vdc at 20 mils together with a calibrated output of 7.87 V/mm (200 mV/mil). These characteristics allow the transducer system to deliver stable gap and vibration signals for continuous monitoring, supporting routine machinery diagnostics and early detection of changes in operating condition.

Parameter

Model: 330180-X1-05 MOD: 145004-17 3300 XL Proximitor Sensor
Total Length and Mounting Option: 9.0 meters (29.5 feet) system length, panel mount
Agency Approval Option: CSA, ATEX, IECEx  Approvals
Electrical Zero: -3.0 Vdc at 20 mils
Linear Range: 10 mils to 90 mils (80 mils total range)
Incremental Scale Factor (ISF): 200 mV/mil (7.87 V/mm) nominal

Application areas

• Steam Turbines: Monitoring shaft vibration and radial shaft position at journal bearings.
• Gas Compressors: Measuring shaft displacement and vibration in centrifugal compressor trains.
• Boiler Feed Pumps: Tracking shaft movement and bearing condition during continuous operation.
• Industrial Motors: Detecting vibration, shaft position changes, and bearing wear in large motors.
• Custom Machinery: Factory calibrated for BS970 080M40 steel shafts used in specialized rotating equipment.
