in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
64x1x1cmWeight:
0.02kgCountry of Origin: :
USADescription:

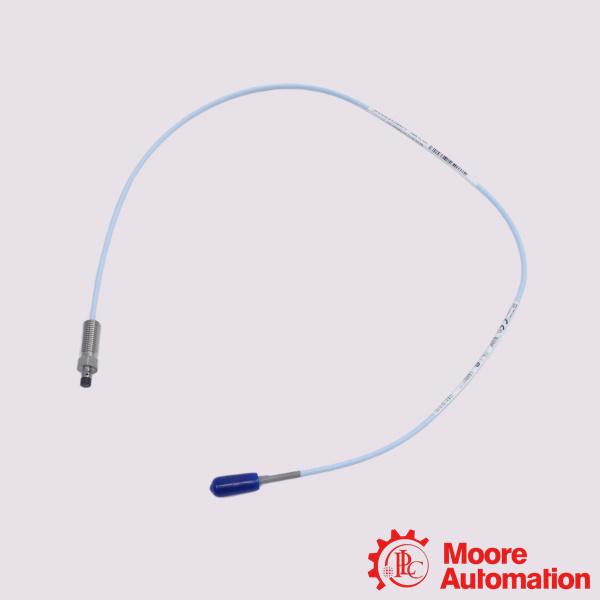

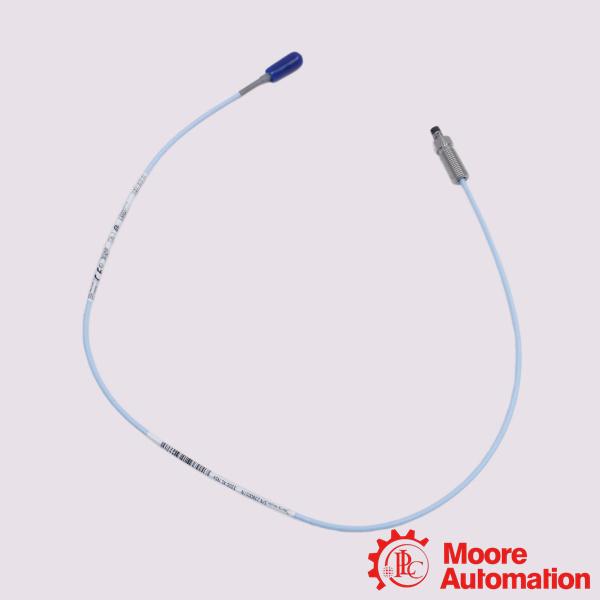

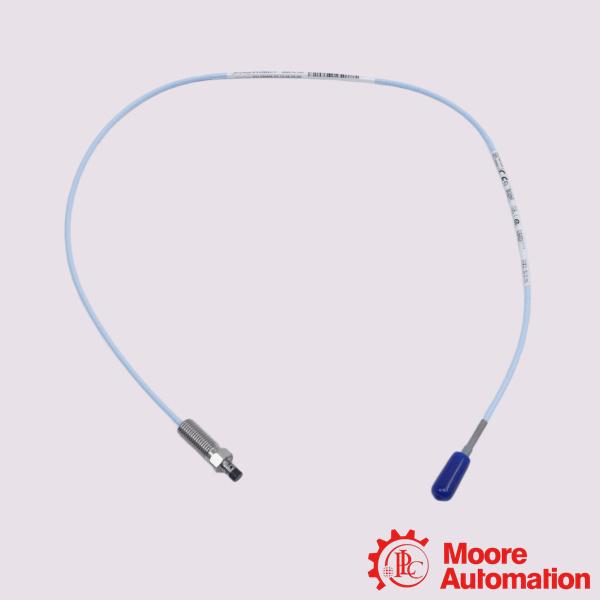

Bently Nevada 330906-02-12-10-02-05 3300 NSv Reverse Mount Probe
| Mfr. Part Number: |
330906-02-12-10-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330906-02-12-10-02-05 is a 3300 XL NSv reverse-mount proximity probe for critical machinery condition monitoring in confined spatial configurations and small target applications. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
Application:
Centrifugal Air Compressors: Monitored for precise shaft vibration dynamics where internal casing clearance is highly restricted.
Refrigeration & Process Gas Compressors: Leverages high chemical resistance to operate seamlessly within enclosed, aggressive chemical process gases.
Small-Diameter Turbines and Pumps: Ideal for fluid-film bearing machines with small target geometries, specifically shafts smaller than 51 mm (2 inches).
Radial Vibration & Position: Tracks continuous high-precision dynamic motion and static alignment of the rotor relative to the bearing journal.
Frequently Asked Questions (FAQ)
Q:What is the measurement range?
A:The system provides a linear measurement range of 1.5 mm (60 mils). This range is deliberately shorter than standard 8mm systems to provide superior side-view clearance and small target performance.
Q:What target material is it calibrated for out of the box?
A:The Proximitor Sensors are factory calibrated by default to AISI 4140 steel target surfaces. Custom calibrations for other alloys are available by request from the factory.
Q:What connector technology does it use?
A:The probe incorporates a gold-plated brass ClickLoc coaxial connector. This locking mechanism prevents connections from loosening due to machine vibration.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330906-02-12-10-02-05 |
|
Total Length Option |
1.0 meter (39 in) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Multiple Approvals |
|
