in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.8x1.6x126cmWeight:
0.08kgCountry of Origin: :
USADescription:

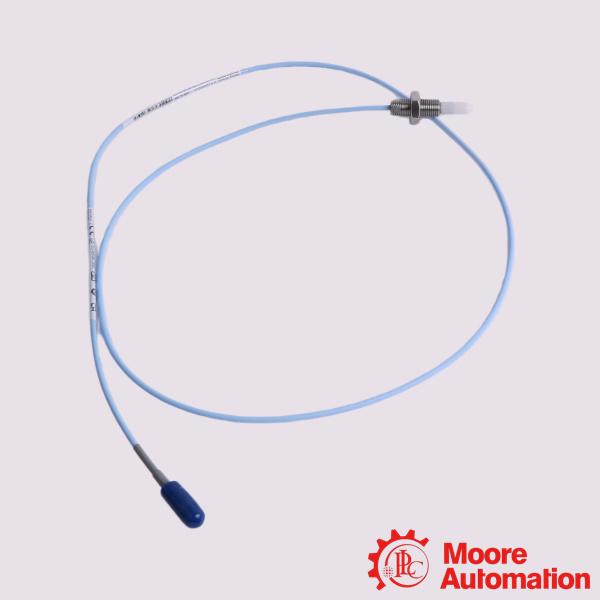

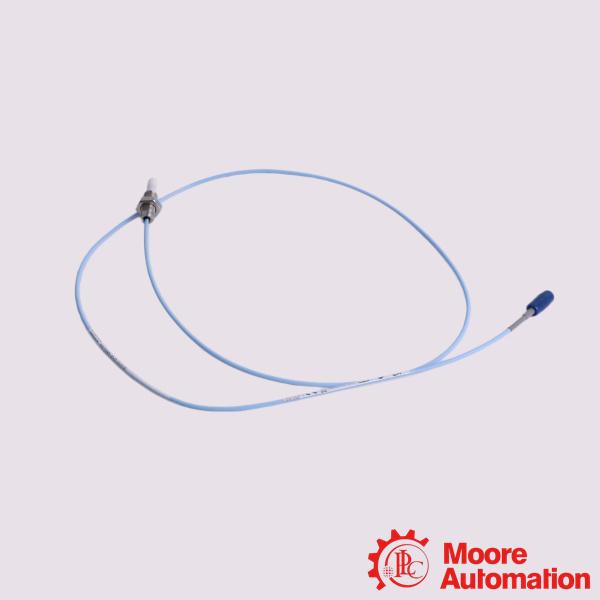

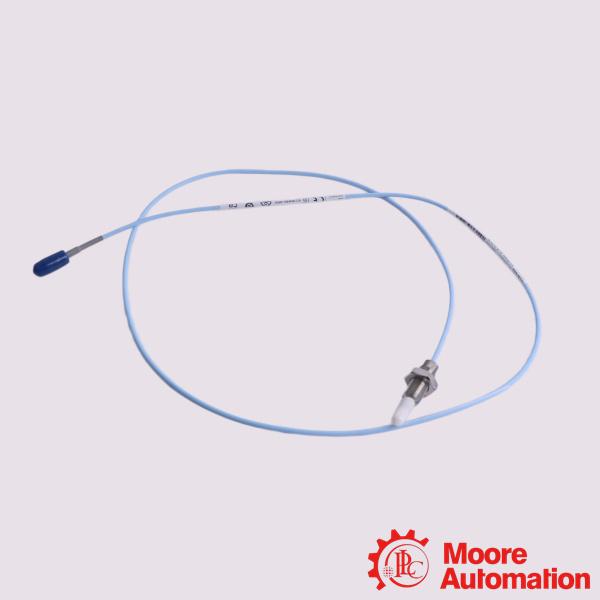

Bently Nevada 330905-00-24-05-01-00 3300 NSv Proximity Probes
| Mfr. Part Number: |
330905-00-24-05-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330905-00-24-05-01-00 is a 3300 NSv proximity probe for small-scale machinery and tight installations where standard 5mm or 8mm probes face spatial or physical restrictions. It provides precise, non-contact measurement of radial vibration and axial (thrust) position on fluid-filmed bearing machines.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Extensively integrated by original equipment manufacturers (OEMs) for small-package air plant compressors to trace tight shaft vibration.
Refrigeration Compressors: Employed in industrial chilling units and HVAC climate-control process loops with restrictive rear-view or side-view probe installations.
Process Gas Compressors: Deployed in oil, gas, and chemical refining to monitor micro-turbomachinery and localized fluid bearings safely.
Small Pumps and Industrial Fans: Ideal for auxiliary plant equipment where standard larger eddy-current sensors cannot physically fit or map the target area correctly.
Frequently Asked Questions (FAQ)
Q:Can I use any extension cable with this probe?
A:No. It must be matched with a dedicated 3300 NSv extension cable to achieve a combined system length of either 5.0 or 7.0 meters. Mixing it with standard 3300 XL 5mm or 8mm cables will cause significant calibration errors.
Q:What principle does this sensor use to measure vibration?
A:The system operates on the eddy current principle. The paired proximitor sensor generates a radio frequency signal to detect the precise distance between the probe tip and the observed shaft surface.
Q:What applications are best suited for this specific probe?
A:It is ideal for centrifugal air compressors, refrigeration compressors, and process gas compressors. It excels in areas with side-view or counterbore restrictions and targets small shafts under 51 mm (2 inches).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330905-00-24-05-01-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
240 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
