in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.8x1.6x120cmWeight:
0.08kgCountry of Origin: :
USADescription:

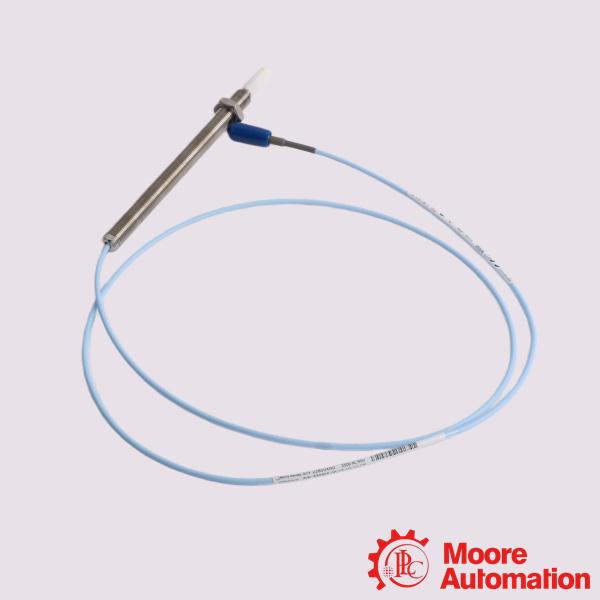

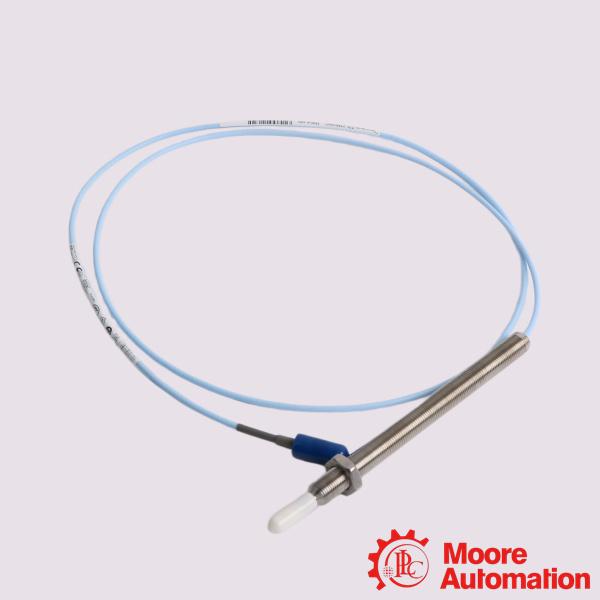

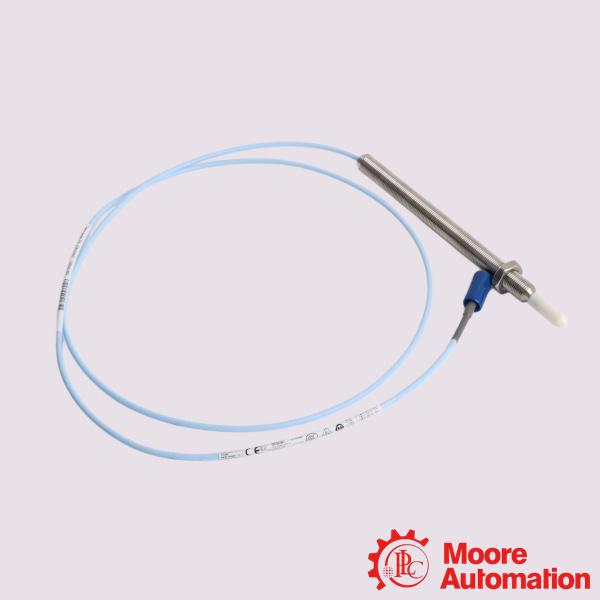

Bently Nevada 330905-00-23-05-01-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330905-00-23-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330905-00-23-05-01-CN is a 3300 NSv Proximity Probe for specialized industrial applications where tight installation space or small target sizes prevent the use of standard 5mm or 8mm sensors. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
Application:
Small Target Measurement: Ideal for tracking components with highly restricted surface areas, such as small-diameter shafts or thin target wheels.
Confined Geometry Monitoring: Specially designed for installations dealing with tight counterbores, side-view restrictions, or rear-view clearances where standard probes would suffer from side-loading or signal interference.
Radial Vibration & Positioning: Tracks dynamic shaft motion to diagnose misalignment, imbalance, and oil whirl in rotating machinery.
Tachometer & Speed Measurements: Provides exact zero-speed tracking and standard speed counts by measuring gear teeth or notches.
Frequently Asked Questions (FAQ)
Q:Can I connect this probe directly to any 3300 XL Proximitor?
A:No. The 3300 NSv probe requires a matching 3300 NSv Proximitor Sensor or a 990 Vibration Transmitter built for NSv scaling. It is incompatible with standard 3300 XL 5mm or 8mm sensors.
Q:What principle does this probe use to measure vibration?
A:It runs on the eddy current principle. The matched Proximitor sensor drives an RF signal to the probe tip coil, mapping target distance by tracking changes in the induced eddy currents.
Q:What is the primary use of the 3300 NSv series?
A:This probe targets applications with strict physical limits. It serves areas where counterbore, side-view, or rear-view restrictions prevent using standard 8mm proximity probes.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330905-00-23-05-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
230 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
