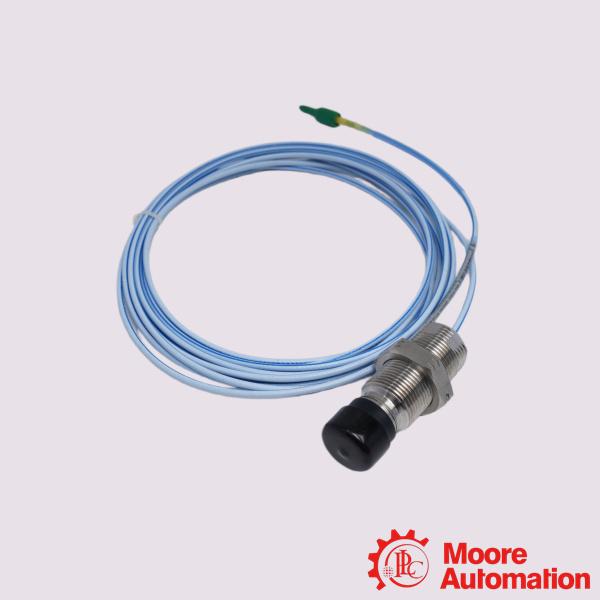

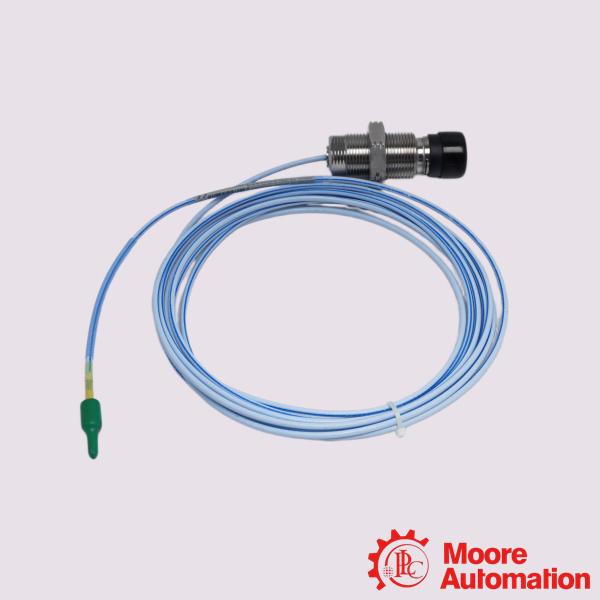

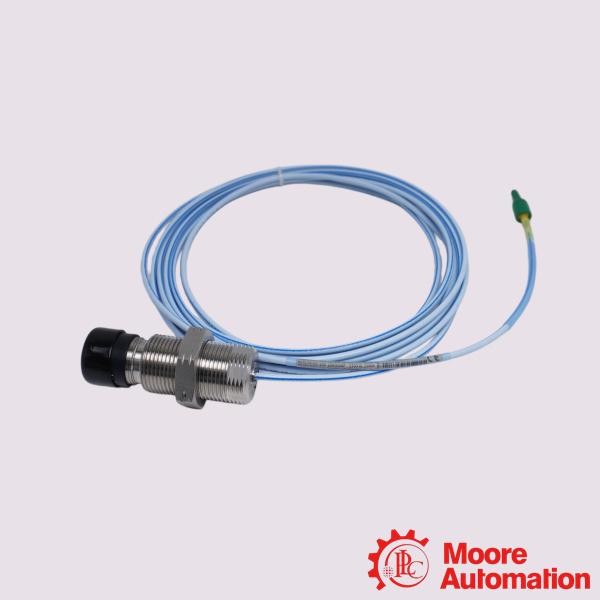

330851-02-000-078-10-01-05 | Bently Nevada3300 XL 25 mm Proximity Probe

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
16x15x4.5cm
Weight:
0.24kg
Country of Origin: :
USA
Description:
Bently Nevada 330851-02-000-078-10-01-05 3300 XL 25 mm Proximity Probe

Inquiry now

Mfr. Part Number:	330851-02-000-078-10-01-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330851-02-000-078-10-01-05 3300 XL 25 mm Proximity Probe

Full Description:	The 3300 XL 25 mm probe is designed for maximum survivability in the harshest steam turbine DE environments.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330851-02-000-078-10-01-05 3300 XL 25 mm Proximity Probe is designed for maximum survivability in the harshest steam turbine DE environments. It can continually operate and maintain its accuracy in high temperatures up to 200 °C (392 °F), and can withstand intermittent high temperatures up to 250 °C (482 °F). The 25 mm probe has both a front and rear seal which, combined with the FluidLoc cable (standard on all 25 mm probes), prevents moisture from entering the probe tip. Special high-temperature ClickLoc connectors are also standard on the probe and extension cable.

Application:

Power Generation Plants: Used heavily on mid-to-large steam turbine generators to monitor casing-to-rotor differential growth.
Oil & Gas Refineries: Deployed on massive, high-temperature centrifugal or axial turbo-compressors.
Chemical Processing Facilities: Tracks axial displacement and expansion on heavy-duty machinery exposed to harsh thermal environments.
Industrial Marine Propulsion: Monitors large turbine shafts used in major maritime vessels

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of this 25 mm probe?
A:It measures static position (such as axial thrust) or dynamic shaft vibration in large machinery. The larger 25 mm tip diameter allows for a wider linear measuring range and greater standoff distance than standard 8 mm or 11 mm probes, making it ideal for large steam turbine generator sets.
Q:Can it be used to replace older 7200 series systems?
A:Yes. The 3300 XL 25 mm transducer system is explicitly engineered as a physical and electrical direct replacement for the legacy Bently Nevada 7200 series 1-inch proximity probe system.

Q:How is the probe cable protected against liquids and moisture?
A:The probe incorporates FluidLoc technology built directly into its PFA-insulated triaxial cable. This design features an internal seal that prevents moisture, steam, or lubrication oils from wicking through the cable body into the probe tip or connector area.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330851-02-000-078-10-01-05
Probe Case Type Option	M30x2 thread
Unthreaded Length Option	0 mm
English Case Types Order in increments of 0.1 in	7.8 in
Total Length Option	1.0 metre (3.3 feet)
Armor Option	with SST Armor
Agency Approval Option	Multiple Approvals
Output resistance	50 W
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyetheretherketone (PEEK)
Probe Case Material	AISI 304 stainless steel (SST).
Operating and Storage Temperature	-35°C to +200°C (-31°F to +392°F)
