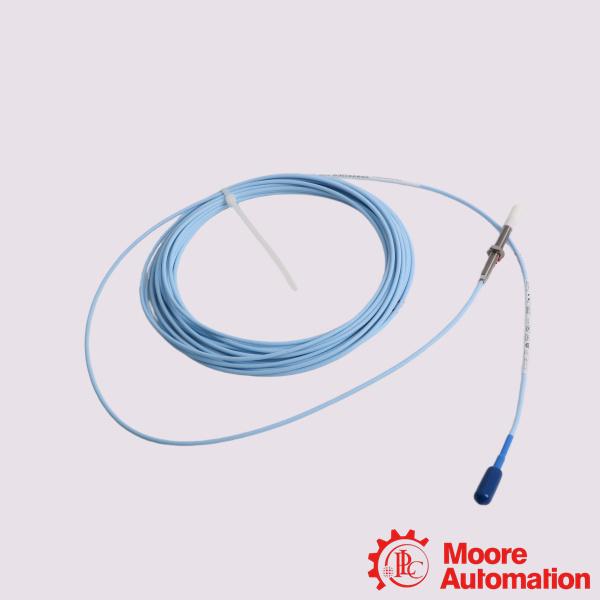

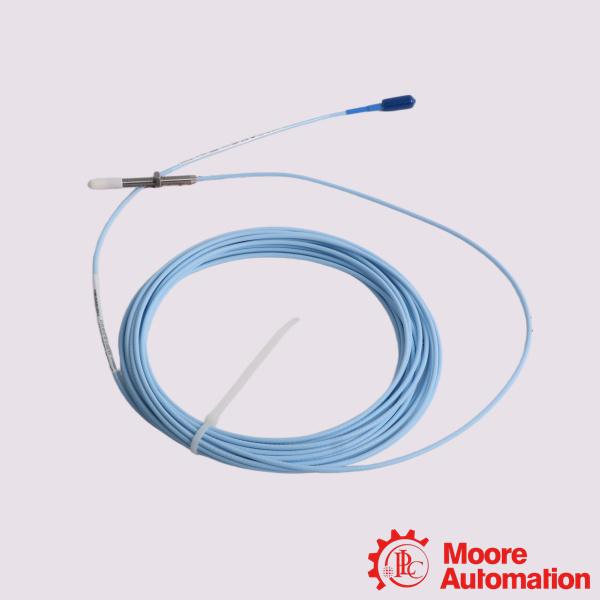

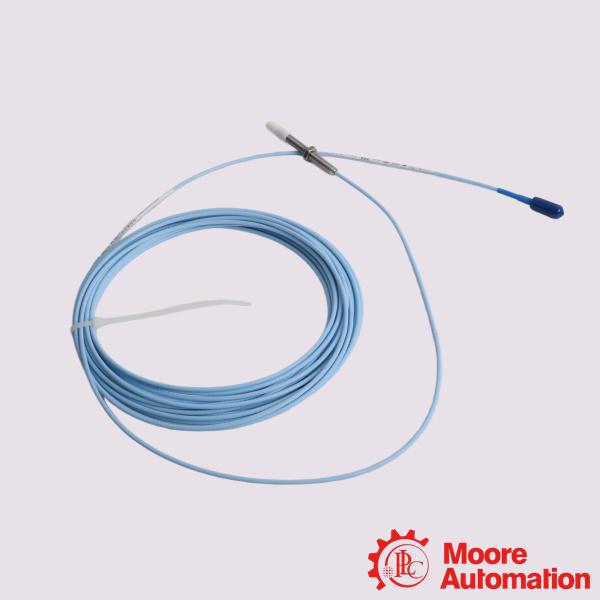

330171-00-12-10-02-05 | Bently Nevada 3300 5mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
20x20x2cm
Weight:
0.18kg
Country of Origin: :
USA
Description:
Bently Nevada 330171-00-12-10-02-05 3300 5mm Proximity Probes

Inquiry now

Mfr. Part Number:	330171-00-12-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330171-00-12-10-02-05 3300 5mm Proximity Probes

Full Description:	The 3300 5 mm Proximity Transducer System provides an accurate, stable signal output over a wide temperature range.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330171-00-12-10-02-05 3300 5mm Proximity Probes improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.The system provides an accurate, stable signal output over a wide temperature range.

Application:

Fluid-Film Bearing Machines: Measures static shaft position (axial thrust and radial displacement) and dynamic shaft vibration.
Power Generation:Continuous health tracking of steam turbines, gas turbines, and large generators.
Chemical & Petrochemical Processing:Tracking high-speed rotating equipment exposed to harsh chemical environments.
Water & Wastewater Management:Vibration analysis on large vertical and horizontal high-capacity water transport pumps.

Frequently Asked Questions (FAQ)

Q:What is the operating principle of this probe?
A:It operates based on the eddy current principle. The connected Proximitor sensor sends a high-frequency radio signal to the probe tip, creating a magnetic field. When a conductive metal target (like a machine shaft) moves near the tip, it changes the circuit impedance. This change provides a voltage output directly proportional to the gap distance.
Q:Does this probe require bench calibration?
A:No. The system allows complete interchangeability between the probe, extension cable, and Proximitor sensor. You can swap individual components in the field without manual matching or bench recalibration.

Q:Why does the system use a negative bias voltage?
A:Bently Nevada proximity systems typically use -24 VDC power. This legacy choice dates back to early industrial solid-state development when P-N-P transistors (which require a negative bias voltage) were more economical and robust than alternative components.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330171-00-12-10-02-05
Unthreaded Length Option	0.0 in
Overall Case Length Option	1.2 in
Total Length Option	1.0 metre (3.3 feet)
Connector Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Multiple Approvals
Output Resistance	50 W
Recommended Gap Setting	1.27 mm (50 mils)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Probe Temperature Range	-35°C to +177°C (- 31°F to +351°F)
