Product Description:

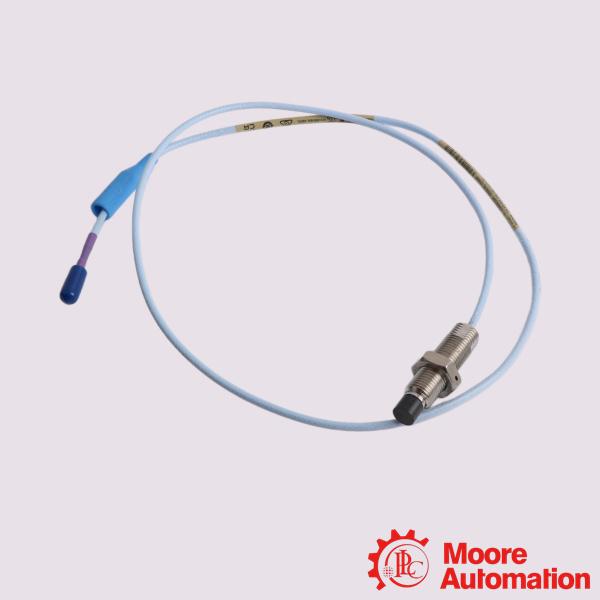

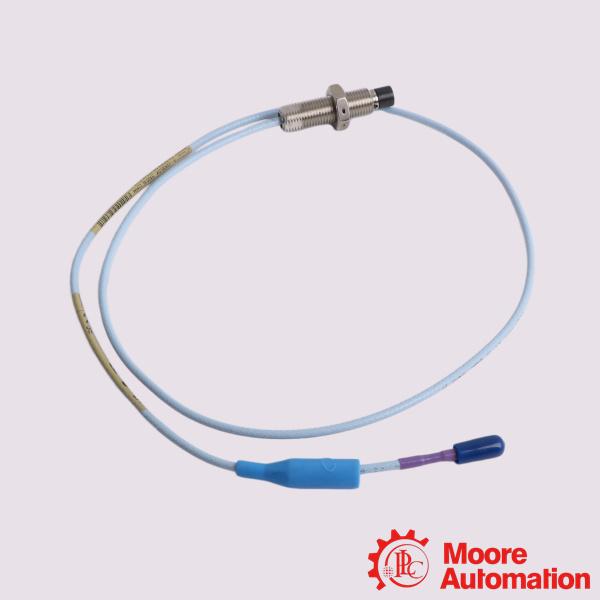

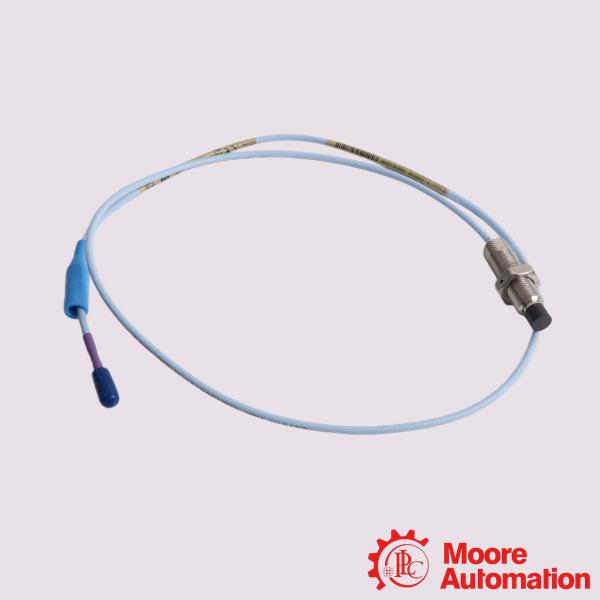

The Bently Nevada 330703-000-050-10-01-00 is a 3300 XL 11 mm Proximity Probe for high-precision, non-contacting monitoring of critical rotating machinery. It is primarily utilized in heavy industrial environments where machine health is vital to avoid unplanned downtime.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.

Frequently Asked Questions (FAQ)

Q:What is the difference between this 11 mm probe and standard 8 mm probes?

A:The primary difference is the longer linear measurement range. Thanks to its larger 11 mm tip diameter, this system offers a broader linear range (typically 4 mm or 160 mils) compared to the 2 mm (80 mils) range of standard 8 mm probes. This makes it ideal for applications with high thermal or physical displacement.
Q:What target material is this system calibrated to?
A:By default, the 3300 XL 11 mm system is factory-calibrated to AISI 4140 steel. Measuring against other target alloys or non-ferrous metals without recalibration will degrade accuracy and linear system behavior.

Q:What are the electrical parameters and output sensitivity?
A:When coupled with a matching 3300 XL 11 mm Proximitor Sensor, the system produces a standard output sensitivity of 3.94 V/mm (100 mV/mil). The sensor operates within a normal gap voltage window of approximately −9 V to −11 V DC when properly spaced and centered relative to the shaft.
