in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
122x2.7x2.2cmWeight:
0.14kgCountry of Origin: :
USADescription:

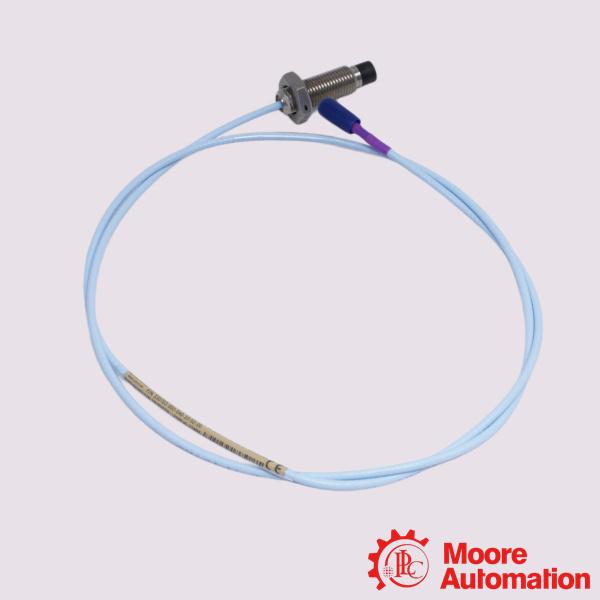

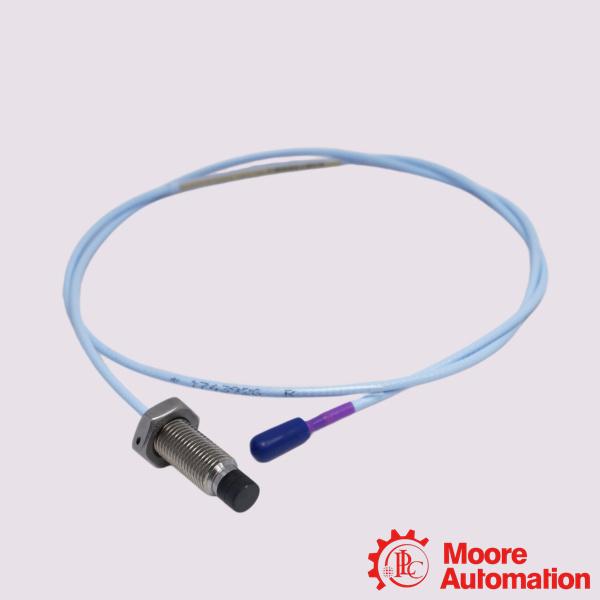

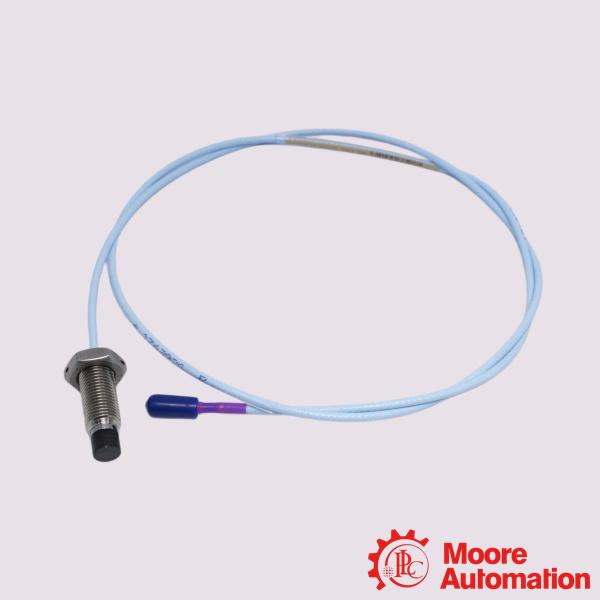

Bently Nevada 330703-000-080-50-02-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330703-000-080-50-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-080-50-02-00 is a 3300 XL 11 mm Proximity Probe for critical machinery health monitoring. Its primary target applications involve high-precision, non-contact measurements on large rotating equipment where standard 8 mm probes lack sufficient reach or linear range.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Radial Vibration & Position: Monitoring shaft vibration within fluid-film bearings to detect imbalances or misalignment.
Steam Turbine Differential Expansion: Tracking the relative growth between the turbine rotor and casing during startup and shutdown.
Reciprocating Compressor Monitoring: Specifically used for rod position or "rod drop" measurements to monitor wear on rider bands.
Speed and Phase Reference: Providing signals for tachometers, zero-speed measurements, and Keyphasor signals used for machinery diagnostics.
Frequently Asked Questions (FAQ)
Q:What target material is required for calibrated accuracy?
A:The performance specifications are calibrated against a standard AISI 4140 steel target. The target area must be at least 31 mm (1.2 inches) in diameter or larger. Utilizing alternative target metals will affect the scale factor and skew measurements unless custom calibration is specified.
Q:What is a ClickLoc connector?
A:The -02 suffix indicates a proprietary, gold-plated ClickLoc coaxial connector. These connectors require only finger-tight torque to achieve a secure seal. They lock with an audible "click" that prevents them from backing off due to mechanical vibration, eliminating the need for specialized installation tools.
Q:What is the linear range and scale factor?
A:When paired with a matching 3300 XL 11 mm Proximitor Sensor, the system delivers a nominal Linear Range of 4.0 mm (160 mils). The linear range generally starts around 0.5 mm (20 mils) from the target surface. The nominal Average Scale Factor (ASF) is 3.94 V/mm (100 mV/mil).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-080-50-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
80 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
