in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.2x2x112cmWeight:
0.14kgCountry of Origin: :
USADescription:

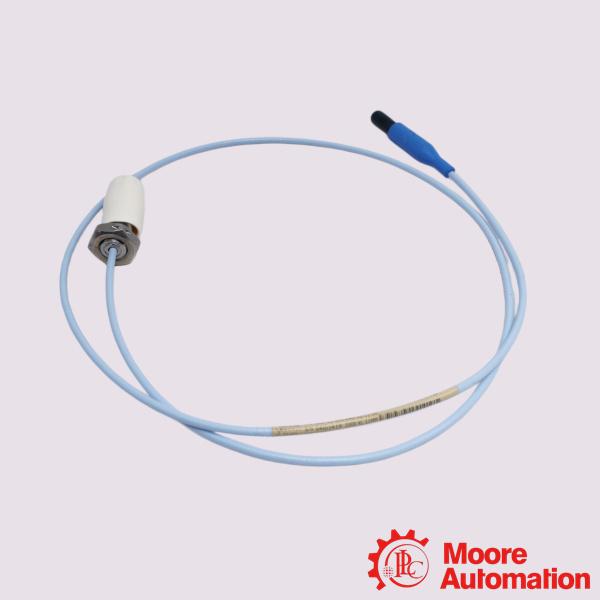

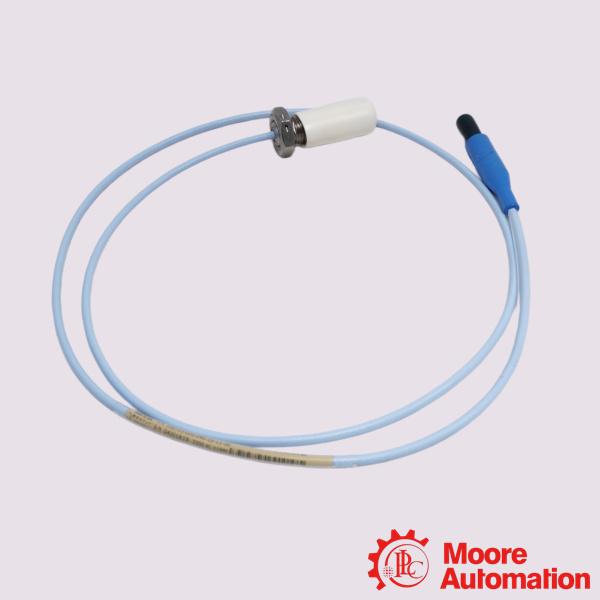

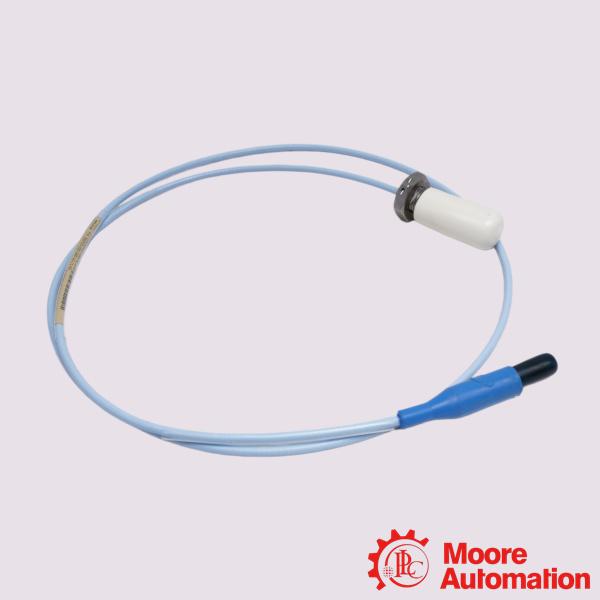

Bently Nevada 330703-000-026-50-02-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330703-000-026-50-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-026-50-02-CN is an 11 mm proximity probe belonging to the 3300 XL Proximity Transducer System. It is specifically engineered for critical industrial environments where non-contact vibration and displacement measurements are required, particularly on machines using fluid-film bearings.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Steam Turbine Monitoring: Used for axial (thrust) position measurements and ramp differential expansion measurements.
Reciprocating Compressors: Essential for rod position or rod drop measurements to monitor piston rod wear.
Critical Rotating Machinery: Ideal for continuous condition monitoring of large pumps, motors, and generators in power plants (thermal and nuclear).
Oil & Gas and Petrochemical: Used in centrifugal compressors and other heavy machinery for predictive maintenance and to prevent costly downtime.
Frequently Asked Questions (FAQ)
Q:What is the primary function of this probe?
A:It measures radial vibration, axial position, and speed on fluid film bearing machinery. Common applications include large steam turbines, compressors, and pumps in the oil, gas, and petrochemical sectors.
Q:Can I use an 8mm extension cable or Proximitor with this 11mm probe?
A:No. The 11mm probe requires a dedicated 11mm extension cable and an 11mm Proximitor Sensor. Mixing components with 8mm or 25mm systems will ruin calibration and cause false measurement readings.
Q:How do I troubleshoot or check the health of the probe?
A:Use a digital multimeter set to resistance mode to check continuity across the cable jacket, center conductor, and ground. A reading showing low resistance or short-circuiting to the ground indicates a damaged or grounded cable core.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-026-50-02-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
26 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
