Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2.1cmWeight:
0.24kgCountry of Origin: :
USADescription:

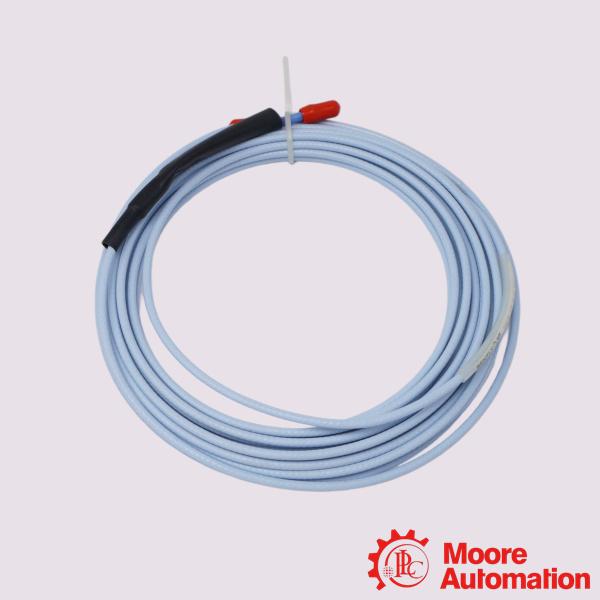

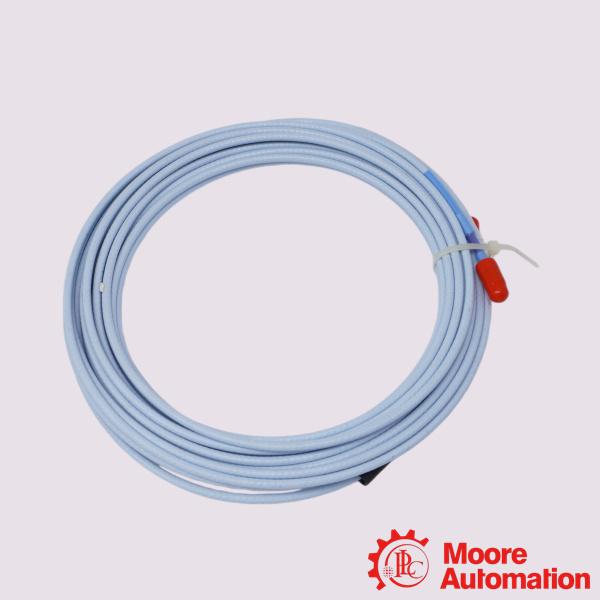

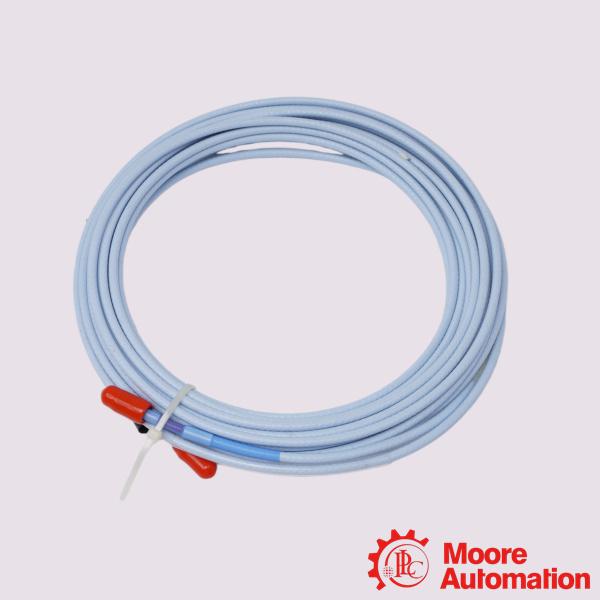

Bently Nevada 330130-070-03-CN 3300 XL Standard Extension Cable
| Mfr. Part Number: |
330130-070-03-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330130-070-03-CN is a 7.0-meter armored extension cable with a connector protector belonging to the 3300 XL 8 mm Proximity Transducer System. It functions as a critical link to transmit high-fidelity, low-noise vibration signals from an eddy current probe to a Proximitor sensor.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Oil & Gas Refineries: Used heavily on upstream and downstream machinery where hazardous area certifications (ATEX, IECEx, CSA) are mandatory.
Power Generation Plants: Deployed on critical steam/gas turbines and large generators to prevent catastrophic failures.
Chemical & Petrochemical Processing: Ideal for monitoring high-stress equipment exposed to corrosive chemicals or high ambient heat.
Water & Wastewater Treatment: Applied on massive pumping stations and fluid management machinery.
Frequently Asked Questions (FAQ)
Q:Is this cable backward compatible with older systems?
A:Yes. The 3300 XL series extension cables are backward compatible with non-XL 3300 series 5 mm and 8 mm proximity transducer system components. However, utilizing a mix of XL and non-XL components can slightly reduce the maximum performance specifications compared to an all-XL system.
Q:Can I use silicone tape near the connector on this specific cable?
A:No. If the cable connection is placed near turbine oil, silicone tape is not recommended. The tape can break down when exposed to certain oils; alternative connector protection methods should be deployed in oil-rich environments.
Q:What target material is required for accurate calibration?
A:The underlying 3300 XL transducer system is strictly calibrated to an AISI 4140 steel target. Connecting this cable to a sensor targeting any other metal will skew the accuracy, change the linear range, and invalidate standard calibration metrics
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330130-070-03-CN |
|
Cable Length Option |
7.0 meters (13.1 feet) |
|
Connector Protector and Cable Option |
Armored cable with connector protector |
|
Output Resistance |
50 Ω |
|
Connector Material |
Gold-plated brass or goldplated beryllium copper. |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
