in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2cmWeight:
0.18kgCountry of Origin: :
USADescription:

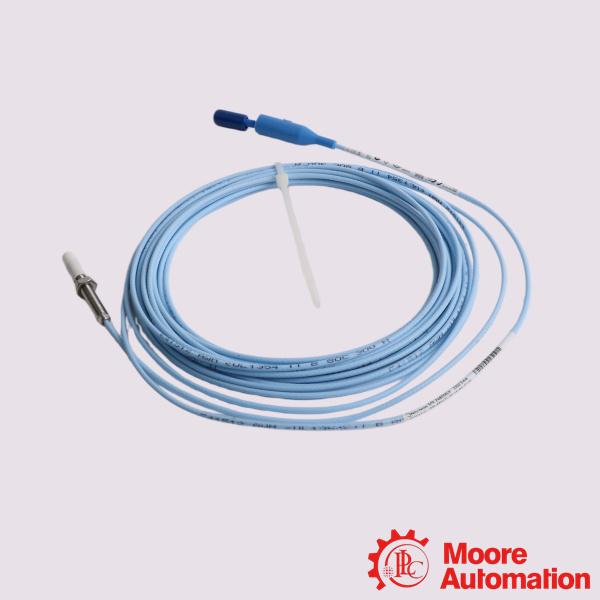

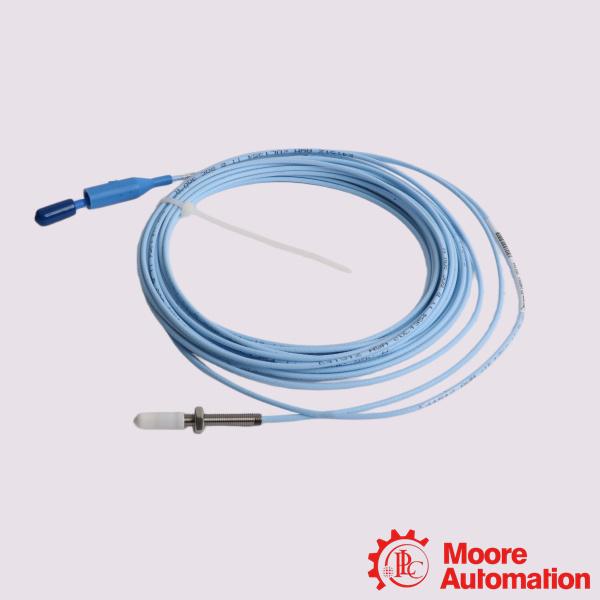

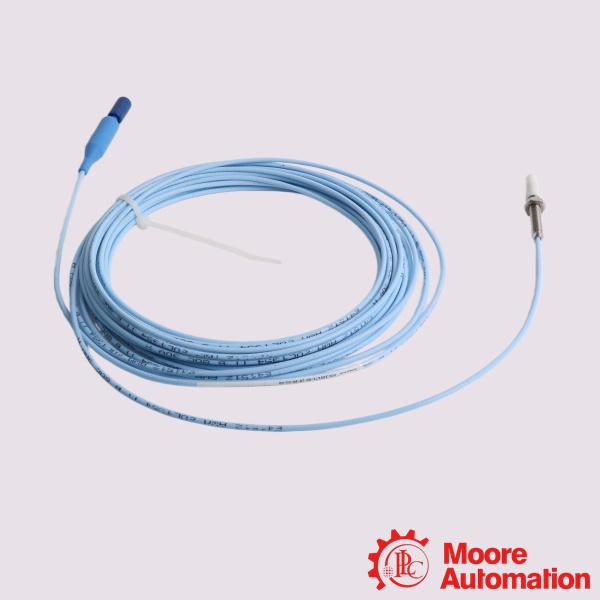

Bently Nevada 330171-00-08-50-02-CN3300 XL Standard Extension Cable
| Mfr. Part Number: |
330171-00-08-50-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330171-00-08-50-02-CN is a 3300 Series 5mm Proximity Probe primarily for machinery diagnostics, vibration monitoring, and asset protection in heavy rotating equipment. The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.
Application:
Power Generation: Monitors steam turbines, gas turbines, and massive generator shafts for critical vibration profiles.
Oil & Gas (Upstream & Downstream): Deployed on offshore drilling platforms, refineries, and petrochemical facilities to protect multi-stage centrifugal pumps, turbo-expanders, and gas compressors.
Chemical Processing: Tracks the health of high-speed mixers, agitators, and process fans handling volatile materials.
Water & Wastewater Management: Installed on heavy-duty water distribution pumps and large aeration blowers.
Frequently Asked Questions (FAQ)
Q:Can this probe be used for over-speed measurements?
A:Yes, but you must consult the manufacturer's application notes regarding eddy current sensors for tachometer or over-speed systems.
Q:Can I mix a 5 mm probe with an 8 mm Proximitor sensor?
A:No. You must match the probe diameter size with the specific Proximitor sensor configuration. Mixing a 5 mm probe with an 8 mm or 50 mm system will cause severe calibration issues, non-linear output errors, and faulty machinery trip signals.
Q:What technology does this probe use?
A:It operates on eddy current sensor technology. The system sends a high-frequency radio frequency signal to the probe tip, generating an eddy current field on the target surface. The voltage drop across this field is translated directly into distance changes.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330171-00-08-50-02-CN |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
0.8 in. |
|
Total Length Option |
5.0 metres (16.4 feet) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output Resistance |
50 W |
|
Recommended Gap Setting |
1.27 mm (50 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Probe Temperature Range |
-35°C to +177°C (- 31°F to +351°F) |
|
