in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2.5cmWeight:
0.25kgCountry of Origin: :
USADescription:

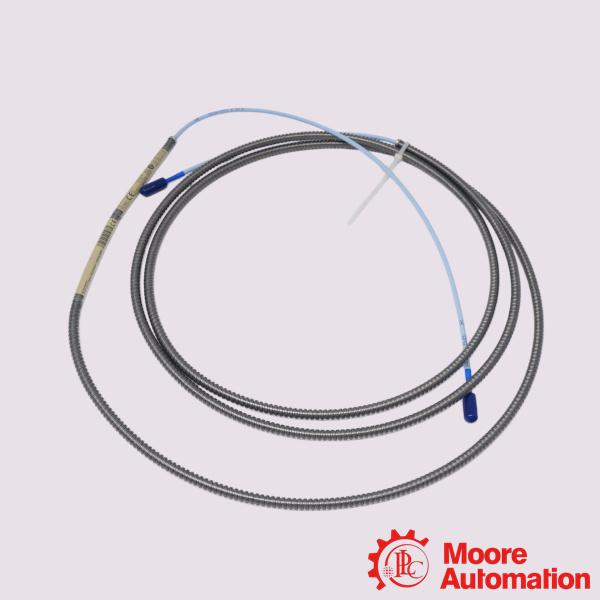

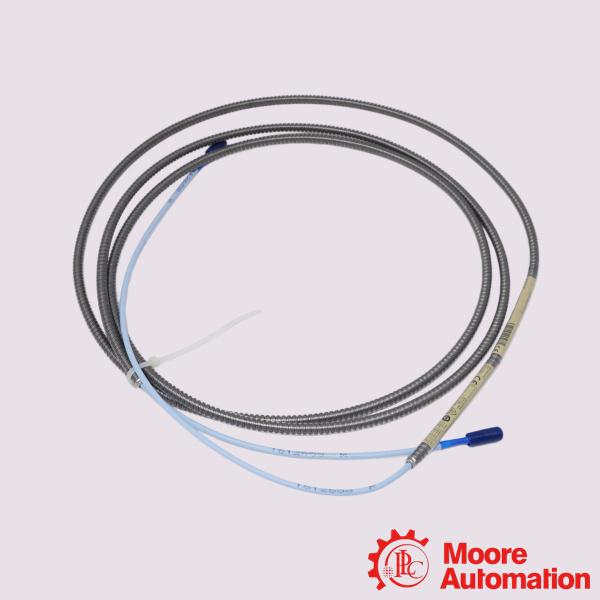

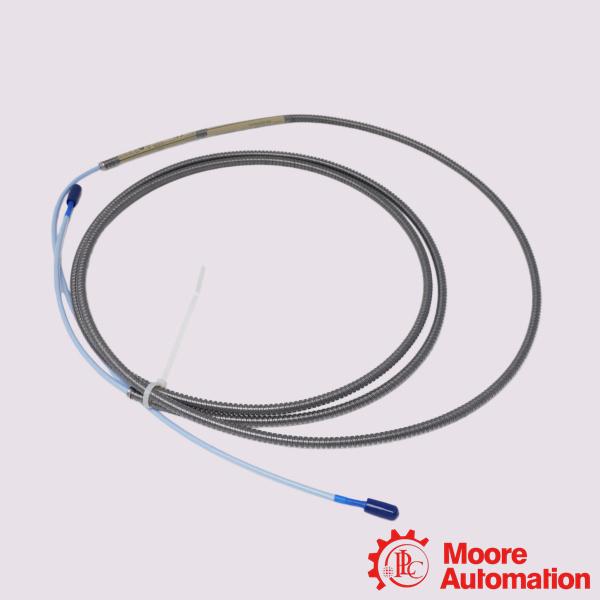

Bently Nevada 330130-030-03-CN3300 XL Standard Extension Cable
| Mfr. Part Number: |
330130-030-03-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330130-030-03-CN is a 3.0-meter 3300 XL Standard Extension Cable for industrial vibration and proximity monitoring systems. It acts as a critical signal link between a proximity probe and a Proximitor sensor.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Steam and Gas Turbines: Monitors radial vibration, axial thrust position, and thermal casing expansion to prevent catastrophic rotor-to-stator contact.
Centrifugal and Axial Compressors: Tracks high-frequency vibration and shaft movement during surge or high-load conditions in pipeline and processing stations.
Large Industrial Pumps & Fans: Detects misalignment, unbalance, and bearing wear in boiler feed pumps, cooling tower fans, and water intake systems.
Electric Motors and Generators: Used for machinery health monitoring on multi-megawatt prime movers driving crucial plant processes.
Frequently Asked Questions (FAQ)
Q:What is the physical composition of the cable?
A:The core features a 75 Ω triaxial cable insulated with fluoroethylene propylene (FEP). The outside is wrapped in flexible, heavy-duty stainless steel armor.
Q:Can I use this cable with non-3300 XL hardware?
A:Yes. The 3300 XL cabling system is backwards compatible with older, non-XL Bently Nevada 3300 series transducer components. However, matching the total system length (typically 5-meter or 9-meter configurations) is required to maintain sensor calibration and linearity.
Q:What is the function of this cable?
A:It connects a 3300 XL 8mm proximity probe to a 3300 XL Proximitor Sensor. It transmits high-frequency eddy-current signals to measure rotor shaft position and vibration.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330130-030-03-CN |
|
Cable Length Option |
3.0 meters (13.1 feet) |
|
Connector Protector and Cable Option |
Armored cable |
|
Output Resistance |
50 Ω |
|
Connector Material |
Gold-plated brass or goldplated beryllium copper. |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
