in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2.5cmWeight:
0.25kgCountry of Origin: :
USADescription:
Bently Nevada 330130-035-01-00 3300 XL Standard Extension Cable
| Mfr. Part Number: |
330130-035-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

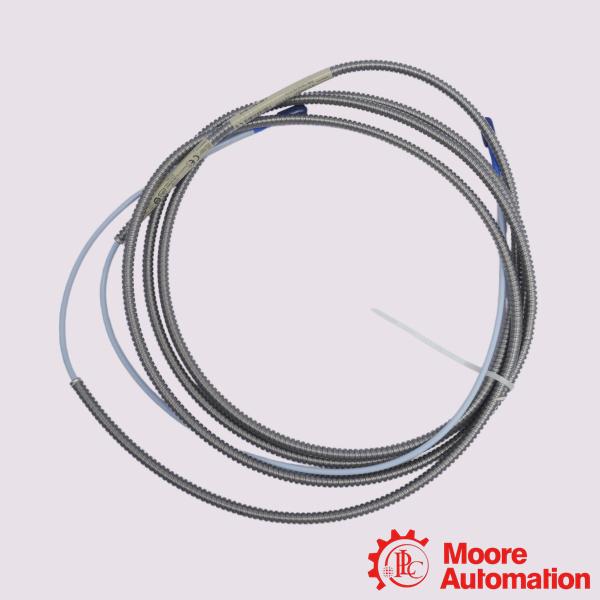

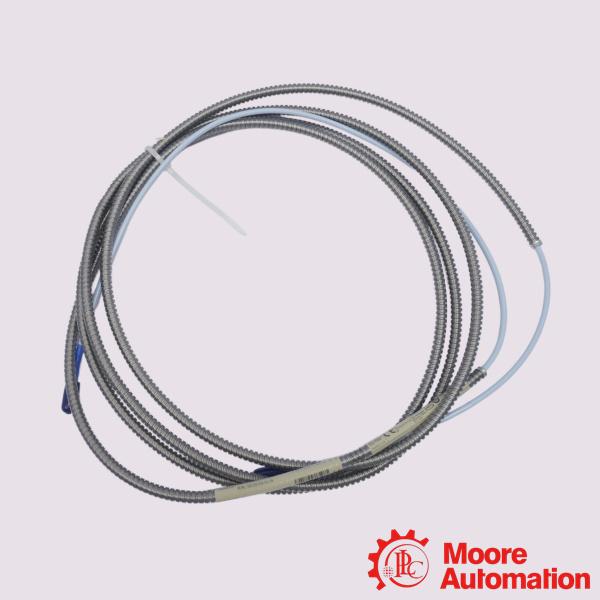

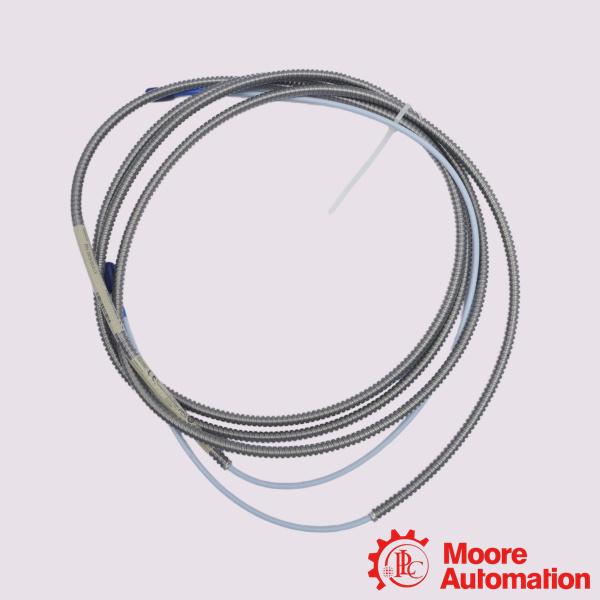

The Bently Nevada 330130-035-01-00 is an armored 3.5-meter extension cable belonging to the 3300 XL 8mm Proximity Transducer System. It connects an eddy-current proximity probe to a Proximitor sensor, forming a critical pipeline for machinery condition monitoring and predictive maintenance.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Power Generation: Used in steam, gas, and hydro turbines, as well as generators and exciters, to prevent catastrophic failures through real-time vibration alerts.
Oil, Gas & Petrochemical: Installed on multi-stage centrifugal compressors, turboexpanders, and large process pumps moving volatile fluids.
Water & Wastewater Treatment: Deployed on massive water distribution pumps, industrial blowers, and large aeration fans.
Heavy Manufacturing & Mining: Utilized in large gearboxes, cooling tower fans, air handling units, and industrial mixers.
Frequently Asked Questions (FAQ)
Q:Can I use this cable on a system with a different total length?
A:No. Proximity transducer systems rely on a tuned physical/electrical length. The total system length must consistently match what the Proximitor Sensor is calibrated for (typically 5 meters or 9 meters total)
Q:Is it backwards compatible with older Bently Nevada hardware?
A:Yes, the 3300 XL system components are designed to be backwards compatible with non-XL 3300 series 5 mm and 8 mm components. However, mixing XL and non-XL parts may reduce your overall system accuracy limits to the older standard's performance.
Q:What is the primary function of this cable?
A:It routes the high-frequency radio frequency (RF) signal from a 3300 XL Proximitor Sensor to an 8 mm or 5 mm eddy current proximity probe. It helps transmit static (position) and dynamic (vibration) measurements on rotating machinery.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330130-035-01-00 |
|
Cable Length Option |
3.5 meters (13.1 feet) |
|
Connector Protector and Cable Option |
Armored cable |
|
Output Resistance |
50 Ω |
|
Connector Material |
Gold-plated brass or goldplated beryllium copper. |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Agency Approval Option |
Not required |
|
