in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.3x114cmWeight:
0.15kgCountry of Origin: :
USADescription:

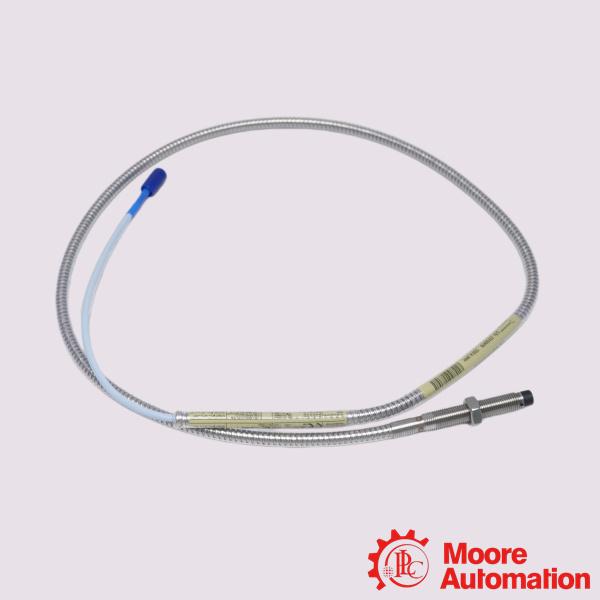

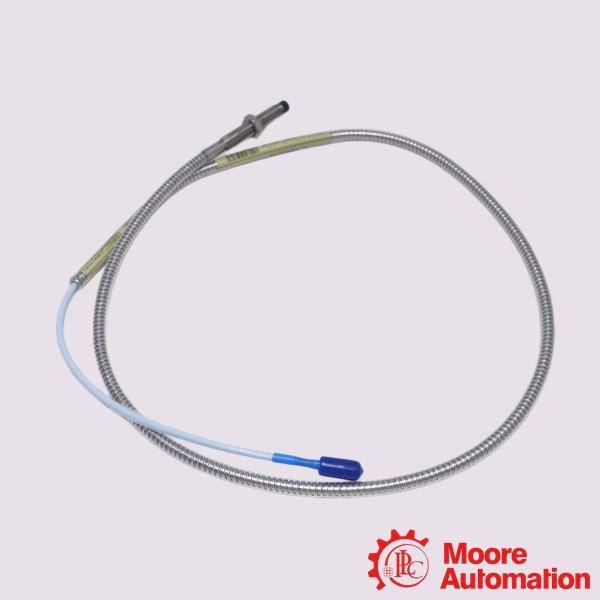

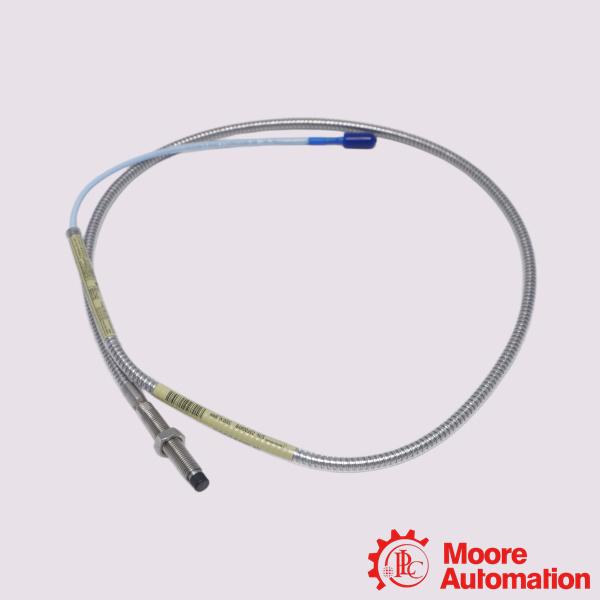

Bently Nevada 330102-12-60-10-02-05 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330102-12-60-10-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330102-12-60-10-02-05 is a metric M10x1 threaded proximity probe belonging to the industry-standard 3300 XL 8 mm Proximity Transducer System. It is primarily engineered for vibration, position, and speed monitoring on fluid-film bearing machinery like turbines and compressors.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Power Generation: Extensively used in conventional thermal, combined-cycle gas, nuclear, and hydroelectric power plants. It continuously monitors critical generators and steam/gas turbines supplying grid power.
Oil & Gas (Upstream & Downstream): Deployed on offshore drilling platforms, subsea production systems, refining facilities, and petrochemical processing plants.
Water & Wastewater Management: Installed on massive municipal engineering water distribution and treatment pumps.
Chemical & Petrochemical Processing: Monitors continuous-duty machinery processing hazardous compounds where unplanned downtime results in severe production losses.
Frequently Asked Questions (FAQ)
Q:What targets can this sensor measure without re-calibration?
A:By default, Bently Nevada factory-calibrates the 3300 XL Proximitor Sensor to AISI 4140 steel. Measuring other target metals (like stainless steel or aluminum) will alter the scale factor and requires special calibration from the factory.
Q:Can I mix this probe with older, non-XL 3300 components?
A:Yes. The 3300 XL 8 mm components are both electrically and physically interchangeable with older 3300-series 5 mm and 8 mm components. However, if you mix XL and non-XL hardware, the total loop performance defaults to the lower technical limits of the older system.
Q:How do I prevent cross-talk if installing multiple probes side-by-side?
A:Cross-talk occurs when two adjacent eddy-current fields overlap. For 8 mm probes, ensure a minimum physical separation distance of at least 40 mm (1.6 in) for axial measurements or 38 mm (1.5 in) for radial measurements to maintain a cross-talk interference level under 50 mV.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330102-12-60-10-02-05 |
|
Unthreaded Length Option |
1.2 in. |
|
Overall Case Length Option |
6.0 in |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
