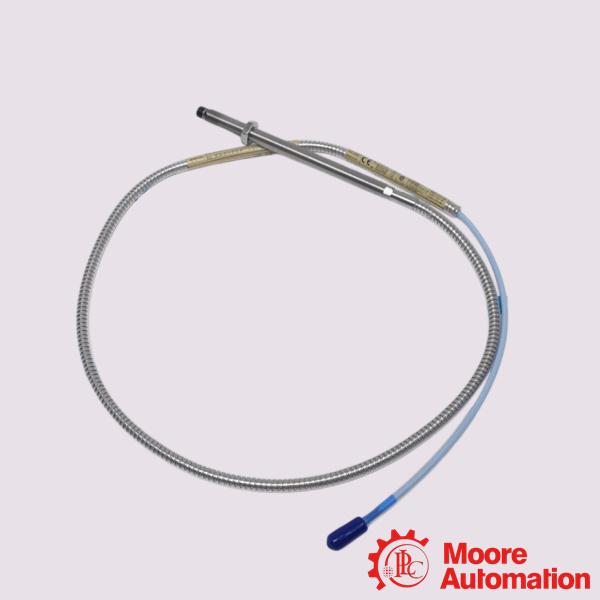

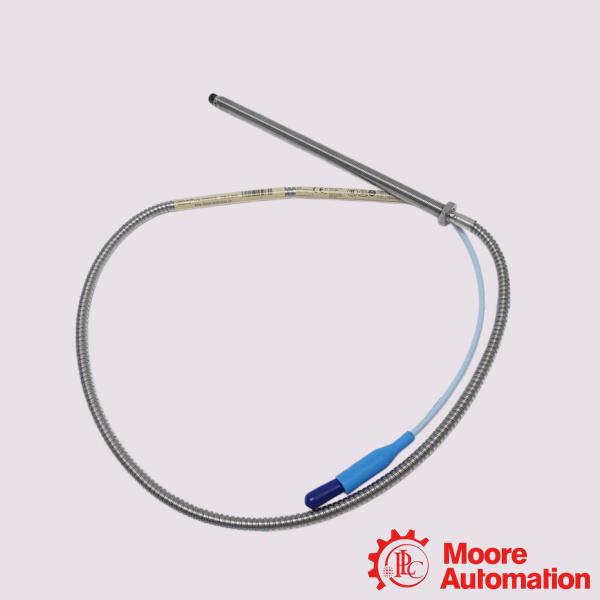

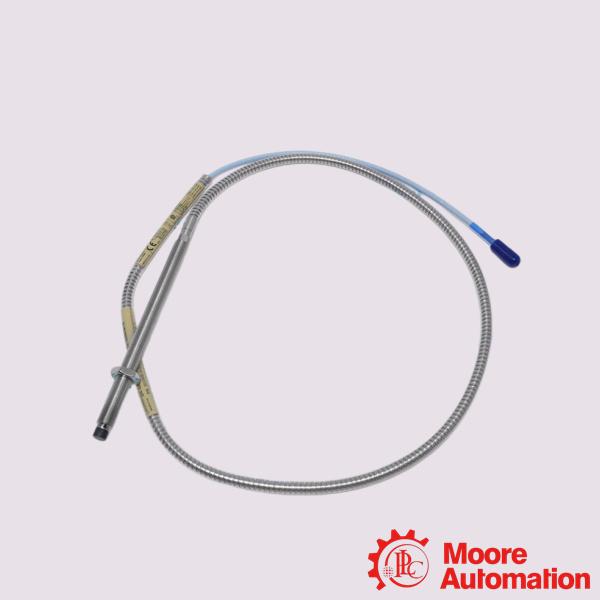

330104-00-20-15-12-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x121cm
Weight:
0.15kg
Country of Origin: :
USA
Description:
Bently Nevada 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330104-00-20-15-12-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-00-20-15-12-05 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330104-00-20-15-12-05 is a high-precision 3300 XL 8mm proximity probe engineered by Bently Nevada for critical machinery protection.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-00-20-15-12-05 is a high-precision 3300 XL 8mm proximity probe engineered by Bently Nevada for critical machinery protection. This eddy current sensor provides non-contacting displacement measurements, primarily used to monitor shaft radial vibration and axial thrust position. As a part of the 3300 XL series, the 330104-00-20-15-12-05 ensures compatibility with API 670 standards, delivering a linear scale factor of 7.87 V/mm (200 mV/mil) when integrated into a calibrated transducer system.

Application:

Power Generation: Monitors large steam turbines, gas turbines, generators, and cooling pumps. It tracks shaft radial vibration and axial thrust position to prevent rotor-to-stator contact.
Oil and Gas / Petrochemical: Installed on high-speed centrifugal compressors, turbo-expanders, and process pumps. It provides reliable continuous data in hazardous, explosive zones.
Chemical Processing: Tracks the rotor dynamics of mixers, reactors, and high-pressure process gas compressors exposed to aggressive environments.
Water and Wastewater Treatment: Safeguards heavy-duty raw water intake pumps, large treatment aeration blowers, and high-capacity distribution turbomachinery.

Frequently Asked Questions (FAQ)

Q:Can I swap a standard cable probe for this FluidLoc version?
A:Yes, the 330104-00-20-15-12-05 maintains the same electrical calibration as standard 3300 XL 8mm probes. However, ensure that the total system length (Probe + Extension Cable) matches the Proximitor sensor's calibration (typically 5.0 or 9.0 meters).
Q: Does this probe require a specific extension cable?
A:It requires a 3300 XL extension cable. For a 1.5-meter probe like the 330104-00-20-15-12-05, you must pair it with a 3.5-meter or 7.5-meter extension cable to reach standard system lengths.

Q:What is the benefit of the PPS tip?
A:The Polyphenylene Sulfide tip provides excellent resistance to chemical corrosion and thermal degradation, preventing the sensing coil from being damaged by aggressive industrial lubricants.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-00-20-15-12-05
Unthreaded Length Option	0 mm
Overall Case Length Option	20 mm
Total Length Option	1.5 meter (4.9 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Probe Tip Diameter:	8 mm
Thread Type	3/8-24 UNF-2A (Standard)
Operating Temperature	-51 °C to +177 °C (-60 °F to +351 °F)
