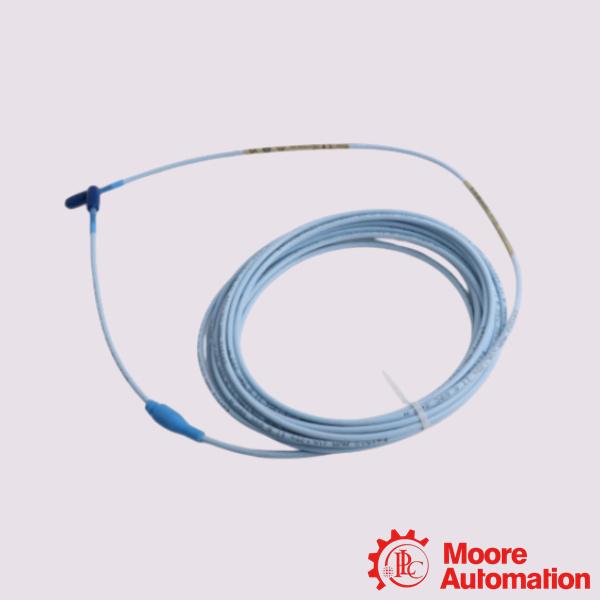

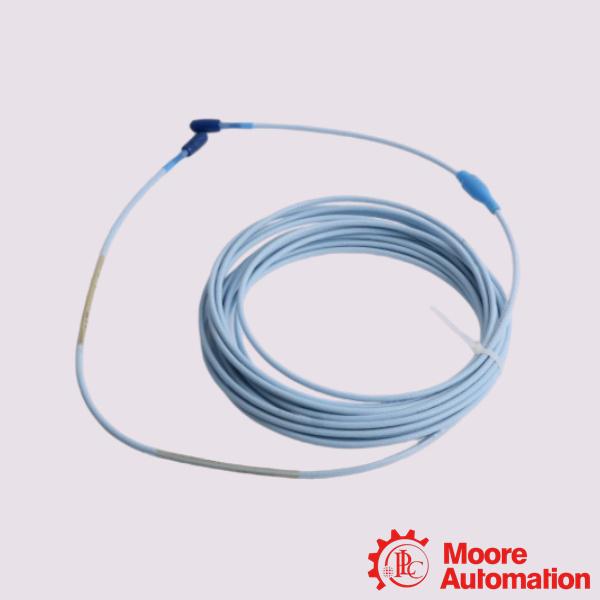

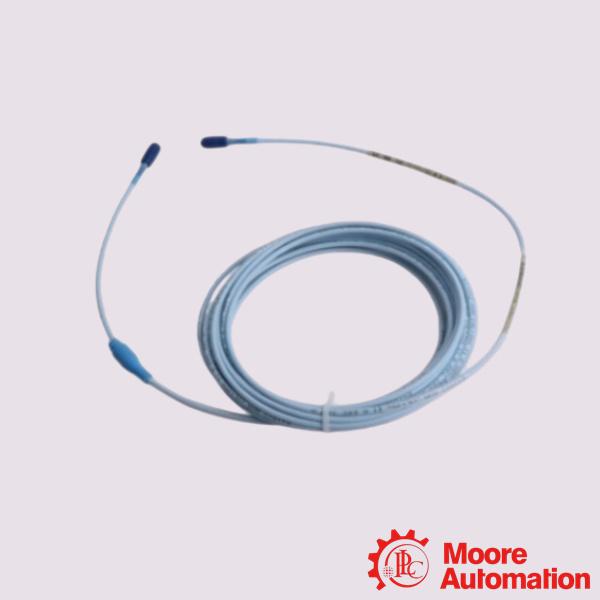

330130-075-02-05 | Bently Nevada 3300 XL Standard Extension Cable

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
20x20x2.5cm
Weight:
0.25kg
Country of Origin: :
USA
Description:
Bently Nevada 330130-075-02-05 3300 XL Standard Extension Cable

Inquiry now

Mfr. Part Number:	330130-075-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330130-075-02-05 3300 XL Standard Extension Cable

Full Description:	The 330130-075-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330130-075-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Power Generation Facilities: Used to continuously monitor heavy utility machinery including steam turbines, gas turbines, hydro turbines, and massive cooling tower fans.
Oil & Gas Operations: Deployed upstream, midstream, and downstream on offshore drilling platforms, gas processing facilities, and pipeline transmission stations.
Petrochemical & Chemical Refining: Installed across severe-duty chemical production areas to safeguard machinery running in volatile or highly regulated environments.
Heavy Manufacturing & Minerals: Used in steel mills, mining processing plants, and pulp and paper factories to monitor high-stress capital.

Frequently Asked Questions (FAQ)

Q:What systems and probes are compatible with this extension cable?
A:It is engineered primarily for the Bently Nevada 3300 XL 8 mm Proximity Transducer System. It is not compatible with 5 mm probe systems. However, it features excellent backward-compatibility, allowing it to seamlessly interchange with non-XL 3300 series 8 mm components without requiring recalibration.
Q: Can this cable prevent oil from leaking out of a machine?
A:While this specific model uses advanced insulation, it does not explicitly feature the full FluidLoc internal block unless ordered under specific alternative suffix options (such as the -10 variant). If your turbine or gearbox housing experiences heavy back-pressure, ensure the companion probe is a FluidLoc model to actively block fluid bypass through the cable core.

Q: Does this layout require individual bench calibration?
A:No. One of the hallmarks of the Bently Nevada 3300 XL platform is complete interchangeability. You can swap out a damaged 330130-075-02-05 cable with an identical unit instantly in the field without undergoing tedious manual calibration with the Proximitor sensor or probe.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330130-075-02-05
Cable Length Option	7.5 meters (24.6 feet)
Connector Protector and Cable Option	Standard cable with connector protector
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Case Material	AISI 303 or 304 stainless steel (SST).
