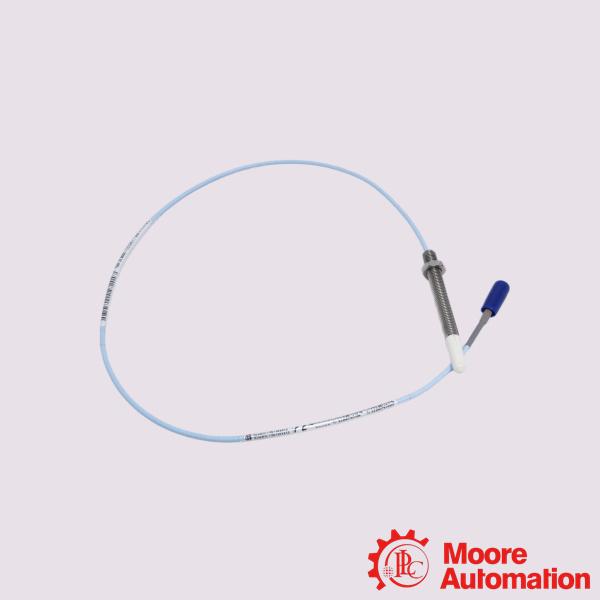

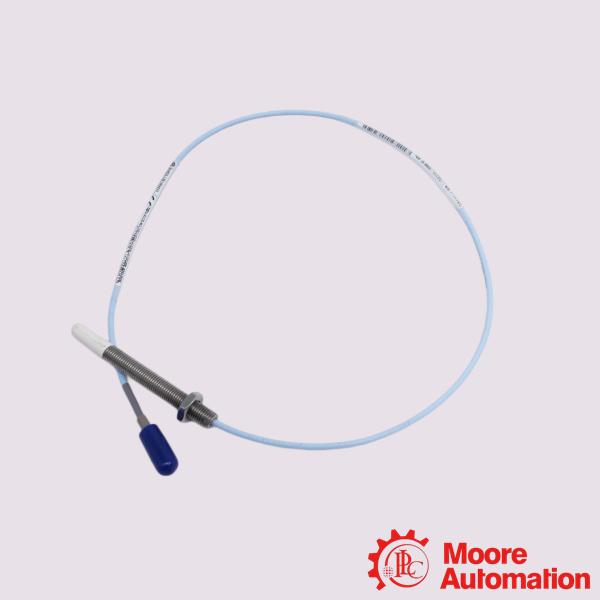

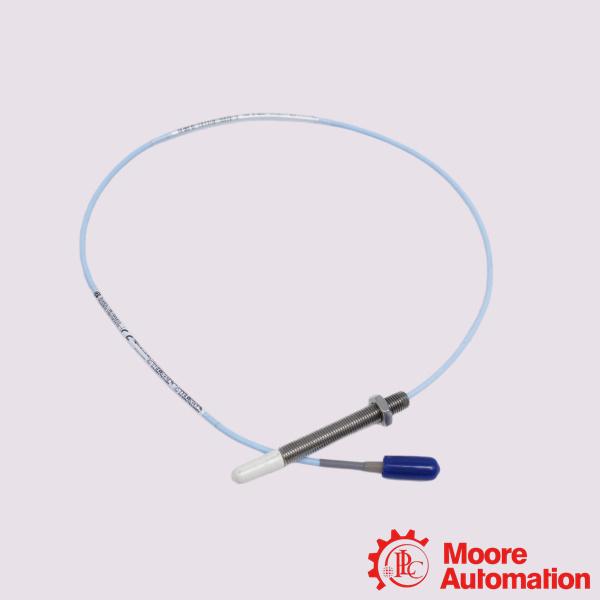

330903-04-10-10-01-00 | Bently Nevada 3300 NSv Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.3x1.1x65cm
Weight:
0.04kg
Country of Origin: :
USA
Description:
Bently Nevada 330903-04-10-10-01-00 3300 NSv Proximity Probes

Inquiry now

Mfr. Part Number:	330903-04-10-10-01-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330903-04-10-10-01-00 3300 NSv Proximity Probes

Full Description:	The Bently Nevada 330903-04-10-10-01-00 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The primary uses for the Bently Nevada 330903-04-10-10-01-00 are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Application:

Centrifugal Air Compressors: Monitoring high-speed, tight-clearance components for radial vibration and stability.
Refrigeration Compressors: Providing continuous shaft displacement tracking within compact industrial chilling systems.
Process Gas Compressors: Delivering critical machine protection measurements within oil, gas, and chemical processing facilities.
Fluid-Film Bearing Machinery: Measuring precise oil-film thickness and bearing clearances on small-scale rotating equipment.

Frequently Asked Questions (FAQ)

Q:What makes the "NSv" design unique compared to standard 3300 XL probes?
A:The NSv (Narrow Side View) line is built for setups with tight spatial restrictions. It handles counterbore, side-view, or rear-view constraints that would distort standard 5mm or 8mm probe signals. It is optimized for small targets, including shafts smaller than 51 mm (2 inches) or axial faces under 15 mm (0.6 inches).
Q: What are the torque limits for installing this M8 x 1 probe case?
A:To prevent sensor face distortion or stripping, torque the probe housing up to a maximum of 7.3 N·m (65 in·lb). The recommended installation torque is 5.1 N·m (45 in·lb).

Q:What are the operating environment limitations?
A:The probe tip and FEP coaxial cable can operate in severe thermal environments ranging from -52°C to +177°C (-62°F to +351°F). However, maintaining the probe in temperatures below -34°C (-30°F) for extended periods can degrade the internal fluid/pressure seal over time.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330903-04-10-10-01-00
Unthreaded Length Option	40 mm
Overall Case Length Option	10 mm
Total Length Option	1.0 meter (39 in)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector
Agency Approval Option	Not required
Output resistance	50 Ω
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
Recommended Gap Setting	1.0 mm (40 mils)
Operating Temperature	-52°C to +177°C (-62°F to+351°F)
