Product Description:

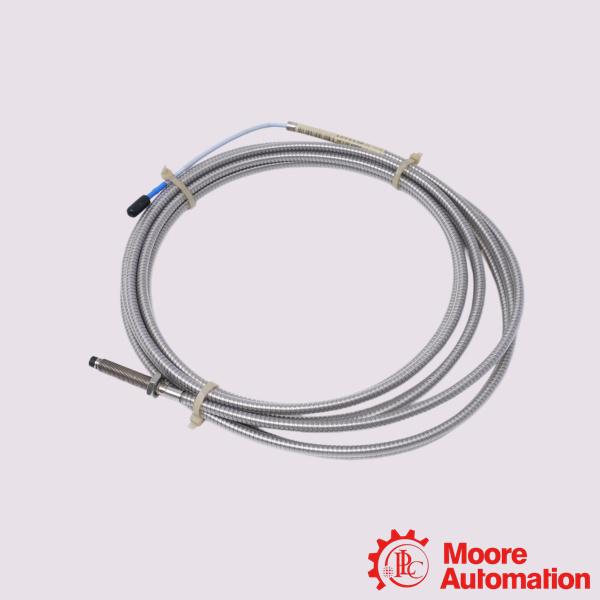

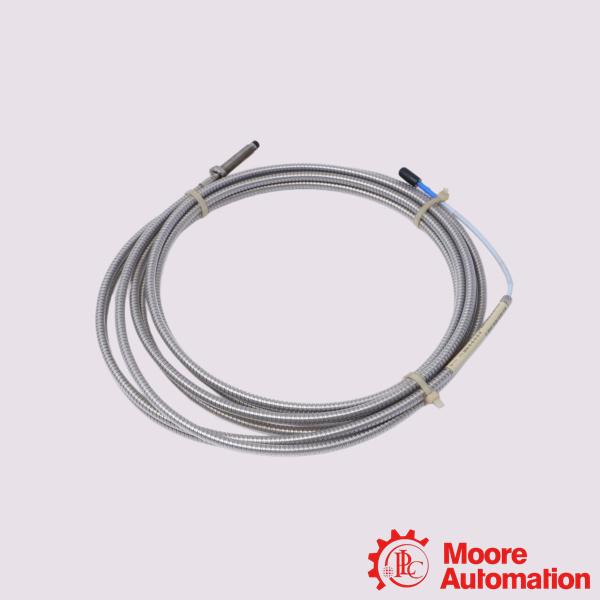

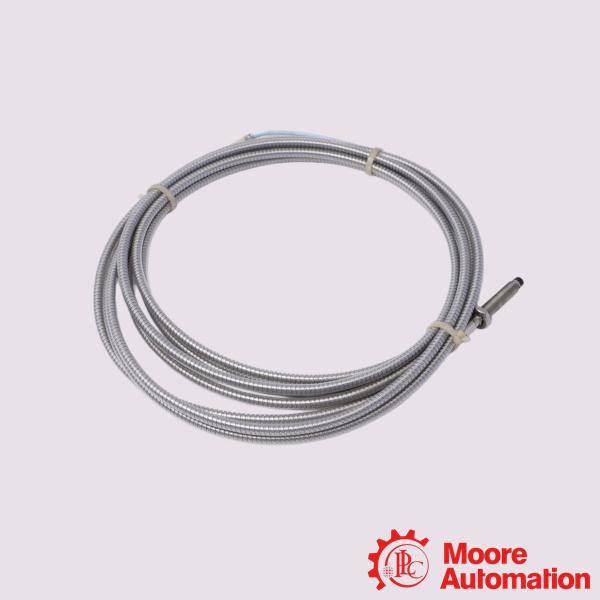

The 330104-00-05-50-02-05 3300 XL 8 mm Proximity Probes  provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements, and is primarily used for vibration and position measurement applications on fluid-film bearing machines, as well as
Keyphasor® and speed measurement applications.

Frequently Asked Questions (FAQ)

Q:What is the function and measurement style of this probe?
A:The probe relies on the eddy current principle to generate a high-frequency magnetic field from its tip. It measures the precise physical distance between its tip and an observed conductive surface (typically a Bently Nevada AISI 4140 steel target) without physical contact. It supports both static measurements (such as axial thrust position) and dynamic measurements
Q:Does this 5.0-meter probe require an extension cable?
A:No, you do not use an extension cable if your system configuration dictates a 5-meter total length. The 3300 XL system is designed to operate as either a 5-meter or 9-meter system total length. Because this specific probe contains an integral 5.0-meter cable, it connects directly into a 5-meter rated Proximitor Sensor. Adding an extension cable here would change the electrical length, ruin the calibration, and drop accuracy

Q:How robust is the physical armor coating?
A:The "-05" option designates flexible AISI 302 or 304 stainless steel (SST) armor covered by a smooth Fluorinated Ethylene Propylene (FEP) jacket. This adds severe-duty protection against physical mechanical abuse, oil absorption, and cutting fluids, while retaining flexibility during routing.
