330101-00-25-10-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
18x18x2cm
Weight:
0.1kg
Country of Origin: :
USA
Description:

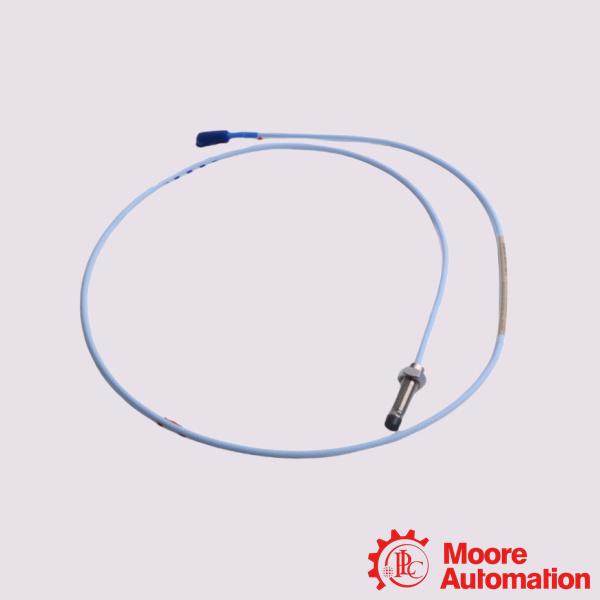

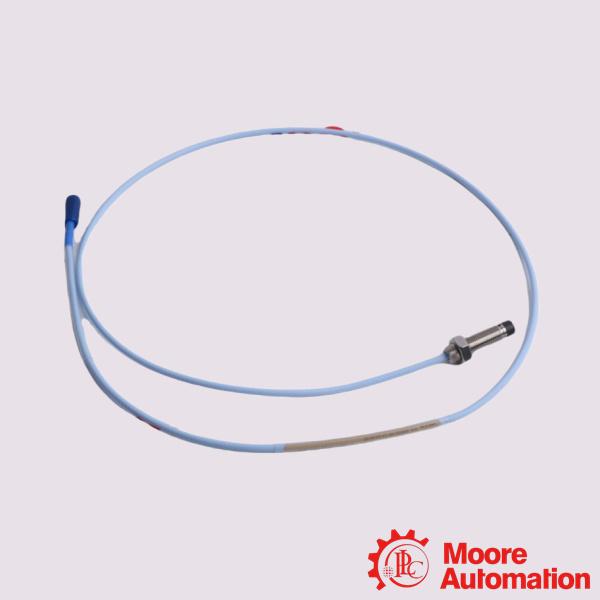

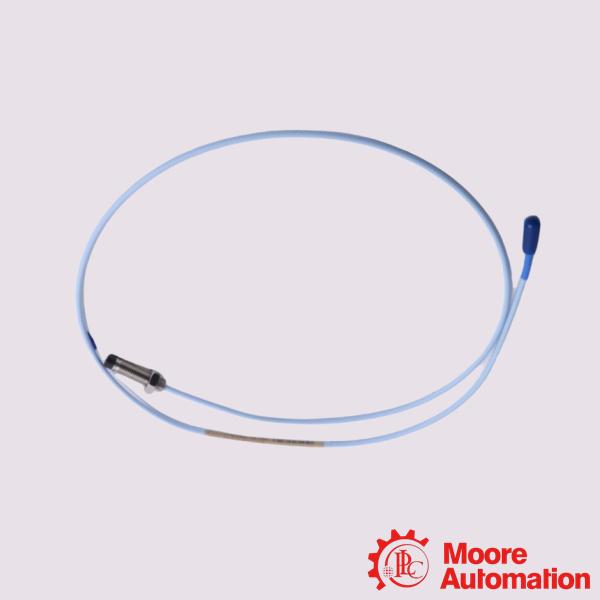

Bently Nevada 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-25-10-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probes

Full Description:	The 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Power Generation: Installed on large-scale steam turbines, gas turbines, generators, and cooling pumps.
Oil & Gas / Petrochemical: Integrated into centrifugal compressors, turbo-expanders, and high-pressure pumps deployed in refineries and offshore platforms.
Industrial Processing: Utilized on massive electric motors, fans, blowers, and gearboxes within pulp, paper, mining, and wastewater treatment plants.
Speed & Tachometer Measurements: Delivering precise RPM readings and phase-angle data using Keyphasor technology for complex machine diagnostics.

Frequently Asked Questions (FAQ)

Q:What is the operational purpose of this probe?
A:It tracks machinery health by using eddy current principles to monitor shaft vibration and thrust positions. It generates an output voltage that is directly proportional to the gap distance between its face and a conductive target surface.
Q:What type of target material does this probe require?
A:The probe is factory calibrated to a Bently Nevada standard AISI 4140 steel target. While it can detect other conductive metals, utilizing alternative targets will alter system calibration and degrade measurement accuracy

Q:What are the key technical limits of the probe?
A:The probe body operates within a temperature range of -51 °C to +177 °C. The internal cable design withstands up to 330 N (75 lbf) of tensile pull strength to prevent mechanical separation under stress

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-25-10-02-00
Unthreaded Length Option	0.0 in.
Overall Case Length Option	2.5 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS).
Standard Probe	-52°C to +177°C (-62°F to +350°F)
