330104-00-03-50-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

Description

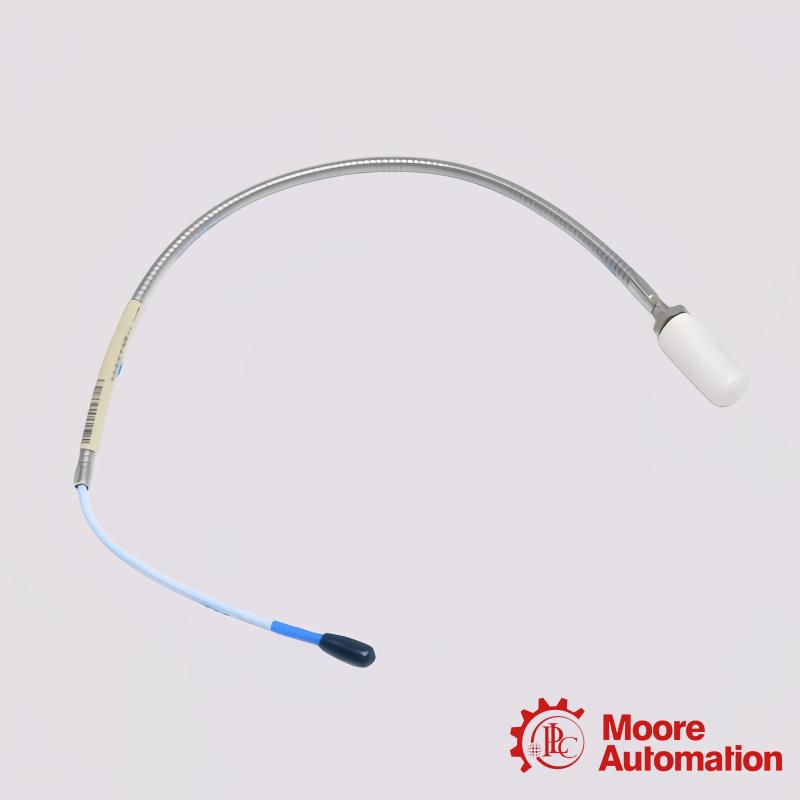

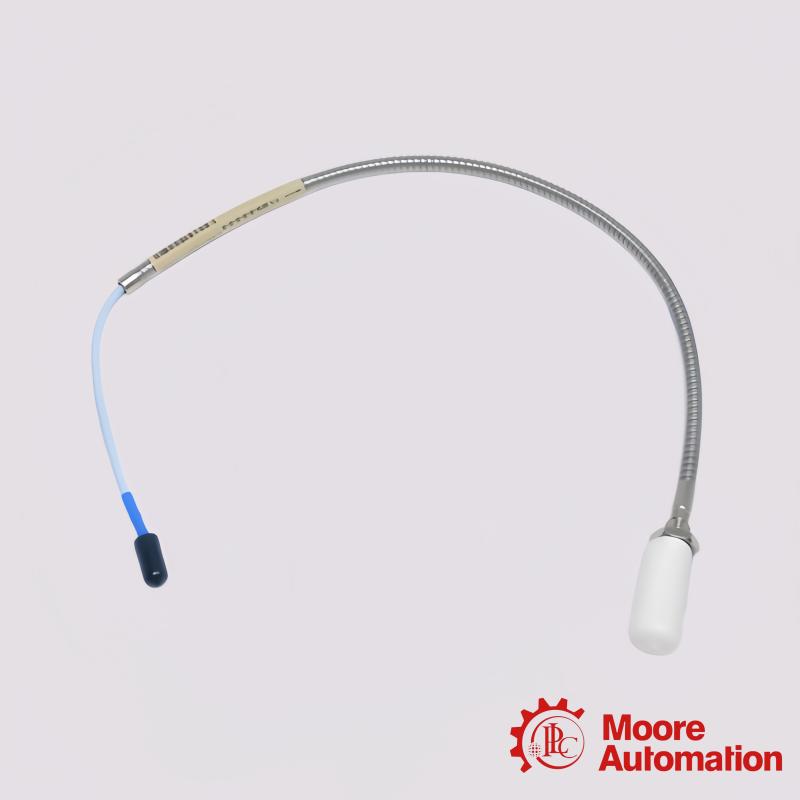

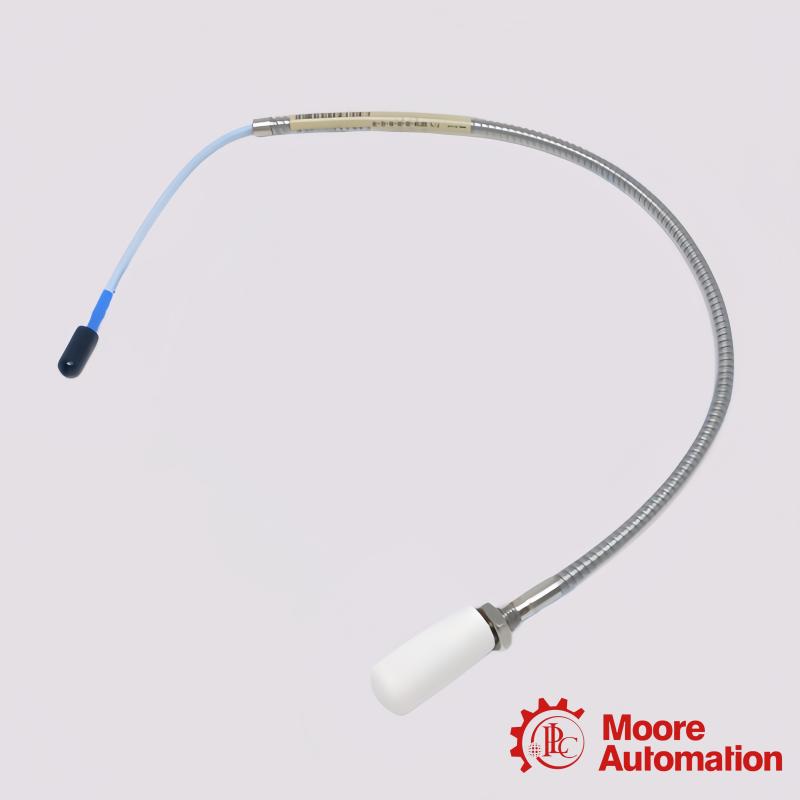

The Bently Nevada 330104-00-03-50-02-00 3300 XL 8 mm Proximity Probe is a high-performance proximity probe designed for use with the 3300 XL 8 mm Proximity Transducer System. It provides accurate non-contact measurement of shaft vibration, position, speed, and Keyphasor® signals in rotating machinery. Engineered for reliability and precision, the probe delivers excellent linearity, temperature stability, and full compliance with API 670 requirements when used as part of a complete 3300 XL system. Its backward-compatible design allows seamless integration with other 3300 Series 5 mm and 8 mm transducer system components, making it ideal for both new installations and system upgrades.

Parameter

MModel: 330104 -  3300 XL 8 mm Probe, M10 x 1 thread, with armor ⁽²⁾
Unthreaded Length Option: 00 - Not required
Overall Case Length Option: Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 03 = 30 mm
Total Length Option: 50 -5.0 meters (16.4 feet)
Connector and Cable-Type Optio: 02-Miniature coaxial ClickLoc
connector, standard cable
Agency Approval Option: 00 - Not required

Frequently asked questions

Q:What is the purpose of the Bently Nevada 330104-00-03-50-02-00 Proximity Probe?
A:The 330104-00-03-50-02-00 is an 8 mm proximity probe used in the 3300 XL Proximity Transducer System to provide non-contact measurement of shaft vibration, position, speed, and Keyphasor® signals in rotating machinery.

Q:What applications is the 330104-00-03-50-02-00 commonly used for?
A:This probe is commonly used for radial vibration monitoring, axial (thrust) position measurement, shaft speed detection, and phase reference measurements on turbines, compressors, pumps, motors, and other fluid-film bearing machines.

Q:Is the 330104-00-03-50-02-00 compatible with other 3300 Series components?
A:Yes. The probe is designed for use with compatible 3300 XL extension cables and Proximitor® sensors and offers backward compatibility with many non-XL 3300 Series 5 mm and 8 mm transducer system components, simplifying upgrades and maintenance.

Application areas

The Bently Nevada 330104-00-03-50-02-00 3300 XL 8 mm Proximity Probe is widely used in rotating machinery monitoring applications, including:

• Shaft vibration measurement on fluid-film bearing machines.
• Radial and axial position monitoring of rotating equipment.
• Keyphasor® reference signal generation for shaft analysis.
• Speed and tachometer measurements in critical machinery.
• Condition monitoring and protection of turbines, compressors, pumps, motors, and generators.
