330104-00-10-50-02-00 | Bently Nevada Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x66cm
Weight:
0.323 kg
Country of Origin: :
USA
Description:

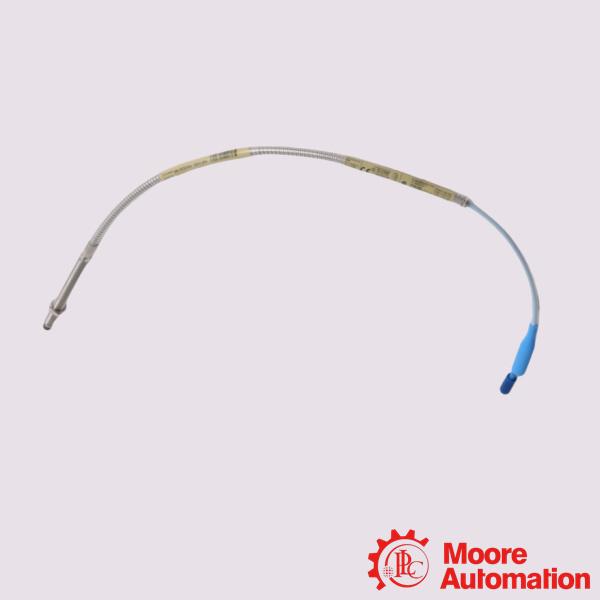

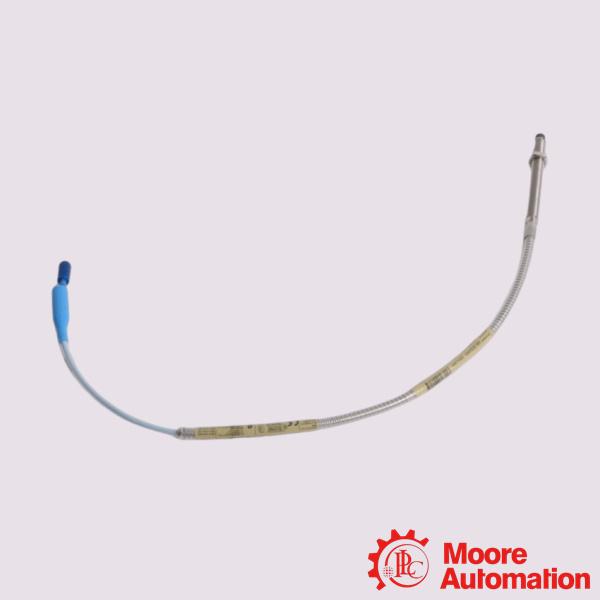

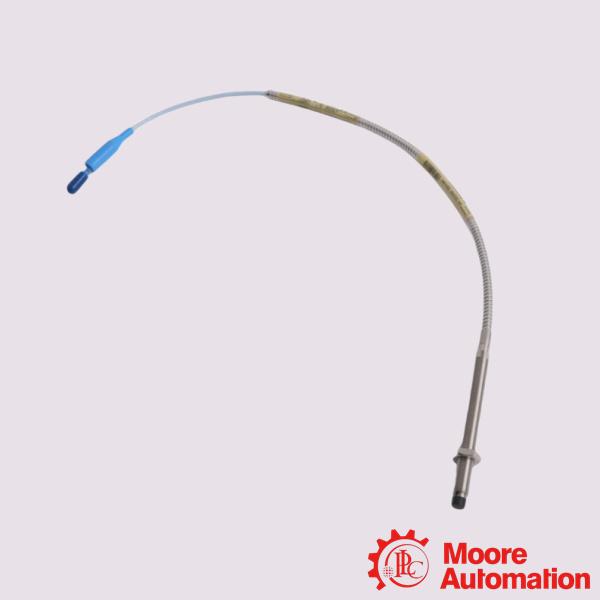

Bently Nevada 330104-00-10-50-02-00 Proximity Probes

Inquiry now

Mfr. Part Number:	330104-00-10-50-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-00-10-50-02-00 Proximity Probes

Full Description:	The Bently Nevada 330104-00-10-50-02-00 8mm proximity probe combines industrial durability with precision measurement.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-00-10-50-02-00 3300 XL 8 mm Proximity Probe delivers high-precision vibration and position monitoring for industrial machinery. Designed with a 5.0-meter (16.4-foot) armored cable and a Miniature Coaxial ClickLoc connector, it ensures reliable performance in harsh environments.

Application:

Power Generation: Installed on large steam turbines, hydro turbines, combustion gas turbines, generators, and exciters.
Metallurgy & Mining: Deployed on heavy-duty industrial gearboxes, ventilation fans, and plant-wide rotating infrastructure.
Chemical Manufacturing: Integrated into process air compressors, fans, blowers, and large electric motor drives.
Radial Vibration Monitoring: Measuring shaft dynamic movement inside fluid-film bearings to detect issues like imbalance, misalignment, or rotor instabilities.

Frequently Asked Questions (FAQ)

Q:What is the measuring range and sensitivity?
A:The sensor provides a nominal linear range of 2 mm (80 mils). Its standard scale factor sensitivity is 200 mV/mil (7.87 V/mm) when paired with a matching Proximitor Sensor calibrated to AISI 4140 steel
Q:What is the frequency response?
A:.It operates dynamically from 0 to 5 kHz (±3 dB), allowing it to capture high-speed shaft vibrations.

Q:What materials are used to construct this probe?
A:The case is machined out of AISI 304 stainless steel. The green probe tip is molded using high-strength Polyphenylene Sulfide (PPS) plastic.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number:330104-00-10-50-02-00
Unthreaded Length Option	0 mm
Overall Case Length Option	10 mm
Total Length Option	5.0 meters (16.4 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
