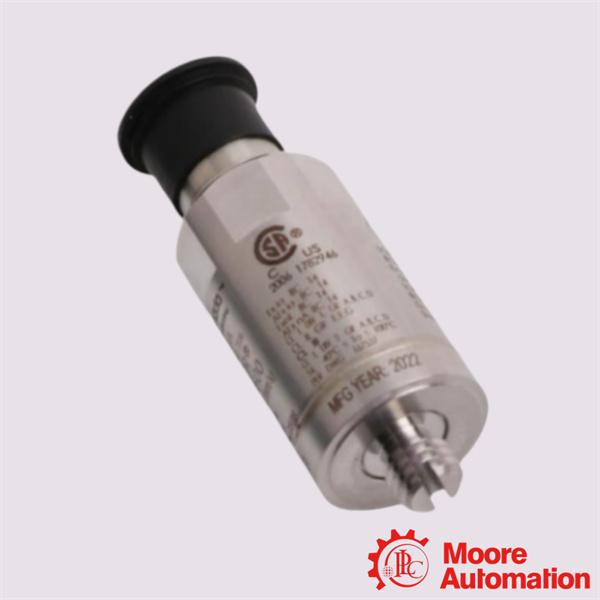

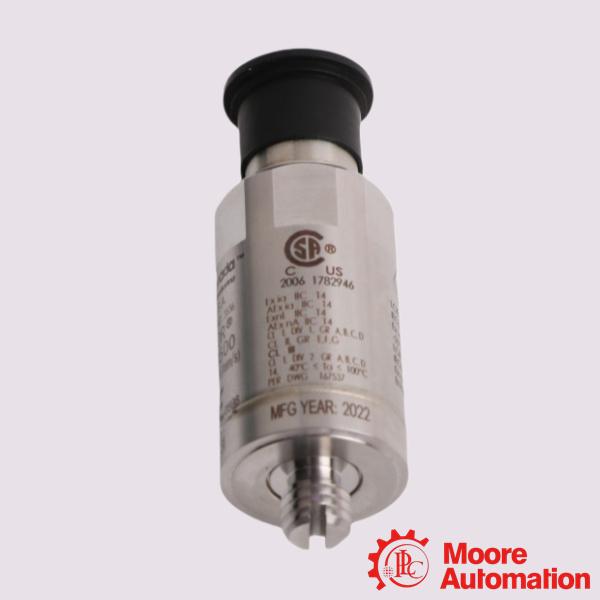

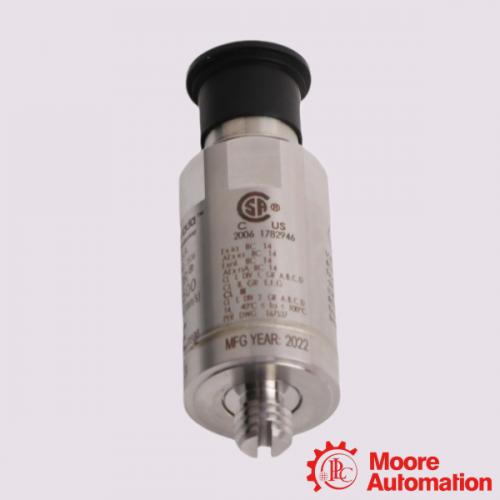

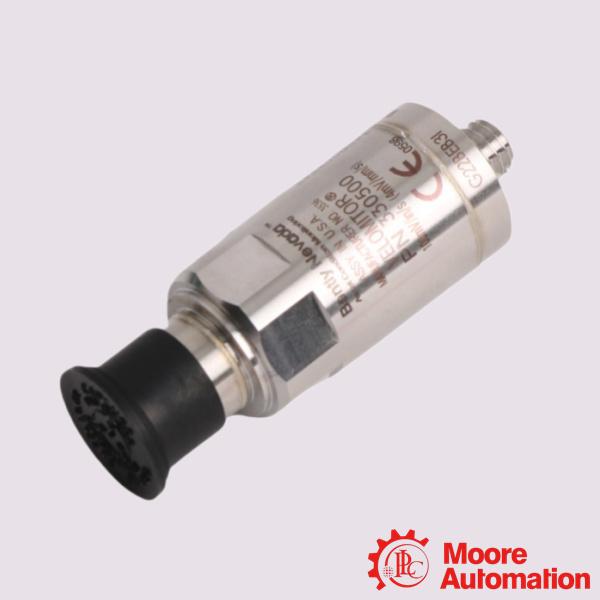

330500-07-00 | Bently Nevada Velomitor Piezo-velocity Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2.53CM× 6.32CM
Weight:
0.142kg
Country of Origin: :
USA
Description:
Bently Nevada 330500-07-00 Velomitor Piezo-velocity Sensor

Inquiry now

Mfr. Part Number:	330500-07-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330500-07-00 Velomitor Piezo-velocity Sensor

Full Description:	The Bently Nevada 330500-07-00 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing,casing, or structural vibration. The 330500-07-00 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design

Application:

Pulp & Paper / Manufacturing: Deployed on drying cylinders, grinders, and large electric motor casings.
Water & Wastewater Treatment: Monitored on large water intake pumps, distribution pumps, and wastewater aerators.
Oil & Gas / Petrochemical: Installed on critical assets like centrifugal compressors, heavy-duty pumps, and turboexpanders.
Power Generation: Used on industrial gas turbines, steam turbines, generators, and cooling tower fans to prevent catastrophic mechanical failures.

Frequently Asked Questions (FAQ)

Q:What is the exact torque specification for mounting?
A:The sensor requires a torque of \(2.7\text{ to }4.5\text{ N}\cdot\text{m}\) (\(24\text{ to }40\text{ in}\cdot\text{lbf}\)). Over-torquing can permanently warp the internal piezoelectric crystal substrate, whereas under-torquing reduces high-frequency mechanical transmission.
Q:What is the maximum acceptable field cable run?
A:The sensor driving output can support up to \(305\text{ meters}\) (\(1,000\text{ feet}\)) of approved twisted-shielded low-capacitance cable without tracking any high-frequency signal attenuation.

Q:Does it matter what orientation angle I install the sensor?
A:No. Because it is solid-state with no moving parts or mechanical springs, it can be inverted, oriented horizontally, or angled vertically without shifting its calibrated sensitivity.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 330500-07-00
Overall length	63.2 mm (2.49 inch)
Housing diameter	25.3 mm (0.995 inch)
Hexagonal cross-side dimension	15/16 inch
Mounting thread	3/8-24 UNF-2B
Minimum thread depth	6.4 mm (0.250 inch)
Maximum drill depth	14.0 mm (0.550 inch)
Mounting surface countersunk hole	2.7 mm (0.500) diameter, 0.8 mm (0.030) depth
Electrical interface	2-pin, MIL-C-5015 socket
