in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2cmWeight:
0.2kgCountry of Origin: :
USADescription:

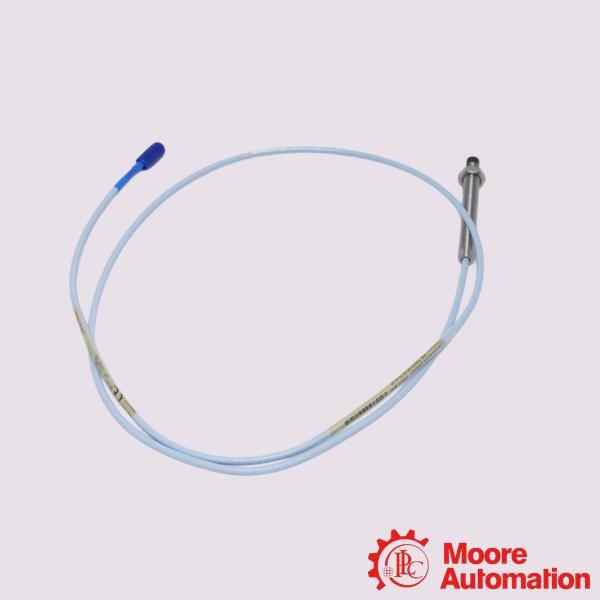

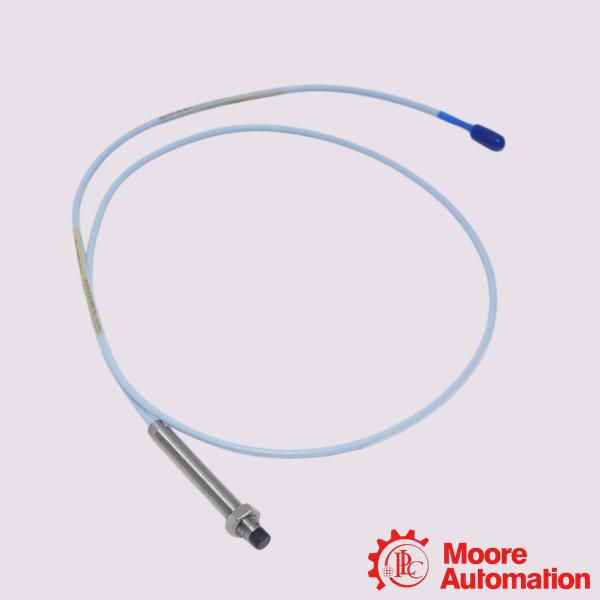

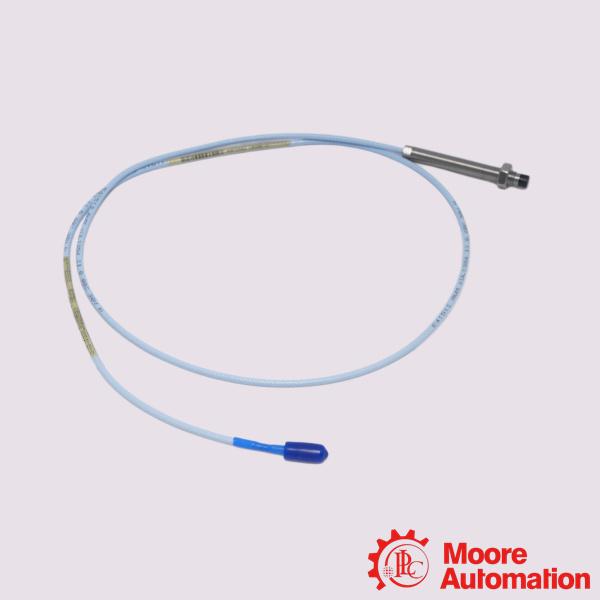

Bently Nevada 330101-02-12-15-01-CN 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-02-12-15-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-02-12-15-01-CN is an industry-standard 3300 XL 8 mm Proximity Probe for non-contact condition monitoring. This specific part configuration is built to track physical changes in high-speed, critical rotating machinery.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Steam Turbines: Installed inside or outside the high/low-pressure housings of steam turbine shafts to verify stability at grid speed.
Hydroelectric Generators: Tracks heavy shaft radial runout and thrust position under erratic hydraulic loads.
Main Feedwater & Boiler Pumps: Safeguards auxiliary high-power balance-of-plant pumps that run critical water loops.
Crude Oil & Product Pumps: Monitors large-scale pipeline shipping pumps to prevent catastrophic bearing drop or shaft friction.
Frequently Asked Questions (FAQ)
Q:What material is the probe tip made from?
A:The probe tip is constructed from high-grade Polyphenylene Sulfide (PPS) plastic. It is chemically molded to the stainless steel probe body via Bently Nevada's proprietary TipLoc technology to prevent fluid leakag.
Q:Do I need an extension cable for this model?
A:Yes. Because it features a 1.5-meter total cable length option, it must be paired with a matching 3300 XL extension cable and Proximitor Sensor to complete a standard 5-meter or 9-meter overall system calibration loop.
Q:Can this probe be installed in hazardous explosive areas?
A:Yes. The -CN suffix certifies it for hazardous environments under ATEX, IECEx, and Chinese NEPSI standards. It is safe for Zone 1 and explosive gas environments when connected to barriers.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-02-12-15-01-CN |
|
Unthreaded Length Option |
0.2 in |
|
Overall Case Length Option |
1.2 in |
|
Total Length Option |
1.5 meter (4.9 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
