in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2cmWeight:
0.2kgCountry of Origin: :
USADescription:

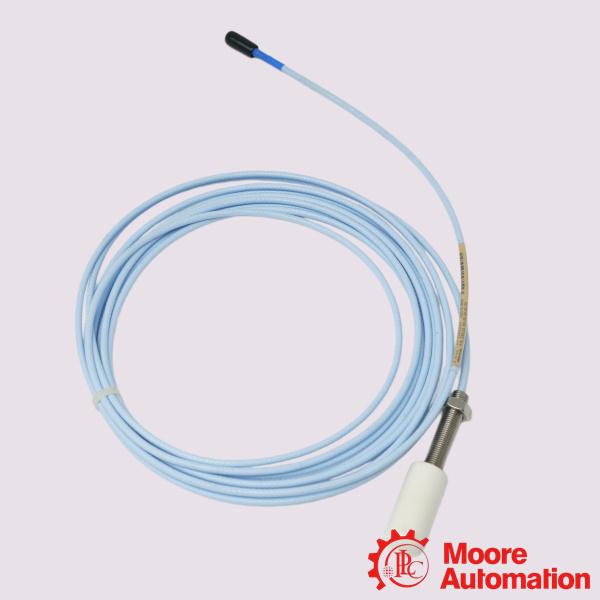

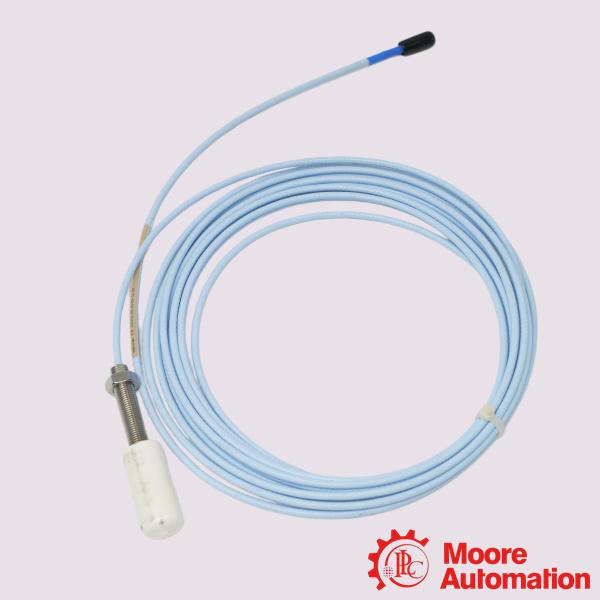

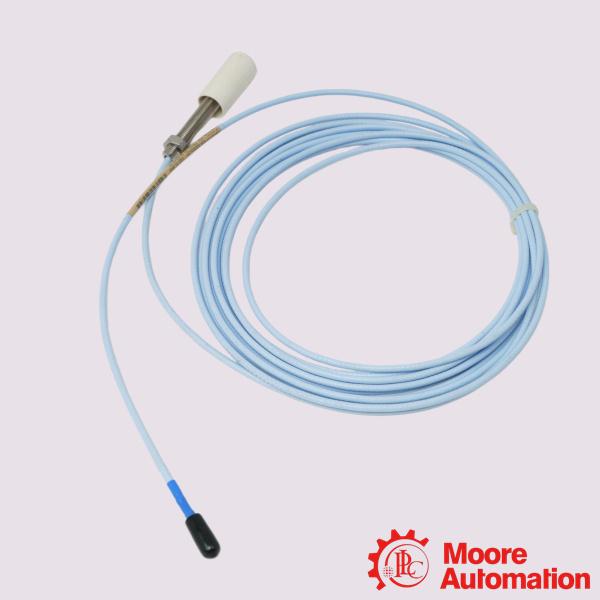

Bently Nevada 330101-02-12-15-02-00 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-02-12-15-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-02-12-15-02-00 is a highly specialized configuration of the 3300 XL 8 mm Proximity Probe. It is a non-contact eddy current sensor for machinery condition monitoring, specifically tracking vibration, shaft displacement, and rotational speed.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Radial Vibration: Measuring dynamic shaft motion within the bearing clearances to detect unbalance, misalignment, or mechanical looseness.
Axial Thrust Position: Measuring static movement along the longitudinal axis of the shaft to prevent catastrophic internal contact between rotor blades and stator casings.
Speed & Keyphasor Timing: Tracking precise RPM and phase reference angles by observing a notch or keyway cut into the spinning shaft.
Power Generation Plants: Monitors vibration and rotor position in thermal or hydroelectric plan.
Frequently Asked Questions (FAQ)
Q:Can I mix this probe with older, non-XL Bently Nevada component?
A:Yes. The 3300 XL 8 mm components are physically and electrically interchangeable with non-XL 3300 5 mm and 8 mm systems. However, mixing components defaults the overall performance envelope to the legacy (non-XL) system limits.
Q:What is the typical gap voltage range for setup?
A:The normal operating gap voltage range is -9 VDC to -11 VDC when the probe is centered in its linear range. A standard installation typically targets -10.0 VDC.
Q:What type of measurements can this probe perform?
A:The system provides a precise output voltage directly proportional to the distance between the probe tip and a conductive target. It measures both static changes (axial shaft position) and dynamic variances (radial shaft vibration). It is also widely used for Keyphasor reference and speed detection.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-02-12-15-02-00 |
|
Unthreaded Length Option |
0.2 in |
|
Overall Case Length Option |
1.2 in. |
|
Total Length Option |
1.5 meter (4.9 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
