in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
19x19x2cmWeight:
0.1kgCountry of Origin: :
USADescription:

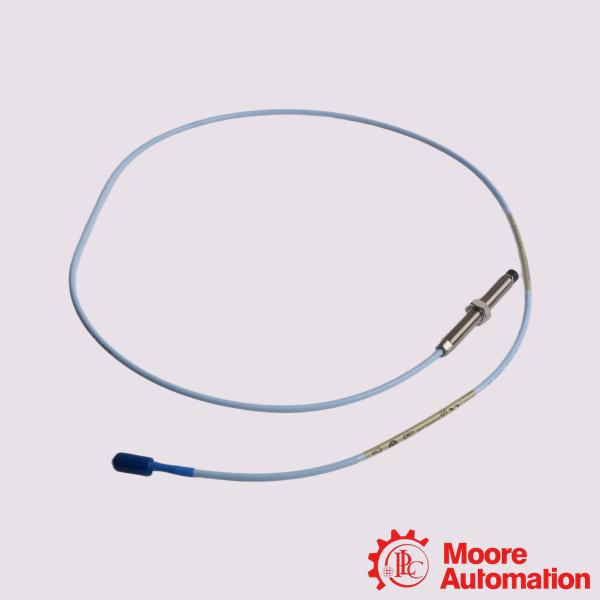

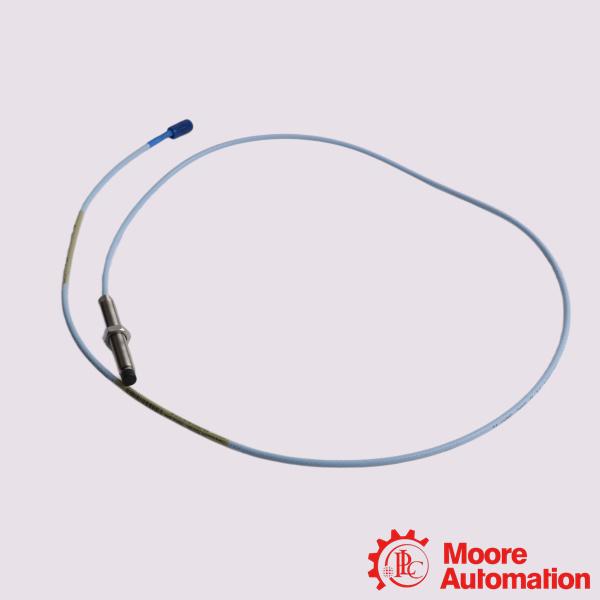

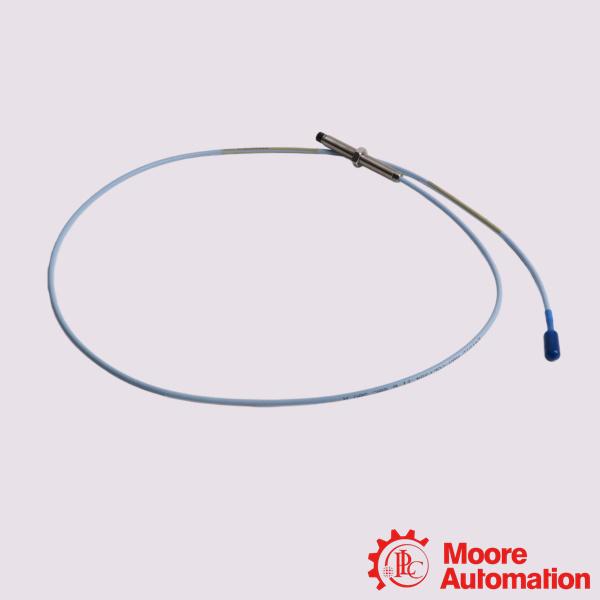

Bently Nevada 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe
| Mfr. Part Number: |
330101-00-40-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-00-40-10-02-00 is an industry-standard 3300 XL 8 mm proximity probe without armor, featuring a 3/8-24 UNF thread. It serves as a vital component in machinery condition monitoring systems to measure fluid-film bearing vibration and shaft positioning.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Power Generation: Widely used in thermal, hydroelectric, and nuclear power plants for critical equipment monitoring.
Oil & Gas: Covers the entire value chain, including upstream exploration, midstream pipeline transport, and downstream refining.
Petrochemicals and Chemicals: Ensures long-term continuous operation of high-stakes production lines.
Heavy Industry and Mining: Applied to heavy machinery operating in harsh, demanding environments.
Frequently Asked Questions (FAQ)
Q:Are individual parts interchangeable if a component breaks?
A:Yes, all 3300 XL 8 mm system components feature total physical and electrical interchangeability. You can swap out a damaged probe or Proximitor sensor without performing manual bench calibration.
Q:What target material is this sensor calibrated to?
A:By default, the system components are factory-calibrated to AISI 4140 steel. If you measure a target made of a different conductive material, you must request custom calibration or apply scale correction factors.
Q:Does this 1-meter probe require an extension cable?
A:No, 1-meter systems do not connect to an extension cable. The probe's integrated 1.0-meter cable hooks up directly to a 1-meter calibrated 3300 XL Proximitor Sensor to maintain the necessary system length.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-40-10-02-00 |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
4.0 in. |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
Not required |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
