in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.3x111cmWeight:
0.1kgCountry of Origin: :
USADescription:

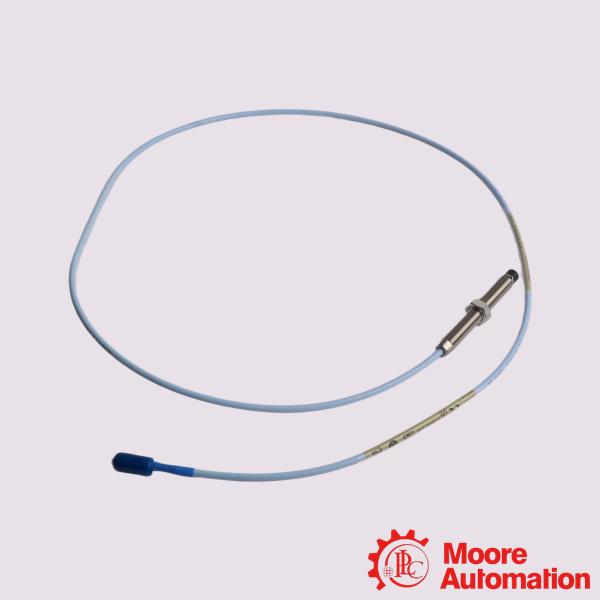

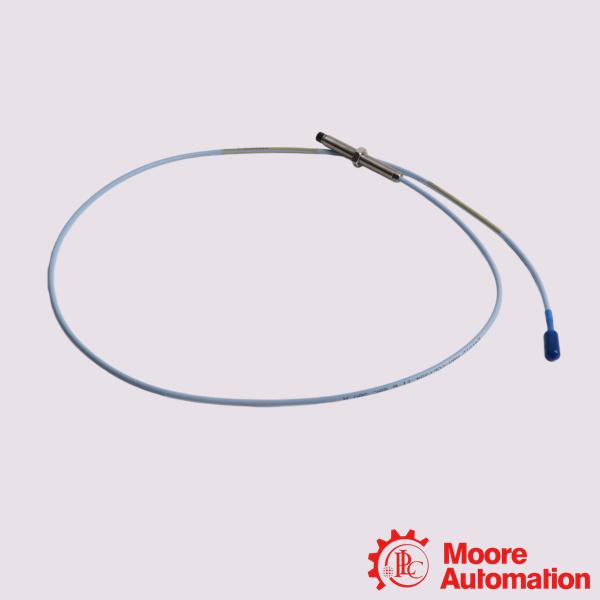

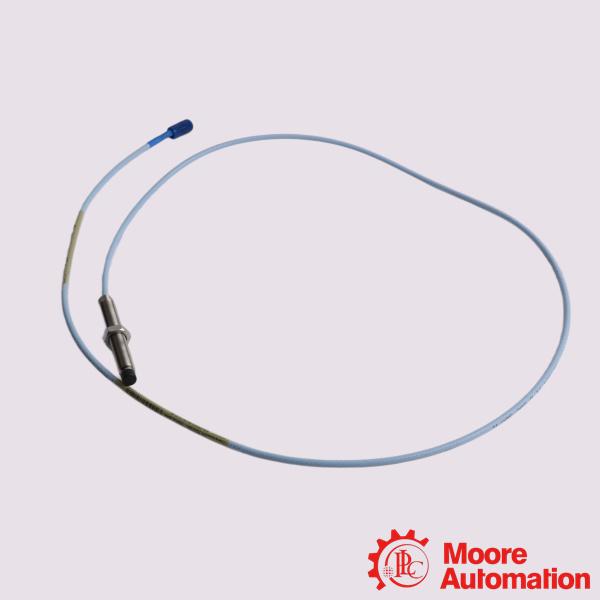

Bently Nevada 330101-00-44-05-02-05 3300 XL 8 mm Proximity Probe
| Mfr. Part Number: |
330101-00-44-05-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-00-44-05-02-05 is a 3300 XL 8 mm proximity probe featuring a 3/8-24 UNF thread and no armor. It is for critical vibration and position monitoring on fluid-film bearing machinery.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Industrial Gas & Steam Turbines: Tracks high-speed rotor health and thermal expansion displacements.
Centrifugal & Axial Compressors: Measures dynamic imbalances and thrust loads to prevent catastrophic surges.
High-Output Electric Motors: Monitors bearing wear and air-gap stability under varying electrical loads.
Large Boiler Feed & Process Pumps: Detects cavitation impacts, misalignment, and seal degradation over time.
Frequently Asked Questions (FAQ)
Q:How do I check if the probe cable is damaged?
A:You can perform an electrical continuity check with a multimeter. Set it to resistance mode and verify there is no short circuit (infinite resistance) between the cable conductor and the machine ground.
Q:Does it require calibration when mixed with other parts?
A:No, the 3300 XL series supports complete interchangeability. You can swap the probe, extension cable, and Proximitor sensor without bench calibration.
Q:What is the linear measurement range of this probe?
A:The probe has a linear range of 0.25 mm to 2.0 mm (10 to 80 mils). It generates a stable output voltage of -200 mV/mil (-7.87 mV/µm) proportional to the distance from the target.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-44-05-02-05 |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
4.4 in. |
|
Total Length Option |
0.5 meter (1.6 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
Not required |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
