in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
24x17x2cmWeight:
0.15kgCountry of Origin: :
USADescription:

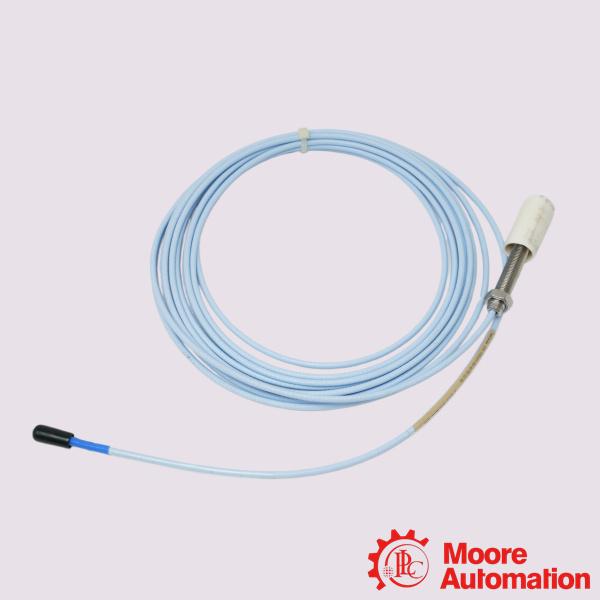

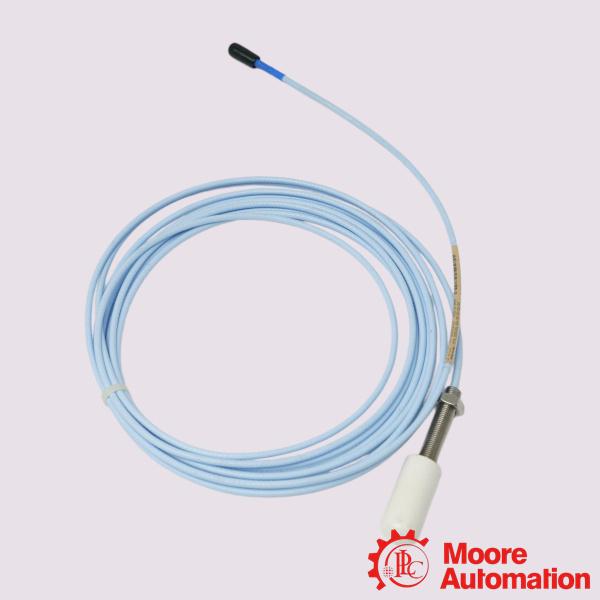

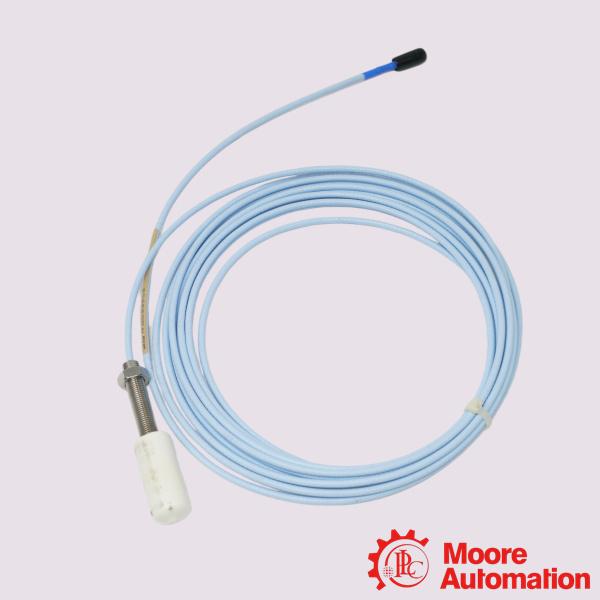

Bently Nevada 330101-00-25-10-01-05 3300 XL 8 mm Proximity Probe
| Mfr. Part Number: |
330101-00-25-10-01-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-00-25-10-01-05 is a 3300 XL 8 mm proximity probe to measure static position and dynamic vibration on fluid-film bearing machines.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
Application:
Centrifugal Compressors: Tracks vital shaft movements in high-speed gas compressors to maintain seal integrity and prevent stall conditions.
Pipeline Pumps: Monitors large crude oil and refined product pumps across vast transport networks to ensure mechanical reliability.
Gas and Steam Turbines: Operates within high-temperature, critical energy-generation infrastructure to detect bearing degradation early.
Main Steam Turbines: Protects massive base-load generators by monitoring critical bearing clearances and shaft thermal growth.
Frequently Asked Questions (FAQ)
Q:Does this probe require an extension cable?
A:Yes, it requires a 4-metre extension cable to create a standard 5-metre total system length, or an 8-metre extension cable if pairing with a 9-metre Proximitor Sensor. The 1.0-metre cable on this probe cannot connect directly to a proximity sensor alone unless it is a specialized 1-metre system.
Q:What target material is this system calibrated to?
A:By default, the 3300 XL system is factory-calibrated to AISI 4140 steel. If your machine shaft uses a different metal alloy, the scale factor will shift, requiring custom calibration or a correction factor.
Q:Can I mix this probe with older, non-XL 3300 components?
A:Yes, they are physically and electrically interchangeable. However, if you mix this 3300 XL probe with a non-XL extension cable or older Proximitor Sensor, your overall system performance defaults down to the lower specifications of the older non-XL line.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-25-10-01-05 |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
2.5 in. |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
