in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
21x19x1.5cmWeight:
0.05kgCountry of Origin: :
USADescription:

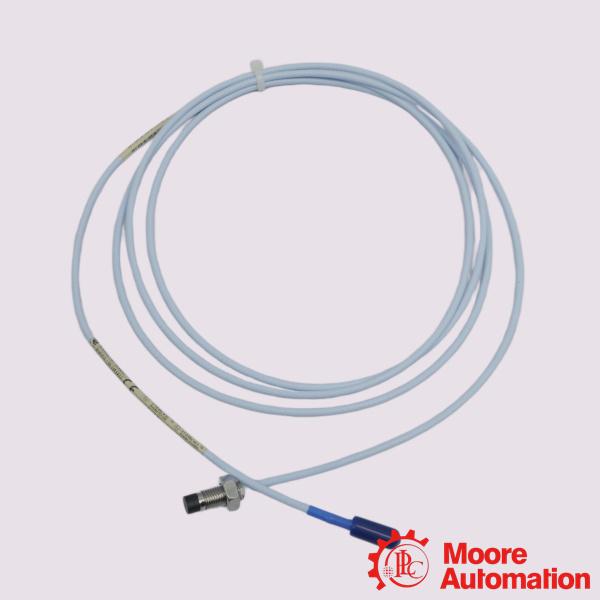

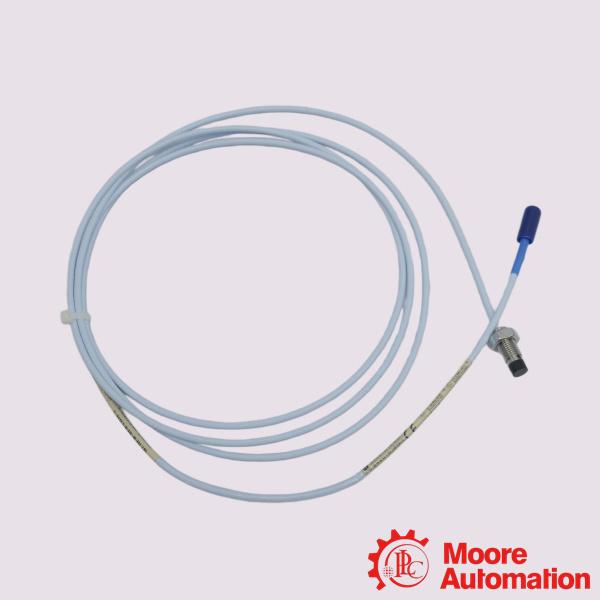

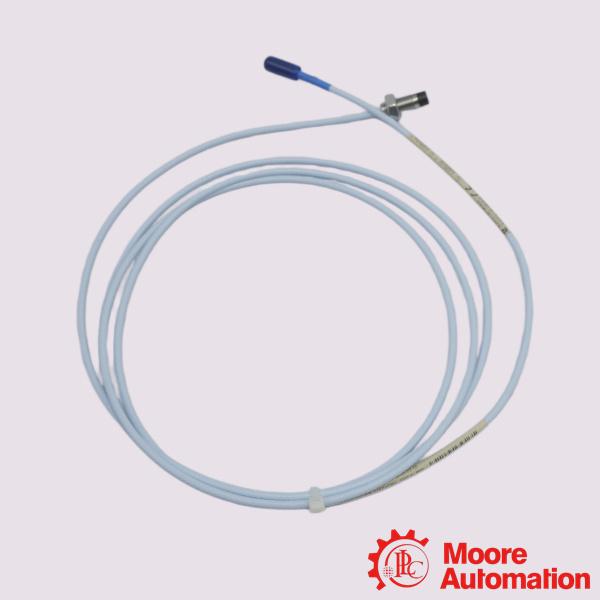

Bently Nevada 330101-00-08-20-12-CN 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-00-08-20-12-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The 330101-00-08-20-12-CN refers to a Bently Nevada 3300 XL 8 mm Proximity Probe with standard 3/8-24 UNF threading and no armor. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Marine & Paper Mills:Ship auxiliary turbo units, paper machine rolls and refiners. Gold-plated ClickLoc connectors resist high workshop humidity.
Heavy Industry:Steel furnace blowers, cement kiln exhaust fans, mine ventilation fans. Rugged PPS probe tip resists minor mechanical impact.
Chemical Factories:High-speed fluid-film bearing compressors, circulation pumps and agitators for continuous shaft orbit and bearing wear monitoring.
Oil & Petrochemical:Centrifugal compressors, refinery process pumps, pipeline booster sets. Fits standard -52°C ~ +177°C casing temperature environments.
Frequently Asked Questions (FAQ)
Q:What matching system components for this 2m FluidLoc probe?
A:Pair with 5-meter 330180 Proximitor plus 3m standard extension cable (330130-030). Total probe + extension length must equal the sensor’s rated 5m system length. Not compatible with 1m Proximitor.
Q:What benefit does FluidLoc cable bring?
A:The FluidLoc internal barrier prevents oil, lubricants and process liquid from traveling out of machine housings along the cable inner core. Ideal for oil-filled turbine and compressor casings.
Q:Does this probe carry hazardous area certifications?
A:No, suffix -12 is cable option only with no agency approvals. Order with suffix -05 if CSA, ATEX or IECEx hazardous area certificates are needed.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-08-20-12-CN |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
0.8 in. |
|
Total Length Option |
2.0 meters (6.6 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
