in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
21x19x1.5cmWeight:
0.05kgCountry of Origin: :
USADescription:
Bently Nevada 330101-00-08-20-02-053300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-00-08-20-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

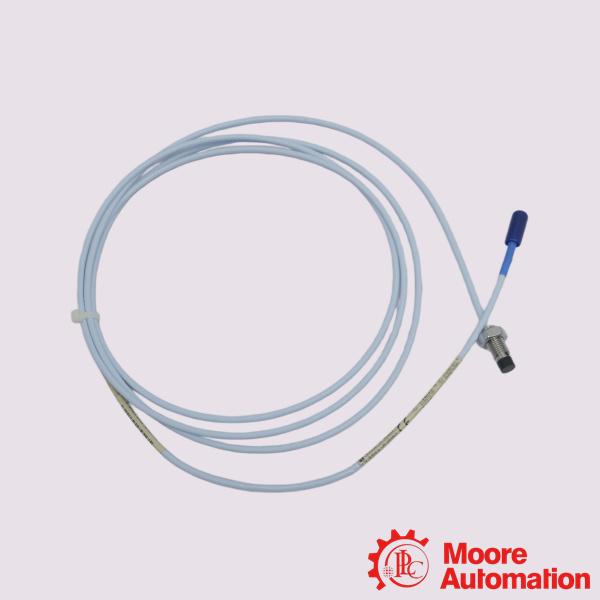

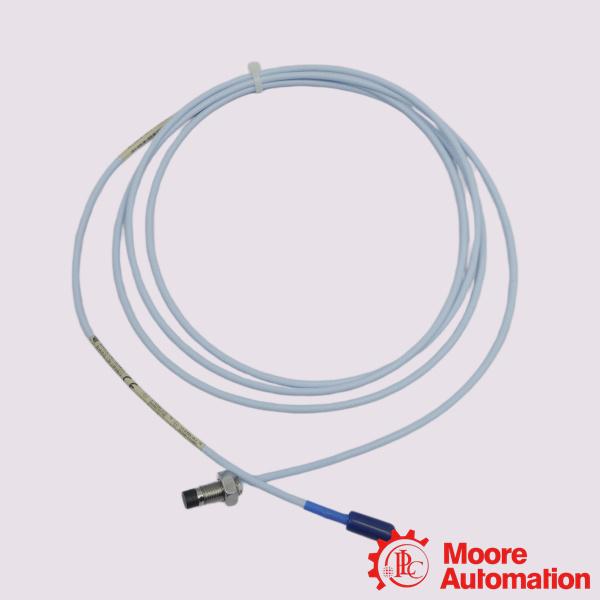

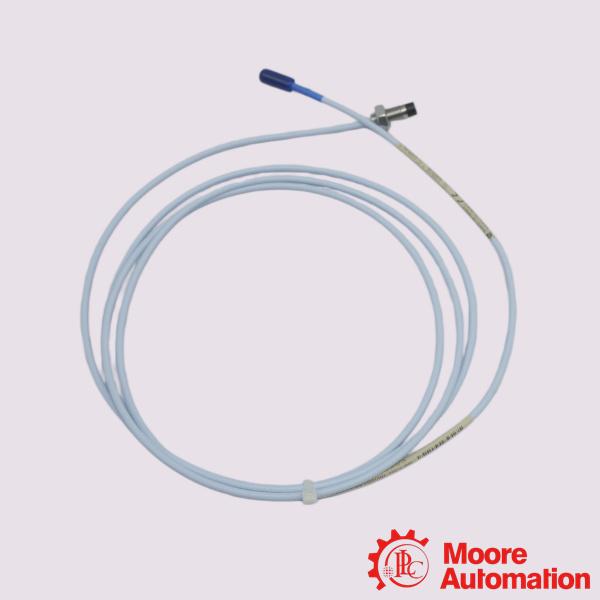

The Bently Nevada 330101-00-08-20-02-05 is a 3300 XL 8 mm Proximity Probe. This industrial-grade, non-contact eddy current displacement sensor measures static shaft position and dynamic shaft vibration. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Chemical Plants:High-speed fluid-film bearing compressors, circulation pumps, agitators for shaft orbit and bearing wear continuous trending.
Oil & Petrochemical:Centrifugal gas compressors, refinery process pumps, pipeline booster trains. Standard -52°C ~ +177°C temperature range fits most compressor casings.
Power Generation:Steam/gas turbines, turbo generators, boiler feed pumps, large ID/FD fans. Performs radial vibration, thrust position, Keyphasor phase and overspeed monitoring, fully API 670 compliant.
Oil & Petrochemical:Centrifugal gas compressors, refinery process pumps, pipeline booster trains. Standard -52°C ~ +177°C temperature range fits most compressor casings.
Frequently Asked Questions (FAQ)
Q:What matching system parts for this 2m probe?
A:Must pair with 330180 5-meter Proximitor + 3m extension cable (33013-030). Total probe + extension length shall equal Proximitor rated 5m length. Not compatible with 1m Proximitor.
Q:Factory calibrated target material?
A:Default calibration on AISI 4140 steel. Aluminum, stainless steel shafts shift scale factor and void interchangeability tolerance. Custom target calibration available via -05 certification option.
Q:Mechanical cable restrictions?
A:Probe head pull strength 330N; connector joint pull limit 270N. Minimum cable bend radius 25.4mm, smaller bends damage triaxial cable performance.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-08-20-02-05 |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
0.8 in. |
|
Total Length Option |
2.0 meters (6.6 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
