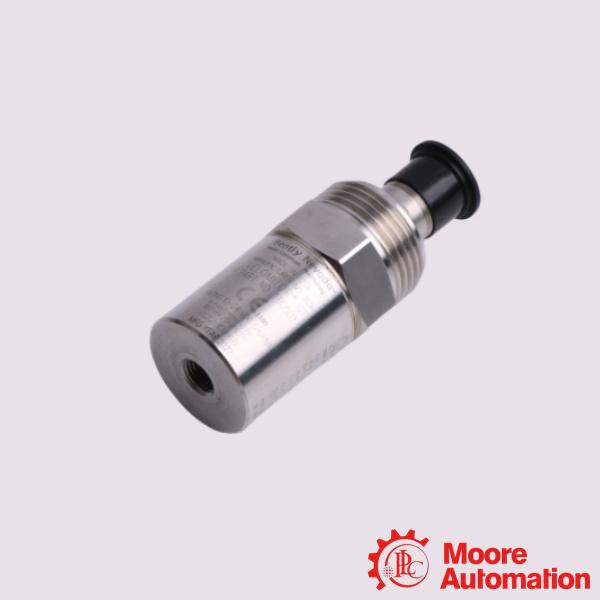

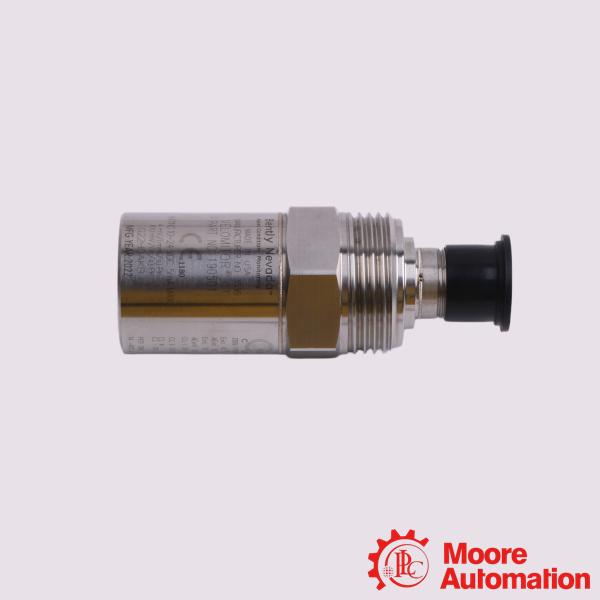

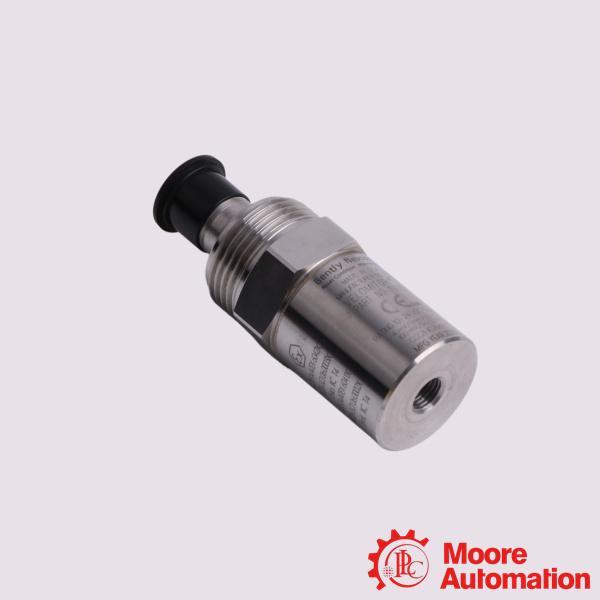

190501-23-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-23-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-23-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-23-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-23-99-01 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas (Petrochemical / Refineries): Deployed on massive cooling loops and hazardous-area fin-fans.
Power Generation: Protects slow-speed cooling equipment in thermal and nuclear power plants.
Chemical Processing: Built with a 316L stainless steel housing to withstand corrosive atmospheres.
Water & Wastewater Treatment: Monitors large water pump stations and cooling basin mechanisms

Frequently Asked Questions (FAQ)

Q:What is the sensitivity of this sensor?
A:The sensor has a scale factor sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5% at room temperature (+20°C to +30°C) and 100 Hz.
Q:What is the maximum vibration range it can measure?
A:The maximum velocity range is 63.5 mm/s pk (2.5 in/s pk). Note that high-frequency vibration components exceeding 10g pk above 1 kHz can reduce this dynamic operational window.

Q:Are the internal electronics grounded to the casing?
A:No. The internal electronics are completely isolated from the 316L stainless steel outer case to avoid ground loops.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-23-99-01
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.0-in 11.5 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
