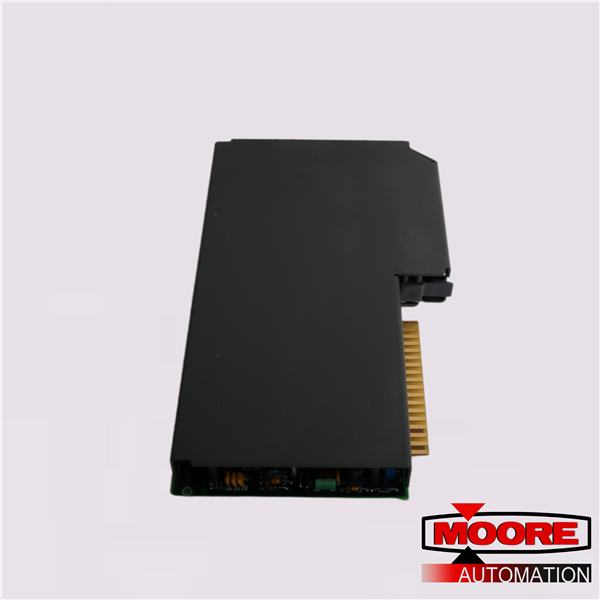

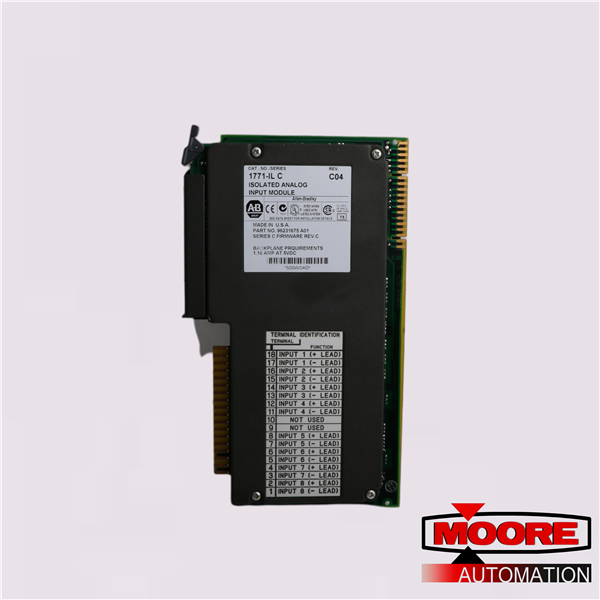

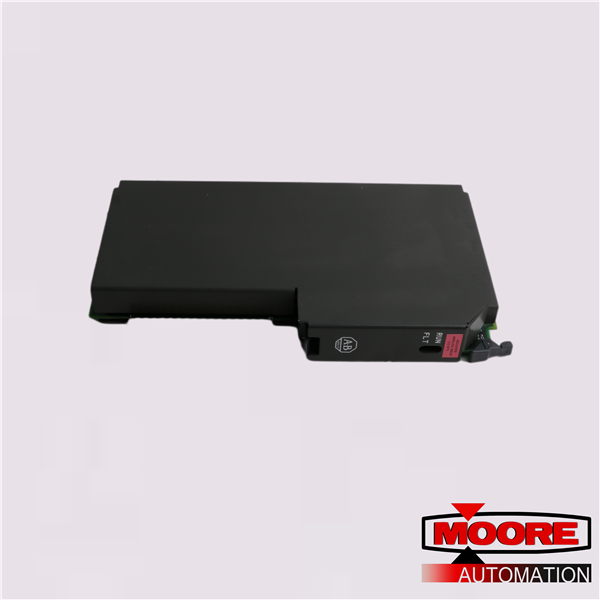

1771-IL/C | Analog Input Module

in stock#

Brand/ Manufacturer:
Dimensions:
5.1 cm x 27.9 cm x 15.2 cm
Weight:
0.9 kg
Country of Origin: :
USA
Description:
1771-IL/C Analog Input Module

Inquiry now

Mfr. Part Number:	1771-IL/C

Manufacturer:

Description:	1771-IL/C Analog Input Module

Full Description:	1771-IL/C Analog Input Module This module has Eight (8) fully isolated differential input channels configurable for Voltage and Current signal ranges such as 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, 4 to 20mA, 0 to 20mA, and -20 to +20mA.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 1771-IL is a PLC5 isolated analog input module that is compatible for installation with any 1771 I/O chassis. This module has Eight (8) fully isolated differential input channels configurable for Voltage and Current signal ranges such as 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, 4 to 20mA, 0 to 20mA, and -20 to +20mA. This module is used with Block transfer instructions such as BTW and BTR for sending and receiving analog data and instructions.
The 1771-IL is an analog input module with Eight (8) fully isolated differential input channels. This module belongs to the legacy PLC5 Programmable Logic Controller (PLC) platform that is manufactured by . This module is compatible for use with instruments that provides voltage and current signals. Specifically, signal range supported by this controller are 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, for Voltage and 4 to 20mA, 0 to 20mA, and -20 to +20mA for Current signals.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Automation
Brand
Part Number/Catalog No.	1771-IL
Number of Inputs & Outputs	8 Isolated (1000 Volt) Differential
Module Type	Analog Input
Chassis Compatibility	Any chassis
Channel Update/Resolution	500 ms/8 channels; 15 bits + sign
No. of I/O	8 Differential
Data Format	Natural Binary or BDC Scaling to +/- 9999
Resolution	16-bit binary over full range
Backplane Current	1.3 Amperes
Accuracy	Voltage: Typical - 0.01% of full scale range @ 25oC Maximum - 0.05% of full scale range @ 25oC Current: Typical - 0.06% of full scale range @ 25oC Maximum - 0.1% of full scale range @ 25oC (Includes 0.05% when using internal current resistor
