2094-AC09-M02-S | PLC Servo Drive

in stock#

Brand/ Manufacturer:
PLC
Dimensions:
12.5x18.2x22.5cm
Weight:
2.56 kg
Country of Origin: :
USA
Description:

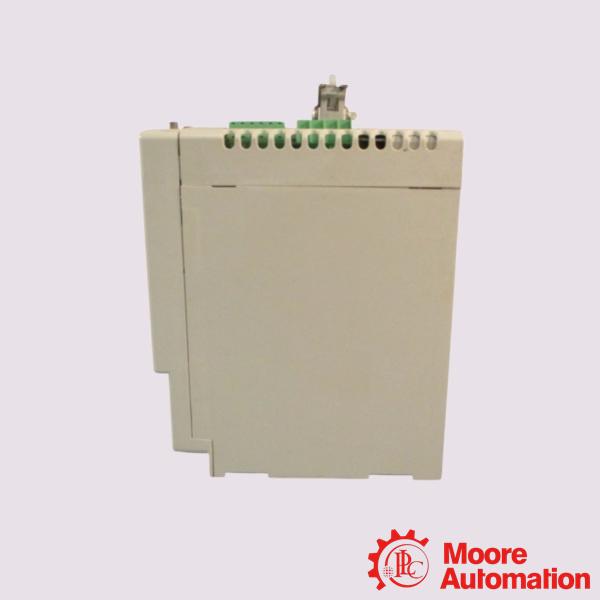

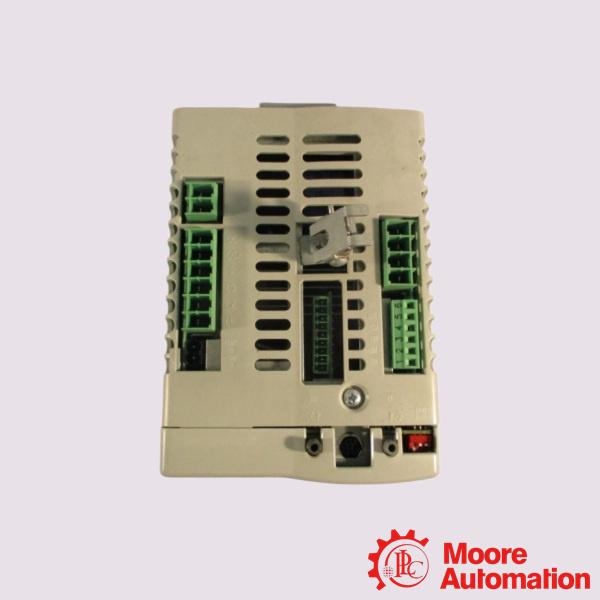

PLC 2094-AC09-M02-S Servo Drive

Inquiry now

Mfr. Part Number:	2094-AC09-M02-S

Manufacturer:	PLC

Description:	PLC 2094-AC09-M02-S Servo Drive

Full Description:	The 2094-AC09-M02-S Servo Drive is a Kinetix 6000 Integrated Axis Module (IAM) with a 6 kW converter

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for PLC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

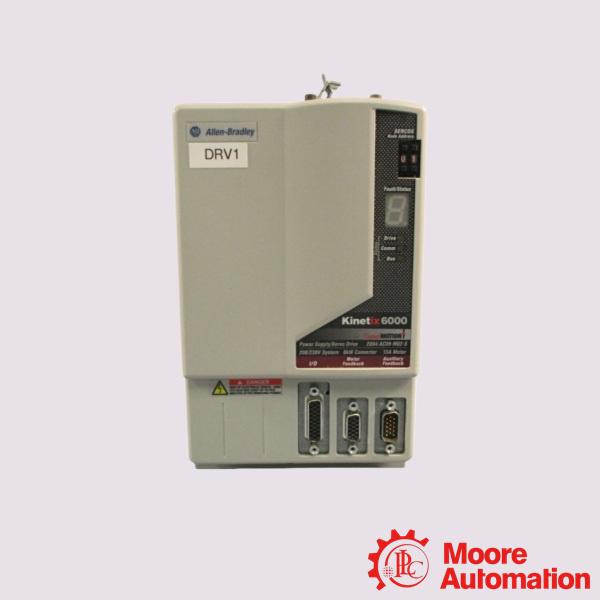

The 2094-AC09-M02-S is a Kinetix 6000 Integrated Axis Module (IAM) with a 6 kW converter, three-phase input power, and 15 A inverter. It has a frequency of 47 to 63 Hertz, an AC input voltage of 195 to 264 Volts RMS, 20 milliseconds line loss ride through, and a 325 Volt DC nominal bus output voltage. On common-bus follower, the DC input current is 19 A and DC input voltage is 275 to 375 Volts DC. It has a main AC input current ranging from a nominal 19 Amperes RMS to a maximum inrush of 37 A (0 to pk).

The 2094-AC09-M02-S is UL-listed to U.S. and Canadian safety standards and is CE-compliant. It is an essential system component of the Kinetix 6000 Multi-axis Servo Drives. The 200 Volt-class 2094-AC09-M02-S IAM Servo Drive features built-in, ISO 13849-1 PLe/SIL3-certified safe torque-off functionality that prevents drive restarts whenever the safety circuit is tripped.

Application:

Packaging industry: High-speed packaging machinery, such as sealing machines, packing machines and labeling systems.
Material handling: Automated vertical storage warehouses, conveyor systems and sorting equipment.
Processing and conversion: Equipment for winding, unwinding and cutting of paper, film or textiles.
Life sciences: Automation equipment for pharmaceutical production and experiments.

Frequently Asked Questions (FAQ)

Q:What is the nominal input current of the PLC 2094-AC09-M02-S Servo Drive?
A:The PLC 2094-AC09-M02-S Servo Drive has a nominal three-phase input current of 19 A.

Q:What shock and vibration ratings does the PLC 2094-AC09-M02-S have?
A:The PLC 2094-AC09-M02-S Servo Drive withstands up to 15 g shock acceleration (11 ms) and 2 m/s² vibration.

Q:What is the internal shunt power rating of the PLC 2094-AC09-M02-S Servo Drive?
A:The PLC 2094-AC09-M02-S Servo Drive has a continuous internal shunt power rating of 50 W.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 2094-AC09-M02-S
Input Voltage (3-phase, max RMS)	264 VAC max (RMS)
Input Frequency (Nominal)	50/60 Hz
Input Current (Three-phase, Nominal)	19 A
Bus Voltage (Nominal)	325 VDC
Line Loss Ride Through Time	20 ms
Internal Shunt Power (Continuous)	50 W
Operating Temperature	0°C to 50°C
Storage Temperature	-50°C to 70°C
Relative Humidity	5% RH to 95% RH
Shock Acceleration (Maximum)	15 g
Shock Duration (Maximum)	11 ms
Vibration Acceleration (Maximum)	2 m/s²
