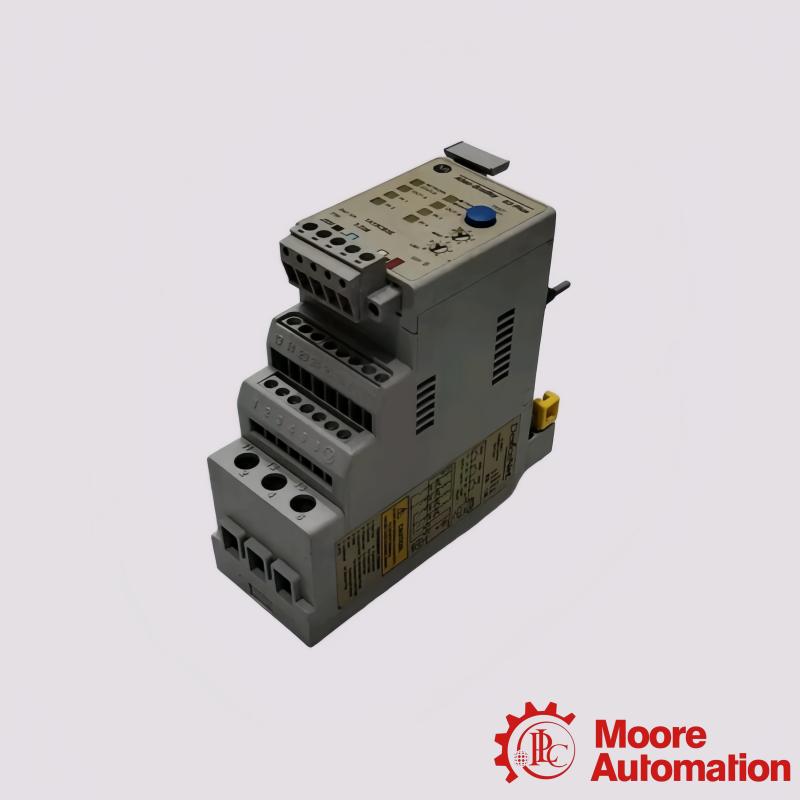

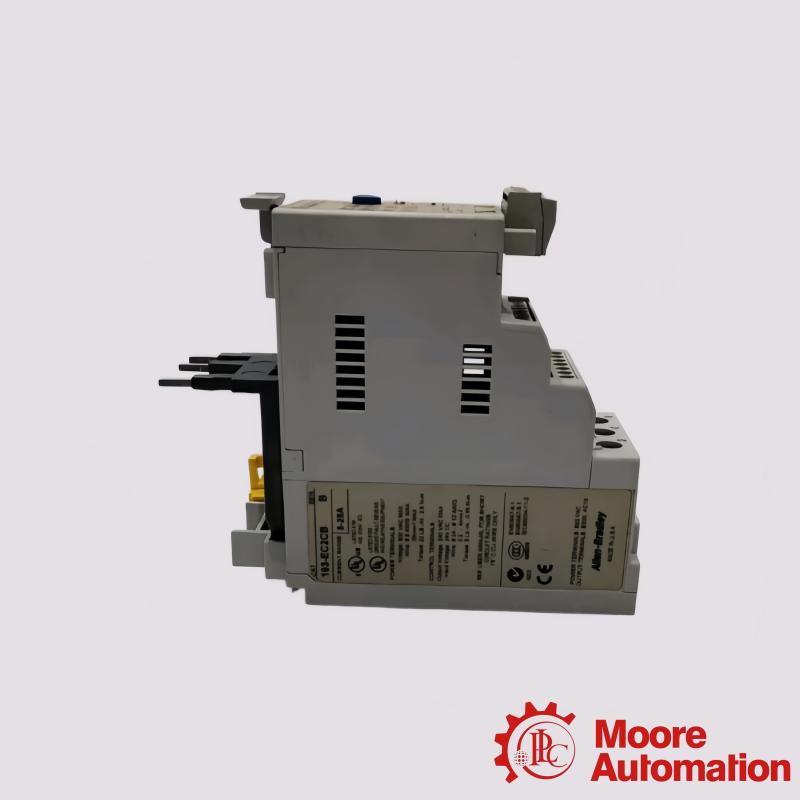

193-EC2CB | PLC Electronic Overload Relay

Description

The 193-EC2CB is a electronic overload relay within the E3 Plus series with a rated operational current range of 1.0 to 5.0 A. This unit operates on a 24 V DC control voltage via the DeviceNet network and includes integrated protection against overload, phase loss, and ground fault conditions.It directly to Bulletin 100-C09 through 100-C23 contactors and supplies real-time diagnostic data alongside operational power parameters. The device maintains an IP20 protection class and supports advanced programming of trip classes and reset modes through RSNetWorx or Studio 5000 software.

Parameter

Adjustable current range: 1.0–5.0 A
Communication protocol: DeviceNet
Control voltage: 24 V DC (network powered)
Main circuit voltage rated value: 600 V AC
Trip class: Programmable Class 5...30
Integrated I/O: 2 Inputs / 1 Output
Ground fault protection: Included as standard

Frequently asked questions

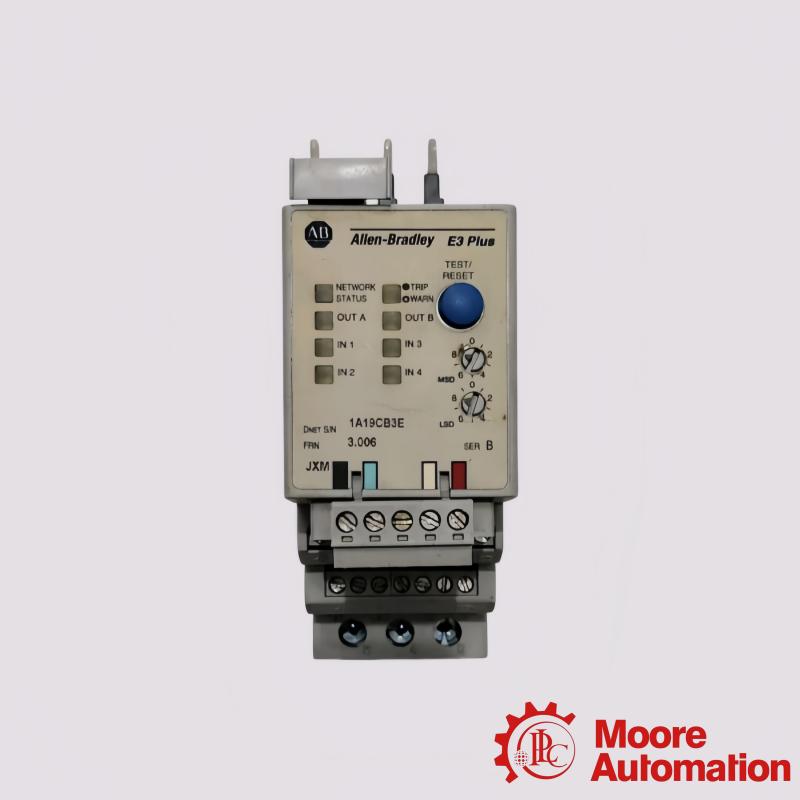

What diagnostic LED indicators are present on the 193-EC2CB?
It features LEDs for Network Status (NET) and Module Status (MOD) to assist in local troubleshooting.

Does 193-EC2CB provide ground fault protection?
Yes, it includes integrated zero-sequence ground fault sensing as a standard protective feature.

Is 193-EC2CB manual or automatic reset available?
Yes, it  supports both manual and automatic reset modes, which can be configured remotely .

Application areas:
Intelligent Motor Control Center (MCC): Centralized motor management with remote diagnostics and simplified cabinet cabling.

Automated Conveyor Systems: Enables real-time load monitoring and preventative maintenance through precise current and power feedback.

Water Treatment and Wastewater Treatment: Provides protection for small pump motors, integrating ground fault detection and network connectivity.

Critical process control: Monitoring small inductive loads in chemical and pharmaceutical plants that require high-reliability protection.
