1771-DS | PLC Latching Input Module

in stock#

Brand/ Manufacturer:
PLC
Dimensions:
2.5 cm x 25.4 cm x 14.7 cm
Weight:
0.5 kg
Country of Origin: :
USA
Description:

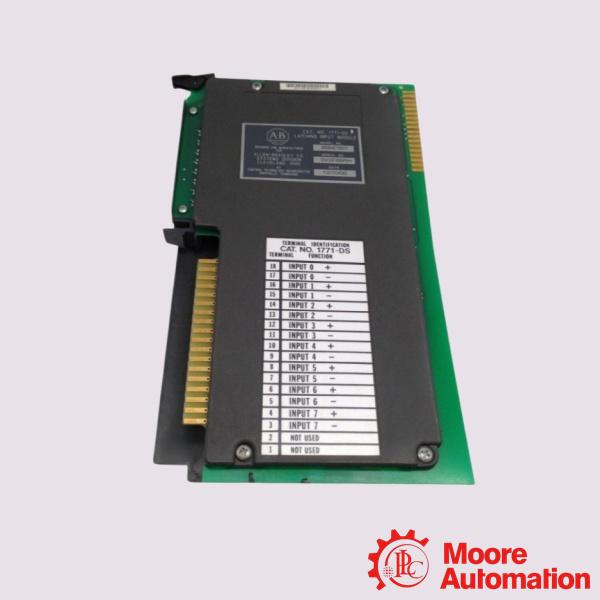

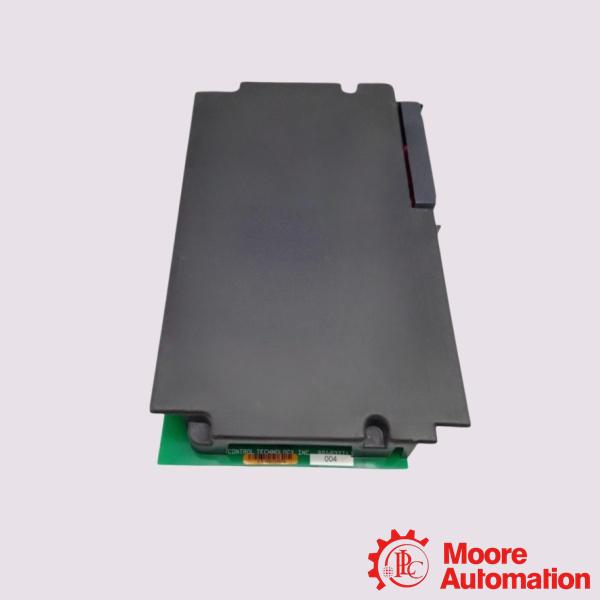

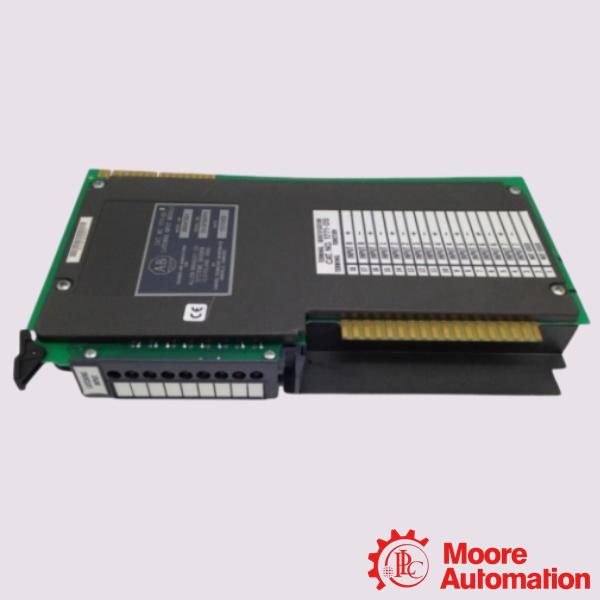

PLC 1771-DS Latching Input Module

Inquiry now

Mfr. Part Number:	1771-DS

Manufacturer:	PLC

Description:	PLC 1771-DS Latching Input Module

Full Description:	The PLC 1771-DS is a latching module with an input of 10-27V DC

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for PLC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:
The PLC 1771-DS is a latching module with an input of 10-27V DC. It latches and detects pulses with a duration of 0.1-5.0 ms. Using an input terminal, the module discovers pulses and puts a bit within a corresponding image address table during the next I/O scan. The 1771-DS module responds to pulses by using an optical sensor which has an isolated gate output and an isolated pulse output.

The PLC 1771-DS provides two operating modes for each input: independent operation or paired operation. In independent mode, each input responds individually to pulses. In paired mode, the module can be configured to respond to a specific pulse or to a gate signal, offering flexibility for a wide range of automation applications.

Application:

High-speed packaging and filling plants: Photoelectric switches triggered by the movement of fast-moving objects on bottle packaging lines.
Printing and paper industry: Detecting the edges of paper, color marks, or high-speed rotating encoders.
Metal processing and mechanical manufacturing: Capturing the contact between the tool and the workpiece in precision stamping or cutting machines.
Material conveying and logistics systems: Sensor-triggered signals for capturing fast-moving packages.

Frequently Asked Questions (FAQ)

Q:Does PLC 1771-DS provide electrical isolation?
A:Yes, the PLC 1771-DS Latching Input Module provides 1500 V opto-electrical isolation, enhancing system safety and noise immunity.

Q:How many input points does the 1771-DS module support, and what is the voltage?
A:The 1771-DS features 8 independent latching input points. It typically operates at a nominal input voltage of 12-24V DC, making it compatible with a wide range of industrial proximity sensors and high-speed switches.

Q:What shipping methods are used for 1771-DS?
A:Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameters	Part Number：1771-DS
Number of Inputs	8
Reverse Voltage Protection	240 V DC max
Maximum Off-State Current	1 mA at 4 V DC
Nominal Input Current	20 mA at 27 V DC
Opto Electrical Isolation	1500 V
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative Humidity	5 to 95% (without condensation)
Backplane Current	375 mA
