1756-CNBR/D | ControlNet Communications Bridge Series D

in stock#

Brand/ Manufacturer:
Dimensions:
2.5 cm x 15.2 cm x 15.2 cm
Weight:
0.2 kg
Country of Origin: :
USA
Description:

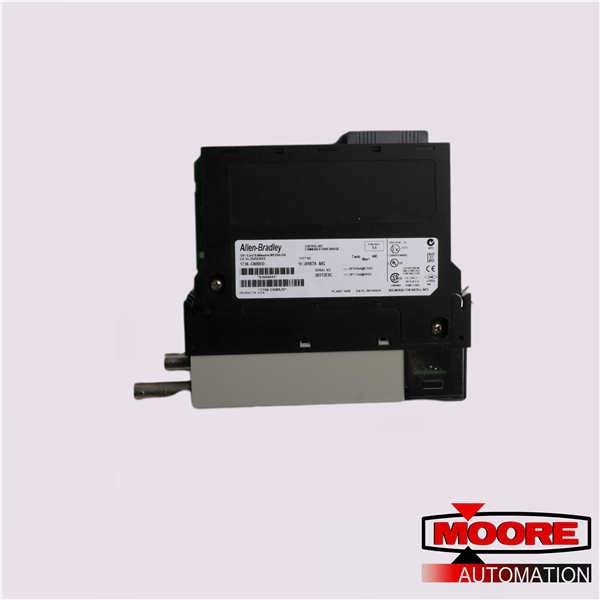

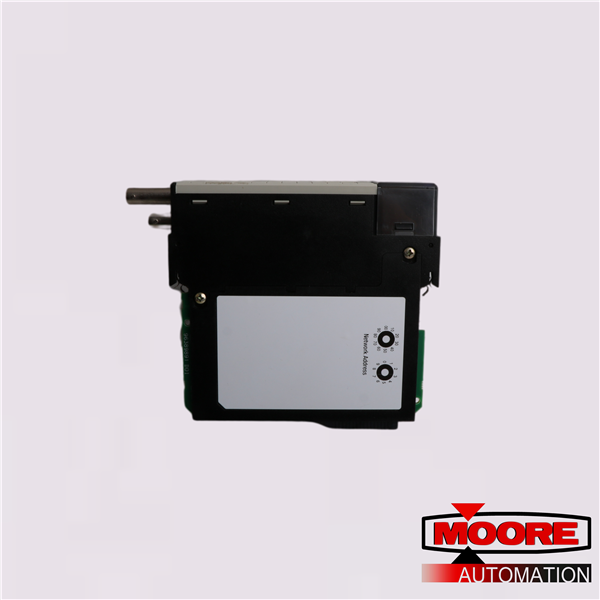

1756-CNBR/D ControlNet Communications Bridge Series D

Inquiry now

Mfr. Part Number:	1756-CNBR/D

Manufacturer:

Description:	1756-CNBR/D ControlNet Communications Bridge Series D

Full Description:	1756-CNBR/D ControlNet Communications Bridge Series D This module is a ControlNet Bridge communication module that features Two (2) ControlNet ports supporting simplex and redundant ControlNet network.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 1756-CNBR is a ControlLogix communication module. This module is a ControlNet Bridge communication module that features Two (2) ControlNet ports supporting simplex and redundant ControlNet network. This module also has 1 Network Access Protocol (NAP) having a physical interface of RJ-45 8-pin with shield. It supports communication rate of 5Mbps and 40-48 ControlNet logical connections.

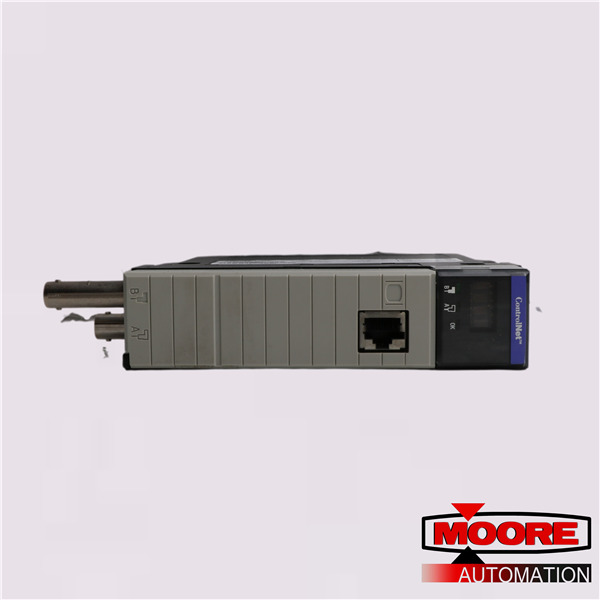

The 1756-CNBR, or ControlNet Bridge Redundancy, is an interface module used for communicating within a ControlNet Network. It is the same as the 1756-CNB but the biggest difference is that the 1756-CNBR has an additional ControlNet port, which will support redundant media. This module has 2 ControlNet BNC port while the 1756-CNB only has one, although both of them have 1 ControlNet RJ45 port.

Like the non-redundant module, the 1756-CNBR also controls scheduled data in conjunction to the Logix5550 Controller and bridges unscheduled data between the ControlLogix backplane and the ControlNet Network.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Automation
Location	Chassis
Module Type	ControlNet communication module
Series	ControlLogix
Part Number/Catalog No.	1756-CNBR
Brand
No. of Ports	Two (2) ControlNet ports
Backplane Current (5.1 Volts DC)	970 milliamps
Backplane Current (24 Volts DC)	1.7 milliamps
Isolation Voltage	30 Volts Continuous
Power Dissipation (Max)	5.5 Watts
Enclosure	Open Type
Communication Cable	1786-RG6 quad shield RG6 coaxial cable
Dimensions	5.51 x 4.41 x 5.71 inches
