in stock#
Brand/ Manufacturer:
PLCDimensions:
6x16.7x18.5cmWeight:
1.2 kgCountry of Origin: :
USADescription:

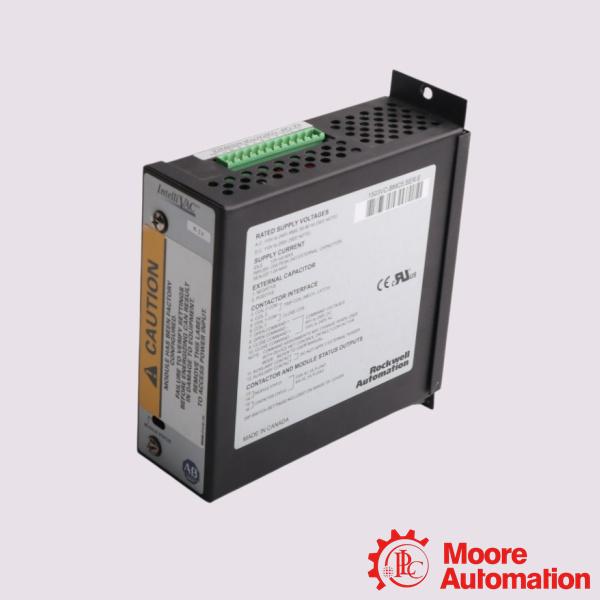

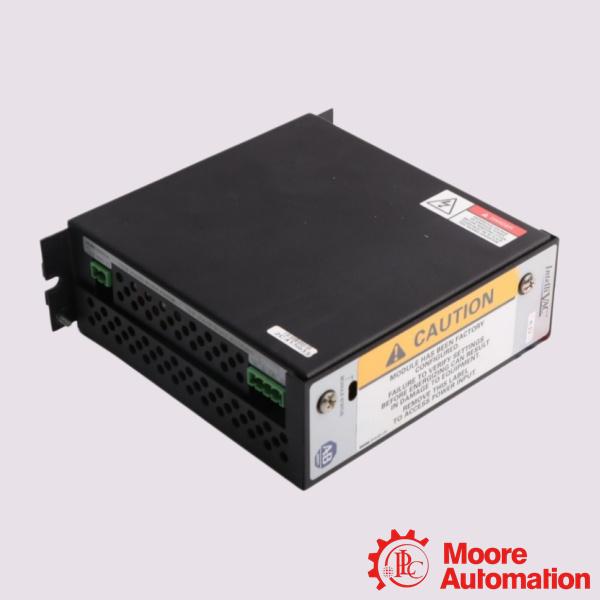

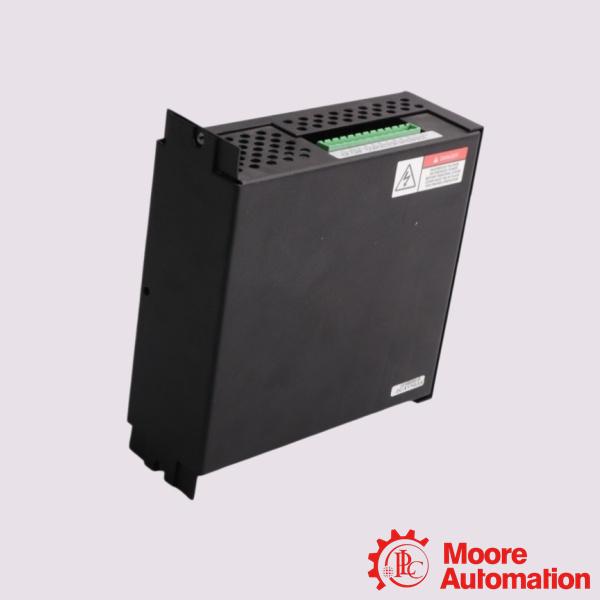

PLC 1503VC-BMC5-MC1 Contactor Control Module
| Mfr. Part Number: |
1503VC-BMC5-MC1 |
| Manufacturer: |
PLC |
| Description: | PLC 1503VC-BMC5-MC1 Contactor Control Module |
| Full Description: |
|
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for PLC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The PLC 1503VC-BMC5-MC1 Contactor Control Module may be used to control Bulletin 1502 400 and 800 Amp vacuum contactors. Both electrically held and mechanically latched contactor types can be controlled with IntelliVAC. The module is an operational shock rating of 15 g peak for 11 ms, ensuring resistance to mechanical impacts and switching disturbances during operation.
The PLC 1503VC-BMC5-MC1 supports an operational vibration range of 10 to 57 Hz, making it suitable for installations exposed to continuous mechanical vibration. It is also for high-altitude applications, supporting installation at elevations from -1000 to 5000 meters.
Application:
Oil and gas: crude oil transfer pumps, pipeline pressurizers, main gas compressors and large-scale fans in refineries.
Water treatment and municipal engineering: large urban water plants, large sewage treatment plants, flood control pumping stations, desalination plants' high-pressure water supply pumps and long-distance pumping stations.
Electricity and large-scale energy generation: induced draft fans, supply fans, circulating water pumps and main contactor circuit control of large boilers in thermal power plants and nuclear power plants.
Ship and marine engineering: propeller motors of large ocean-going ships or offshore drilling platforms, high-voltage distribution boards.
Frequently Asked Questions (FAQ)
Q:What is the vibration rating of 1503VC-BMC5-MC1?
A:It supports vibration from 10 to 57 Hz during operation.
Q:Does 1503VC-BMC5-MC1 support different load capacities?
A:Yes, it supports 400A and 800A contactor loads.
Q:Does the PLC 1503VC-BMC5-MC1 support different contactor types?
A:Yes, it supports both electrically held and mechanically latched contactors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number: 1503VC-BMC5-MC1 |
|
Operating Temperature |
0 to 60 °C |
|
Non-Operating Temperature |
-40 to 85 °C |
|
Altitude |
-1000 to 5000 meters |
|
Humidity |
95% non-condensing |
|
Shock (Operational) |
15 g peak, 11 ms |
|
Vibration (Operational) |
10 to 57 Hz |
|
Inrush Current |
400 / 800 Amps |
|
Standards and Approvals |
CE, cULus, CSA, IEC |
|
