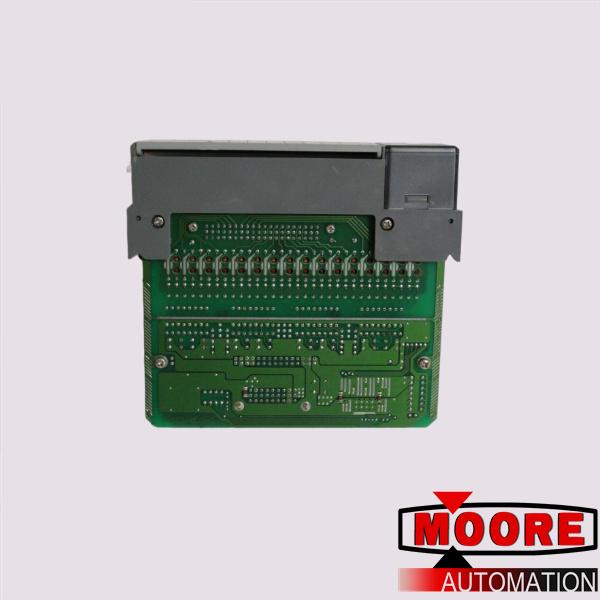

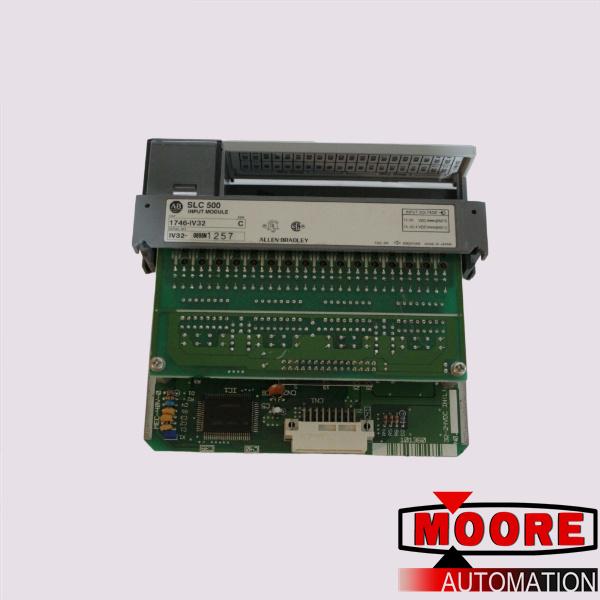

1746-IV32 single slot module

Brand/ Manufacturer:
Dimensions:
12.7cm*5.1cm*15.2cm
Weight:
0.3kg
Country of Origin: :
United States
Description:
Trusted TMR 24/48Vdc Digital Output

Inquiry now

Mfr. Part Number:	1746-IV32

Manufacturer:

Description:	The 1746-IV32 is an SLC 500 Discrete Input module. This module mainly features thirty- two (32) 24 Volt DC input channels in four (4) groups of eight (8) channels each. It has a backplane current consumption of 0.050 Amperes @ 5 Volts DC. IN STOCK READY TO SHIP

Full Description:	It is a single slot module that directly installs to any SLC 500 chassis.The 1746-IV32 is an SLC 500 32 Channel Digital Input Module by . It is a 24V DC current sourcing input module with 32 inputs and 8 points per fused common that is fixed in any slot of the SLC 500 chassis.

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

The 1746-IV32 is an SLC 500 Discrete Input module. This module mainly features thirty-two (32) 24 Volt DC input channels in four (4) groups of eight (8) channels each. It has a backplane current consumption of 0.050 Amperes @ 5 Volts DC. It is a single slot module that directly installs to any SLC 500 chassis.

The 1746-IV32 is an SLC 500 32 Channel Digital Input Module by . It is a 24V DC current sourcing input module with 32 inputs and 8 points per fused common that is fixed in any slot of the SLC 500 chassis. It has an operating voltage range between 15 and 30V DC at 50 °C and a range of 15 and 26.4V DC at 60 °C and it has a backplane draw current of 0.05A at 5V DC.

The 1746-IV32 has a non-replaceable electronically-fused common with the fuse rated at 2.5A and it provides a 60s 1500V AC-tested isolation from the backplane. The signal delay on the input points has a maximum delay time of 3ms for both the ON and OFF states and the module has a maximum OFF-state current of 1.5mA.

It also has a minimum ON-state voltage of 15V DC and a maximum OFF-state voltage of 5V DC. It has a nominal input current of 5.1mA per point and the maximum heat dissipation on each point is 0.2W with an aggregate of 6.65W for the whole module. The 1746-IV32 is CE, CSA, and UL-certified and it provides NEMA standard ICS 2-230 Noise immunity.

It is designed and tested to withstand a working vibration of 2.5G at 57-200Hz with a tested peak displacement of 0.015 inches and maintains an optimal function even with an operational shock of 30G. It has a working temperature between 0 and 60 Â°C at a relative humidity range of 5-95%.
