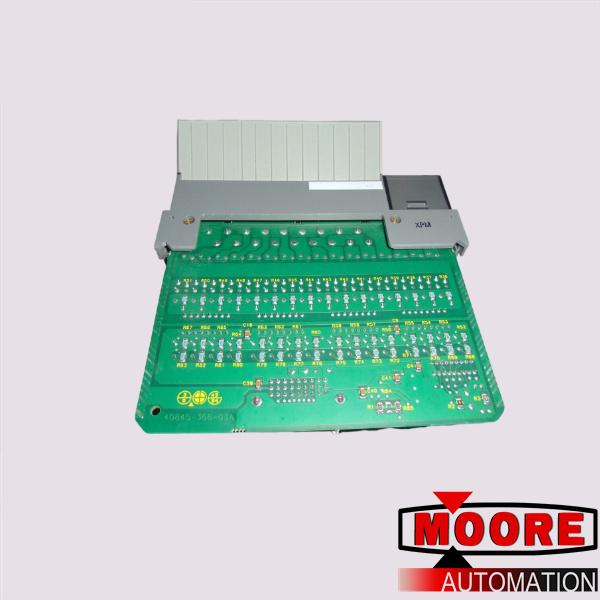

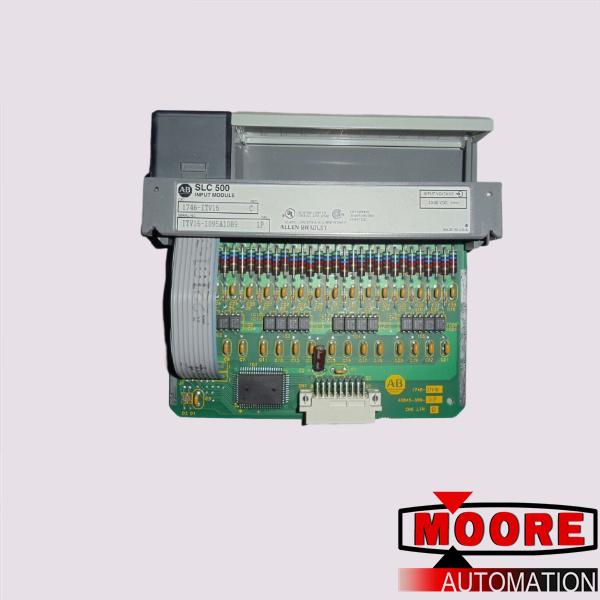

1746-ITV16 DC sourcing input module

Brand/ Manufacturer:
Dimensions:
13cm*5cm*15cm
Weight:
0.25kg
Country of Origin: :
United States
Description:
Trusted TMR 24/48Vdc Digital Output

Inquiry now

Mfr. Part Number:	1746-ITV16

Manufacturer:

Description:	The 1746-ITV16 is a SLC 500 sourcing discrete input module. This module has Sixteen (16) fast response channel that accepts a nominal input voltage of 24VDC with operating voltage range of 10-30VDC. It has One (1) group of 16 channels with backplane current draw of 0.085 A

Full Description:	It has maximum off-state voltage of 5VDC with nominal input current of 8 mA at 24VDC. Each channel of this module has maximum signal delay of 0.30 ms for ON transition and 0.50 ms for OFF transition.

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Brand
Nominal input current	8 mA at 24VDC
Off-state current, max	1.0 mA
Off-state Voltage, max	5VDC
Signal delay, max.	On = 0.3 ms; Off = 0.5 ms
Backplane current consumption	0.085 A
Wiring configuration	Source wiring configuration
Input Voltage Range	10-30 VDC
Nom Input Voltage	24VDC
Product Family:	PowerFlex 400

The 1746-ITV16 is an SLC 500 discrete input module. This module is specifically a high-speed input module that operates at a voltage range of 10-30 VDC and nominal input voltage of 24VDC. It supports source wiring configuration and ideally used with signaling devices that operates with high frequency, binary or ON/OFF switching such as encoders, totalizers, data loggers, counters and similar devices. It may be used in position monitoring and control of conveyors.

The 1746-ITV16 has a fast ON and OFF signal transition. Specifically, the ON signal delay has a maximum delay of 0.3 ms while the OFF delay has a transition time of 0.50 ms however, the typical signal delay for ON transition is 0.1 ms while the delay for OFF transition is .25 ms at 24VDC operation.
