Brand/ Manufacturer:
Dimensions:
17.5cm*8cm*15.2cmWeight:
0.4kgCountry of Origin: :
United StatesDescription:
Controller
|
Mfr. Part Number: |
OEMAX NX-MWLINK |
|
|
|
|
Manufacturer: |
|
|
|
|
|
Description: |
OEMAX NX-MWLINK | |Controller New & Original in Factory Packing
|
|
|
|
|
Full Description: |

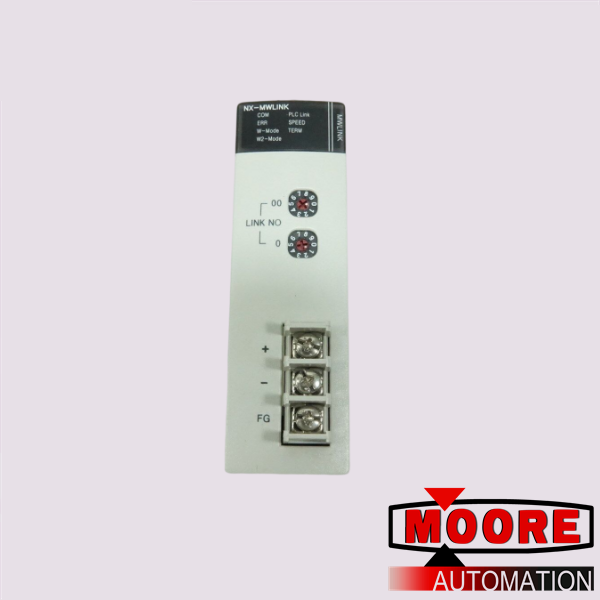

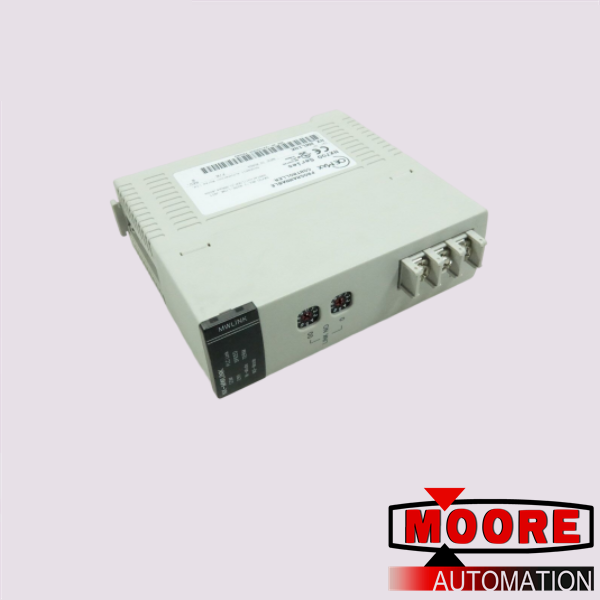

OEMAX NX-MWLINK Automation PLC |
plcsale@mooreplc.com
+ 86 18030235313
dddemi33
2851195473
|
Temperature Operating |
0 °C to +55 °C (32 °F to 131 °F) |
|
Temperature Storage |
25 °C to +70 °C (-13 °F to 158 °F) |
|
Humidity Operating |
30 to 85% RH (Non-condensing) |
|
Humidity Storage |
30 to 85% RH (Non-condensing) |
|
Withstand voltage |
1500V AC for 1 minute between I/O terminal (AC) and frame ground
(power unit) |
|
Withstand Voltage |
500V AC for 1 minute between I/O terminal (DC) and frame ground
(power unit) |
|
Isolation resistance |
100 MΩ or more at 500 mega V DC between I/O terminal (DC) and frame
ground (power unit) |
|
Vibration immunity |
10 to 55 Hz, 1 cycle/minute: double amplitude of 0.75mm, 10 minutes on
3 axis (X, Y, Z) |
|
Shock immunity |
Peak acceleration and duration 15g/11ms, 3 times in each X, Y, Z
direction |
|
Noise immunity |
1500Vp-p with 50ns to 1 µs pulse width (generated by noise simulator) |
| Communication specifications |
Token bus type |
|
Transmission method |
BASE-BAND type |
|
Transmission speed |
500k bps |
|
Transmission distance |
Max. total length 800m |
|
Number of connectio stations |
Max. 16 stations |
|
Transmission error check |
CRC (Cyclic Redundancy Check) method |
|
Synchronization method |
Start-stop synchronization |
|
Interface |
RS-485 type |
|
Transmission path |
Twisted-pair cable |
|
Function/Number of stations |
Max. 16 stations |
|
