MPL-B330P-SJ74AA | Servo motor

in stock#

Brand/ Manufacturer:
Dimensions:
2.2 cm x 12.4 cm x 12.6 cm
Weight:
0.1 kg
Country of Origin: :
USA
Description:

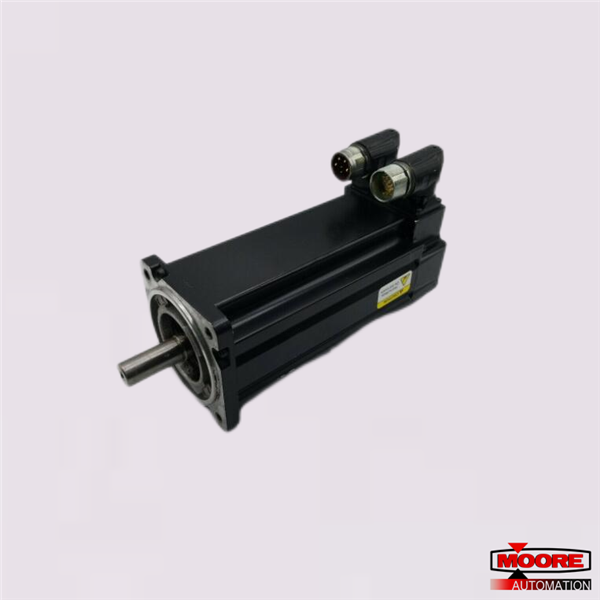

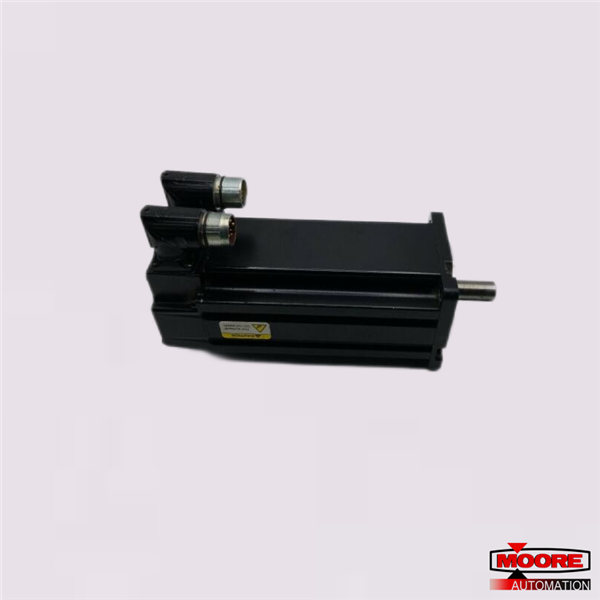

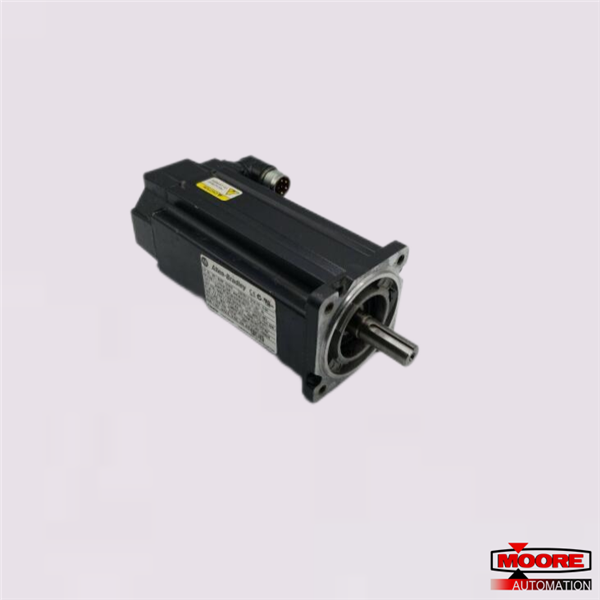

MPL-B330P-SJ74AA Servo motor

Inquiry now

Mfr. Part Number:	MPL-B330P-SJ74AA

Manufacturer:

Description:	MPL-B330P-SJ74AA Servo motor

Full Description:	MPL-B330P-SJ74AA Servo motor The MPL-B330P-SJ74AA is an Servo motor that is part of the Low inertia MPL series. This servo motor is a 400 V class Brushless AC synchronous motor. It has 100 mm frame with magnet stack length of 76.2 mm or 3.0 inches and 5000 rpm rated speed.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for PROSOFT. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The MPL-B330P-SJ74AA is an Servo motor that is part of the Low inertia MPL series. This servo motor is a 400 V class Brushless AC synchronous motor. It has 100 mm frame with magnet stack length of 76.2 mm or 3.0 inches and 5000 rpm rated speed. It uses a right-angle Circular (SpeedTec) DIN connector, 180degrees rotatable with integral 1024 sin / cos single-turn absolute encoder. It comes with a shaft key, without a shaft seal and an integral 24 VDC holding brake.
The MPL-B330P-SJ74AA is drive by a single servo drive. Being part of the Kinetix system, it may be coupled to a variety of servo drives which are Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000, and Kinetix 7000. For feedback of the motor’s rotation in relation to the current position, the MPL-B330P-SJ74AA is provided with a 1024 sin/cos single turn high resolution absolute encoder. This encoder supports Hiperface (Stegmann) protocol, eliminating traditional communication between the drive and the motor instead, exchanges data via high-speed digital communication. Additionally, with the Smart Motor Technology, this motor can be identified over the network as it is able to retain this information via the motor’s on-board memory.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Automation
Brand
Part Number/Catalog No.	MPL-B330P-SJ74AA
Series	Premium permanent magnet rotary servo motor
Manufacturer	Automation
Series Type	Low-inertia
Brand
Voltage Class	400 Volts
Product Family	MP Series Low Inertia servo motors
Frame Size	3 = 100 mm
Voltage	400 V
Magnetic Stack Length	3 inches
Continuous Stall Torque	4.18 N-m
Rated Speed	5000 rpm
Continuous Current (0-pk)	6.1 A
Feedback	Single-turn high-resolution encoder
Rated Power	1.8 kW
Shaft Key/Seal	Shaft key/no shaft seal
Rotor inertia	0.00012 kg-m2 (0.0010 lb-in.-s2)
Connectors	Circular DIN, right angle, 180 degrees rotatable
Voltage input	460 VAC, 3-Phase
Brake	24 Volts DC brake
Maximum operating speed	5000 rpm
Mounting Flange	IEC metric
Encoder	1024 sin/cos high-resolution single-turn absolute encoder
