FC-PDB-IO05 | Honeywel Power Distribution Board

in stock#

Brand/ Manufacturer:
Honeywell
Dimensions:
3.2 cm x 12.7 cm x 12.7 cm
Weight:
0.2kg
Country of Origin: :
USA
Description:
Honeywell FC-PDB-IO05 Power Distribution Board

Inquiry now

Mfr. Part Number:	FC-PDB-IO05

Manufacturer:	Honeywell

Description:	Honeywell FC-PDB-IO05 Power Distribution Board

Full Description:	Honeywell FS-IOBUS-CPIO6 I/O Bus Control Chassis

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: plcinfo@mooreplc.com : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Honeywell . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

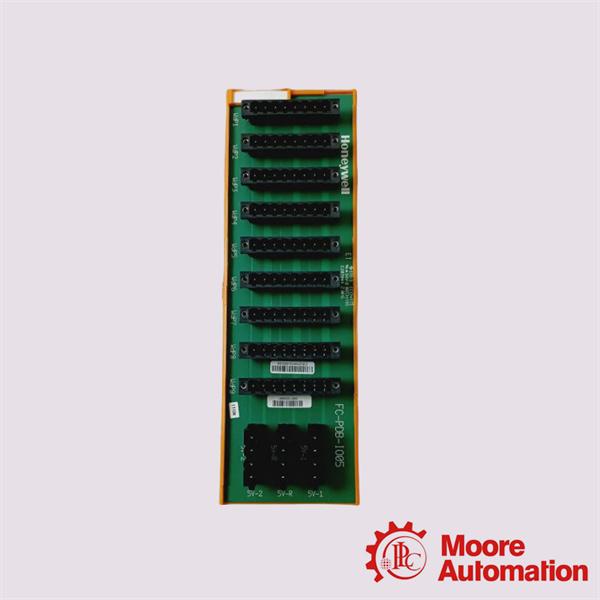

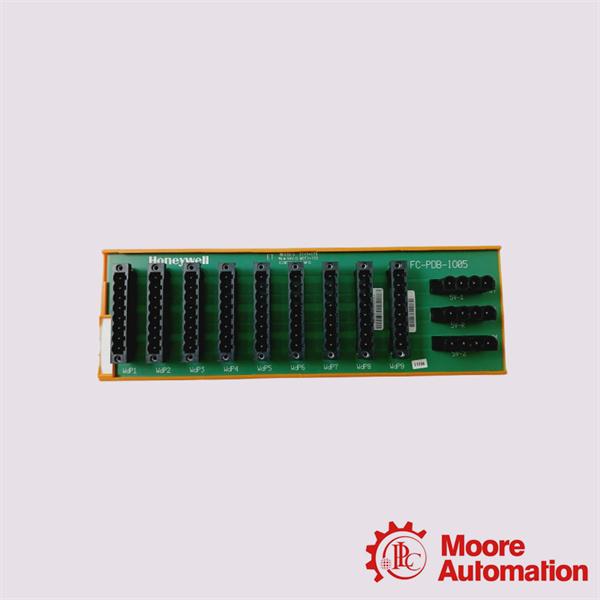

The PDB-IO05 power distribution board for extension IO cabinets is a board that enables the distributionof the 5V and watchdog signals of the controller cabinet to the IO chassis in an IO extension cabinet.The below figure shows the PDB-IO05 with its 9+3 connectors.

Power distribution cables from the controller cabinet (PDC-IO05-1 and PDC-IO05-2, see PDC-IO05-x) areplaced on the three (4-pole) connectors.The cable on connector ‘5V-1’ provides 0V (ground), the watchdog of CP1 and the 5V of CP1.The cable on connector ‘5V-2’ provides 0V (ground), the watchdog of CP2 and the 5V of CP2.
The cable on connector ‘5V-R’ carries 0V (ground), the ‘second’ watchdog output of CP1 and CP2 (for nonredundant IO see Figure 8-6) and the (redundant) 5V of CP1 and CP2 (see Figure 6-5).Power Distribution Cables (see PDC-IOS05 or PDC-IOR05) transfer the 5V and watchdog signal(s) to theIO chassis.The cable on WdP1 should go to the first (highest) IO chassis.Cables on WdP2 to WdP9 go to the next IO chassis (as far as these are available).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General
Manufacturers	Honeywell
Brand	Honeywell
Part Number/Catalog No.	FC-PDB-IO05
Status	In stock
