in stock#
Brand/ Manufacturer:
HoneywellDimensions:
9x8.4x3.1cmWeight:
0.24 kgCountry of Origin: :
USADescription:

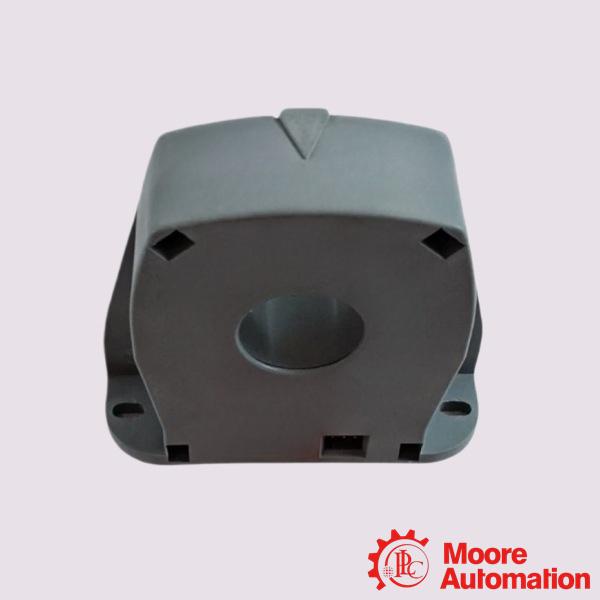

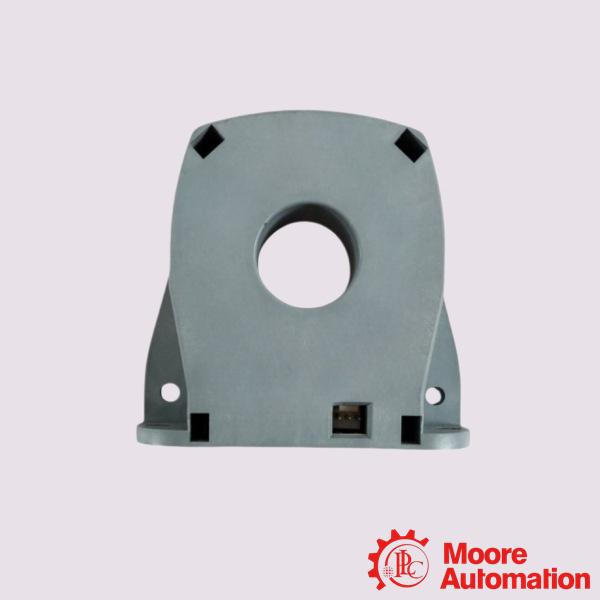

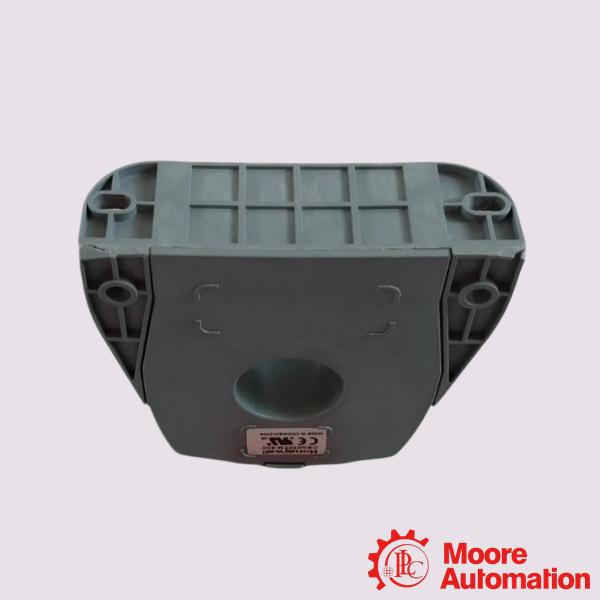

Honeywell CSNK500M-600 Closed Loop Current Transducer
| Mfr. Part Number: |
CSNK500M-600 |
| Manufacturer: |
Honeywell |
| Description: |
Honeywell CSNK500M-600 Closed Loop Current Transducer |
| Full Description: |
|
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Honeywell. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Honeywell CSNK500M-600 is a Closed Loop Current Transducer based on the principle of magnetic compensation. It provides electronic measurement of DC, AC or pulsed currents, and their combinations, with galvanic isolation between the primary (high current) and secondary circuits.
The Honeywell CSNK500M-600 delivers a very fast response time of better than 1 µs, enabling highly accurate real-time current tracking in dynamic electrical systems.The device also features a wide bandwidth from DC to 100 kHz, ensuring accurate measurement across both low-frequency and high-frequency current components.
Application:
Electric power industry: Frequency converters, rectifiers and uninterruptible power supply systems.
Motor drive and control: Motor control and overcurrent protection in speed drives.
New energy systems: Monitoring current changes in photovoltaic inverters and wind turbines.
Industrial automation: Overcurrent detection and feedback control for robots, heavy machinery and automated production lines.
Frequently Asked Questions (FAQ)
Q:What is the nominal current of Honeywell CSNK500M-600?
A:The nominal current of the Honeywell CSNK500M-600 is 500 A rms.
Q:What is the response time of CSNK500M-600?
A:The response time is better than 1 µs.
Q:What is the bandwidth of Honeywell CSNK500M-600?
A:The bandwidth is DC to 100 kHz.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number: CSNK500M-600 |
|
Nominal Current (In) |
500 A.t rms |
|
Nominal Analogue Output Current at 500A |
100 mA |
|
Supply Voltage |
±15 to ±18 Vdc (±5%) |
|
Galvanic Isolation |
6 kV rms / 50 Hz / 1 minute |
|
Response Time |
better than 1µs |
|
Bandwidth |
DC to 100 kHz |
|
Operating Temperature |
-40°C to +85°C |
|
Storage Temperature |
-40°C to +90°C |
|
Current Consumption |
20 mA plus output current |
|
Secondary Internal Resistance (at +70°C) |
50 ohm |
|
