CC-TAIM01 51305959-175 | HONEYWELL low level mux module

Product Describe:

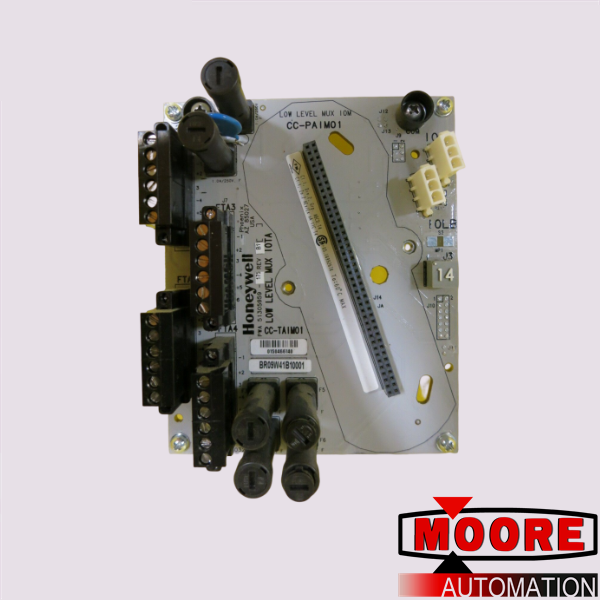

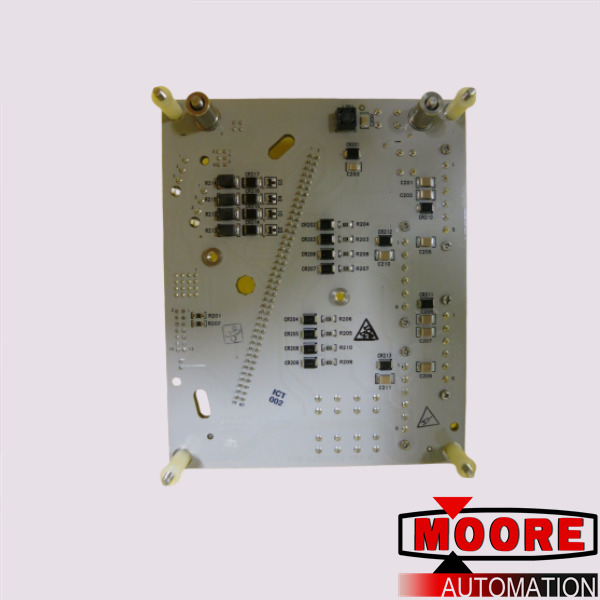

Honeywell CC-TAIM01 51305959-175 Low Level Analog Input Mux (LLMUX) IOTA Models
The Series C Low Level Mux IOTA board is represented by the following information and graphics. To access the parts information for the:
• Module
• IOTA
• Connector block assembly, and
• Fuses associated with this board and module, refer to Low Level Analog Input in the Recommended Spare Parts section.

C300 controller module and IOTA replacement
1. Insert and thread the four mounting screws only half-way to attach the IOTA board to the channel. Do not tighten.
2. Tighten the four mounting screws securing the IOTA board to the channel.
3. Set the Device Index address to the same address as the old IOTA using the three rotory FTE DEVICE INDEX switches.
4. Connect FTE-A and FTE-B Ethernet link cables to the RJ-45 connectors on C300 IOTA board.
5. The yellow Cat5 cable connects to the FTEA connector on the IOTA.
6. The green Cat5 cable connects to the FTEB connector on the IOTA.
7. Connect I/O Link cables to IOTA board, if present.
a Connect the gray I/O LINK cable to IOL1A and IOL1B for IOLINK 1 interface of the controller.
b Connect the violet IOLINK cable to IOL2A and IOL2B for IOLINK 2 interface of the controller.
