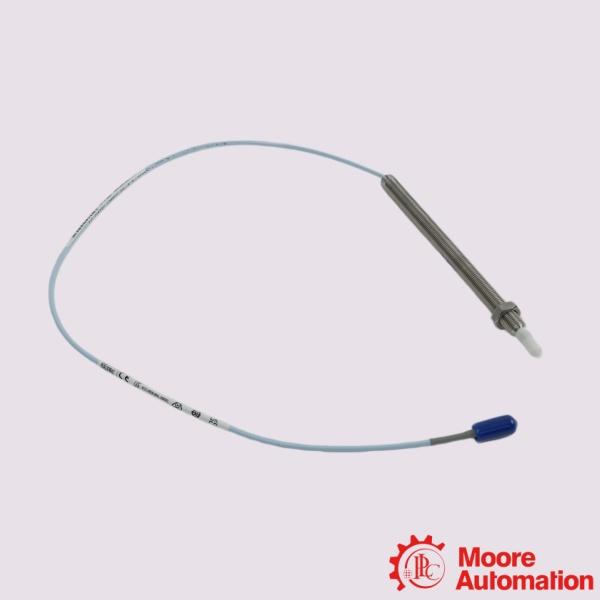

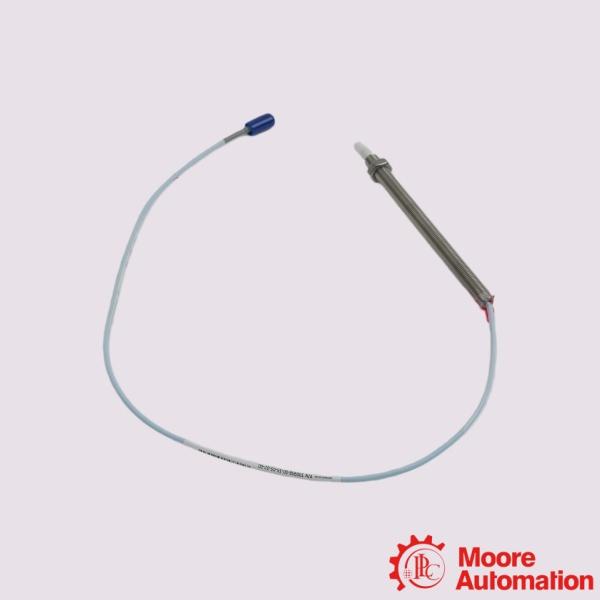

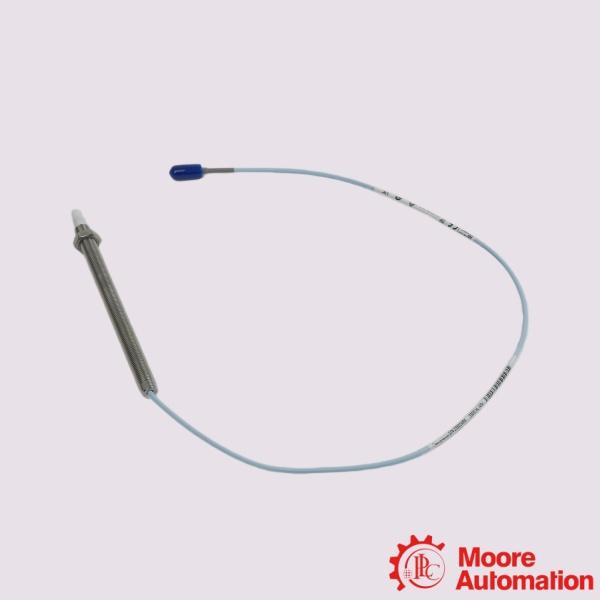

Bently Nevada 330908-00-67-10-01-00 3300 NSv Proximity Probe

Description

The Bently Nevada 330908-00-67-10-01-00 is a 3300 XL NSv proximity probe designed for machinery with limited installation space where standard eddy current probes cannot be easily installed. It features a 3/8-24 UNF threaded probe without stainless steel armor a 6.7-inch overall case length 0.0-inch unthreaded length and an integrated 1.0-meter standard cable terminated with a Miniature coaxial ClickLoc connector and connector protector for secure installation and reliable connections. As part of the 3300 XL NSv Proximity Transducer System, the probe is used with a compatible 3300 NSv extension cable and 3300 XL NSv Proximitor Sensor to provide accurate non-contact vibration and shaft position measurements for centrifugal air compressors refrigeration compressors process gas compressors and other machines with restricted mounting space.

Parameter

Model: 330908-00-67-10-01-00 3300 NSv Proximity Probe
Unthreaded Length Optionr: 00-0.0 in
Overall Case Length Option: 67- 6.7 in
Total Length Option: 10-1.0 meter (39 in)
Connector and Cable-Type Option: 01-Miniature coaxial ClickLoc connector with connector protector standard cable
Agency Approval Option: 00-Not required

Frequently asked questions

Q:What is the Bently Nevada 330908-00-67-10-01-00？
A:The Bently Nevada 330908-00-67-10-01-00 is a highly specific 3300 XL NSv Proximity Probe designed for high-precision radial vibration and axial position measurements in extremely tight mechanical spaces. It features a 3/8-24 UNF thread, a fully threaded outer casing, and is supplied without armor.

Q:What is the 330908-00-67-10-01-00 benefit of the "01" connector protector option?
A:The 01 suffix provides a specialized connector protector pre-installed over the miniature coaxial ClickLoc junction. This prevents environmental moisture, cutting fluids, or particulate debris from infiltrating the coax connection, while physically safeguarding the delicate gold-plated connection from loosening under heavy vibration.

Q:What is the 330908-00-67-10-01-00 nominal output sensitivity and range of this NSv loop?
A:The 3300 XL NSv system delivers an industry-standard 7.87 V/mm (200 mV/mil) Average Scale Factor (ASF). It has a linear range of 1.5 mm (60 mils), which begins roughly 0.25 mm (10 mils) away from the calibrated target.

Application areas

The Bently Nevada 330908-00-67-10-01-00 is optimized for confined physical spaces, deep counterbore installations, and small-diameter shafts Its application areas include:

• Oil & Gas: Gas pipeline compressor stations, LNG processing terminals, and compact rotating assets on offshore platforms.
• General Manufacturing: Automotive assembly, semiconductor manufacturing, and steel mills requiring continuous uptime on high-pressure multi-stage plant air infrastructure.
• Small Steam and Gas Turbines: High-RPM mechanical-drive turbines used to power auxiliary pumps or smaller generation packages, where standard probe setups are too bulky to install.
• High-Speed Turbo Gearboxes: Monitoring precise shaft orbit and micro-meter level vibration on high-speed pinion shafts under heavy load conditions.
