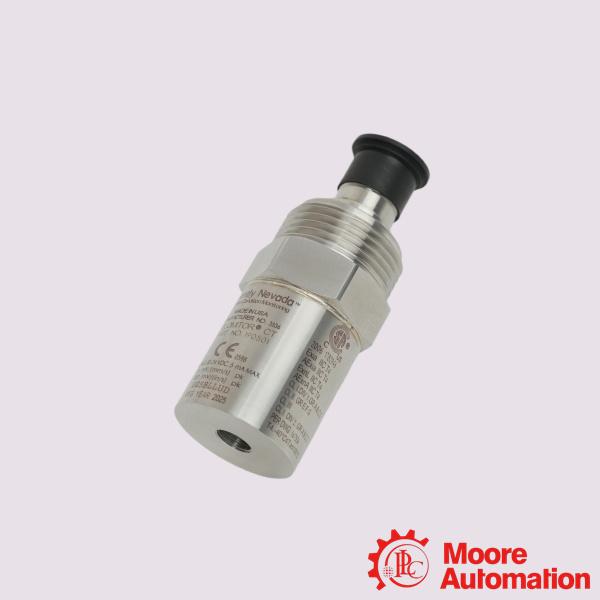

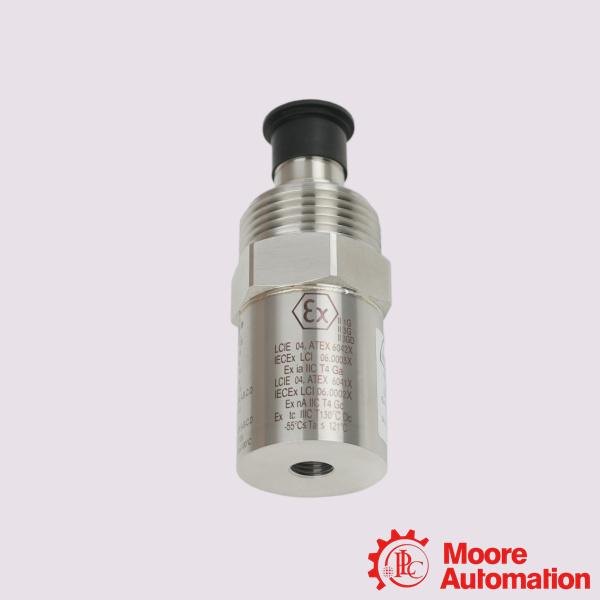

190501-21-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-21-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-21-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-21-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-21-00-01 is a specific configuration of the Velomitor CT (cooling tower) velocity sensor. This housing-mounted sensor is a low-frequency sensor primarily used to monitor structural vibrations in large, low-speed industrial fan assemblies and cooling towers operating at speeds not lower than 90 RPM.The Velomitor CT velocity sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor. It is specifically designed to measure the housing vibration velocity of cooling towers and air-cooled heat exchanger fan assemblies, which typically operate at speeds not lower than 90 rpm (typically ranging from 100 to 300 rpm). Furthermore, the Velomitor CT sensor can also measure the vibration amplitude within this frequency band, as well as the vibration frequency generated by the fan motor and reducer.

Application:

Low-Speed Water Pumps: Tracks casing vibration on vertical or horizontal high-capacity intake and treatment pumps.
Large Gearboxes: Monitors structural vibrations on high-torque, low-RPM gearboxes where high-frequency acoustic monitoring is ineffective.
Heavy-Duty Ventilation and Industrial Exhaust Fans: Deployed on slow-speed primary air supply and exhaust fans within mines, steel mills, and pulp mills.
Large Aeration Blowers and Agitators: Monitors slow-turning mixing systems and water processing aeration equipment. Its heavy-duty 316L stainless steel casing protects it against high humidity and corrosive moisture.

Frequently Asked Questions (FAQ)

Q:Is the sensor body grounded?
A:No. The sensor's internal measurement electronics are fully isolated from the stainless steel outer case to prevent ground loops.
Q:How far away can the transducer be wired?
A:It supports a maximum cable length of 305 meters (1,000 feet) of recommended Bently Nevada cable with zero signal degradation.

Q:What is the primary purpose of the Velomitor CT?
A:It measures casing vibration velocity on low-speed machines, typically ranging from 100 to 300 RPM. It is engineered to capture the distinct frequencies generated by fan blades, fan motors, and integrated gear reducers.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-21-00-01
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/2-in 14 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum.
Humidity Limit	100% condensing, non-submerged
